Special Tools and Equipment

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

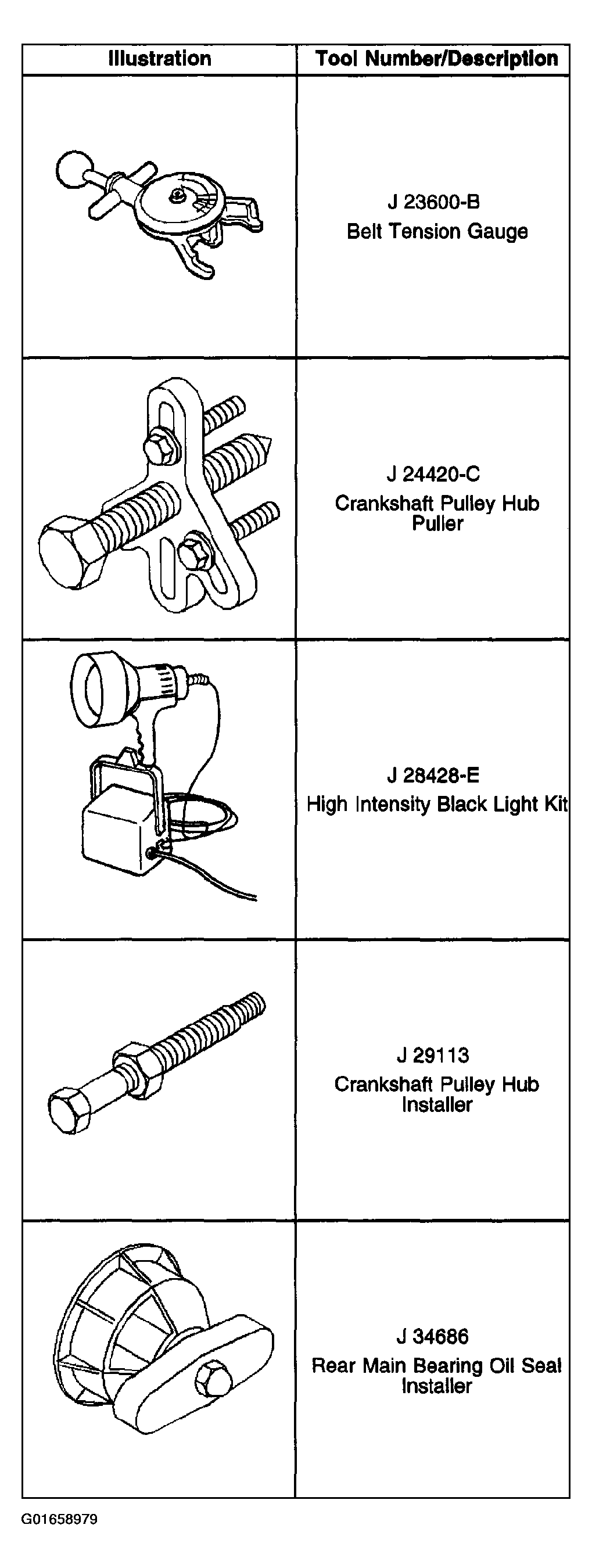

Fig 1: Special Tools & Equipment (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Special Tools & Equipment (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

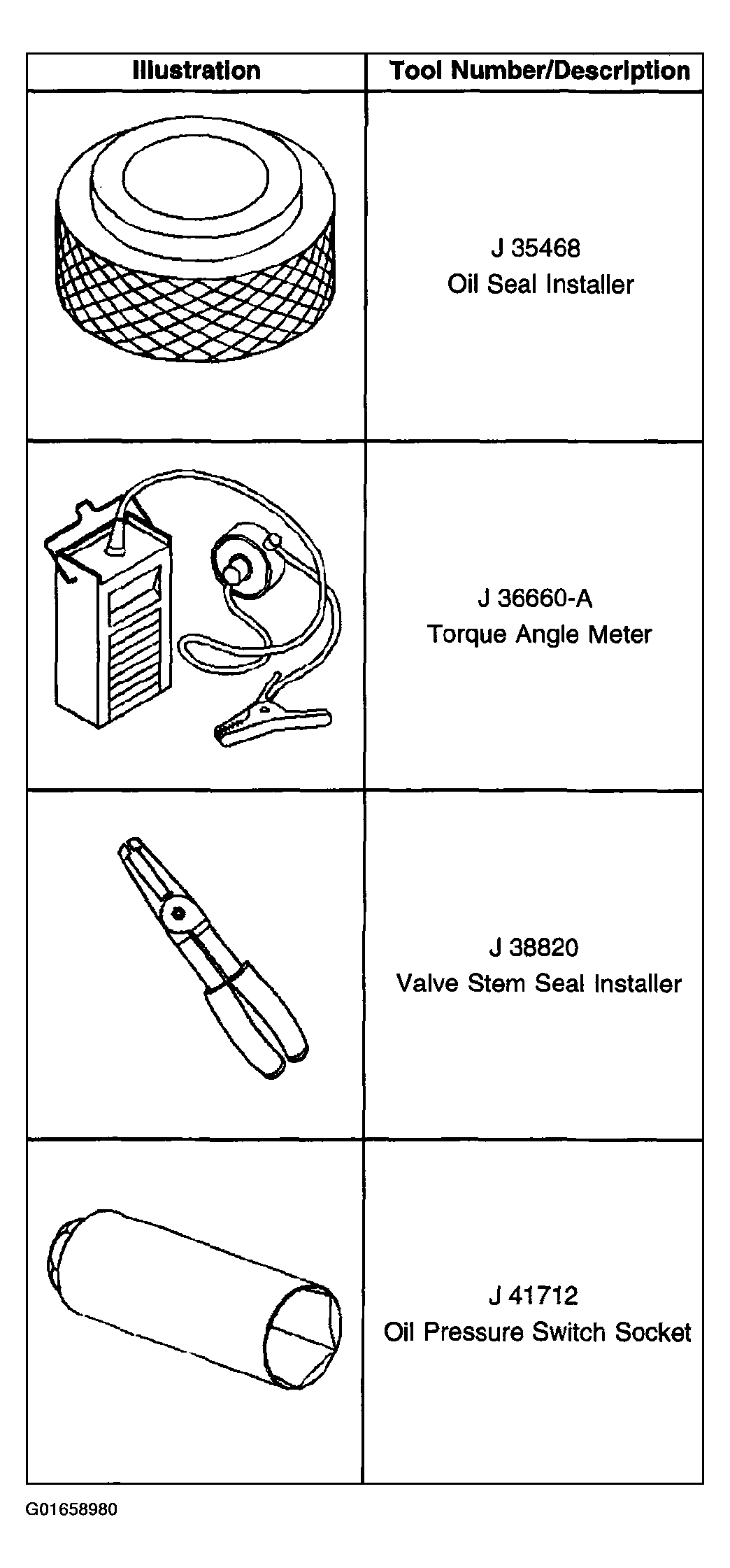

Fig 3: Special Tools & Equipment (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
