Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement .

    Important:  Be sure that valve train components are kept together and identified so that they can be installed in their original location.

  2. Remove the rocker arm assemblies.

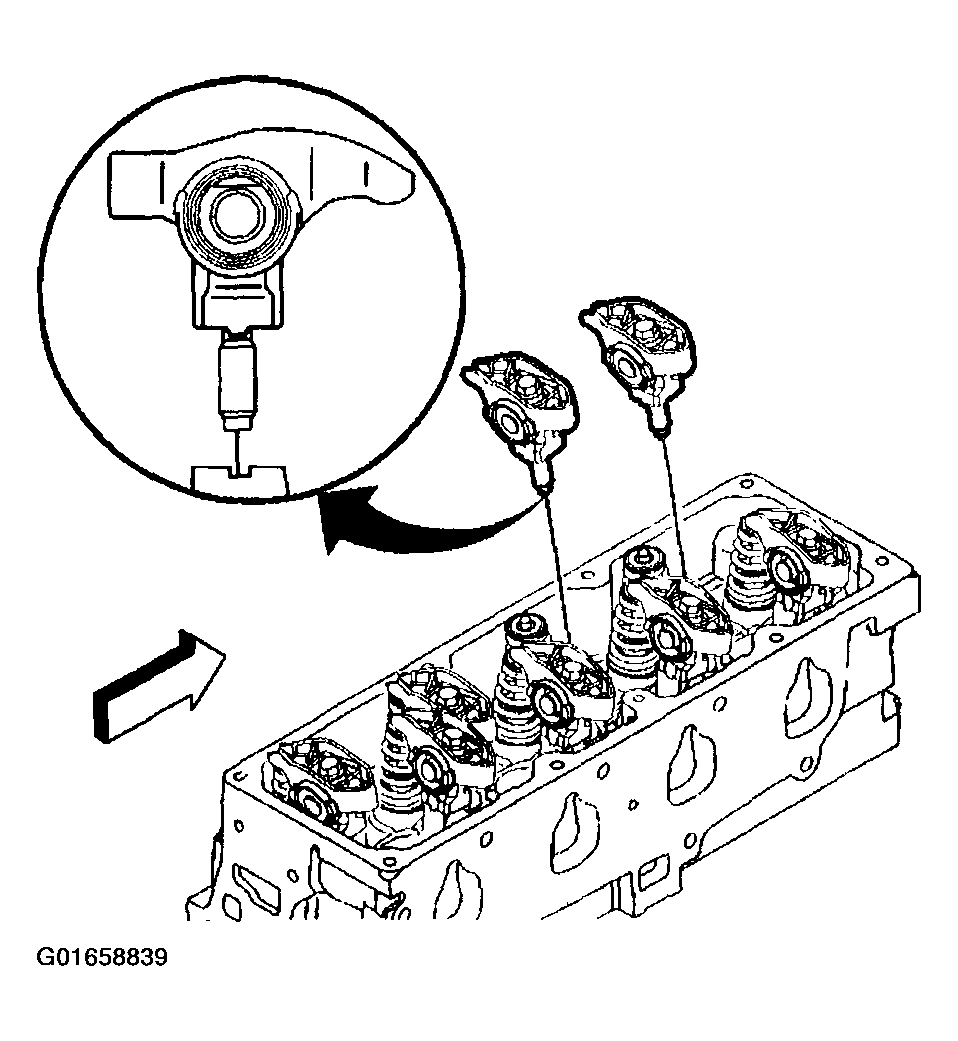

    Fig 1: Rocker Arm Assemblies
    G01658839Courtesy of GENERAL MOTORS CORP.
  3. Remove the pushrods.
  4. Clean and inspect all parts. Refer to VALVE ROCKER ARM AND PUSH RODS CLEANING AND INSPECTION .

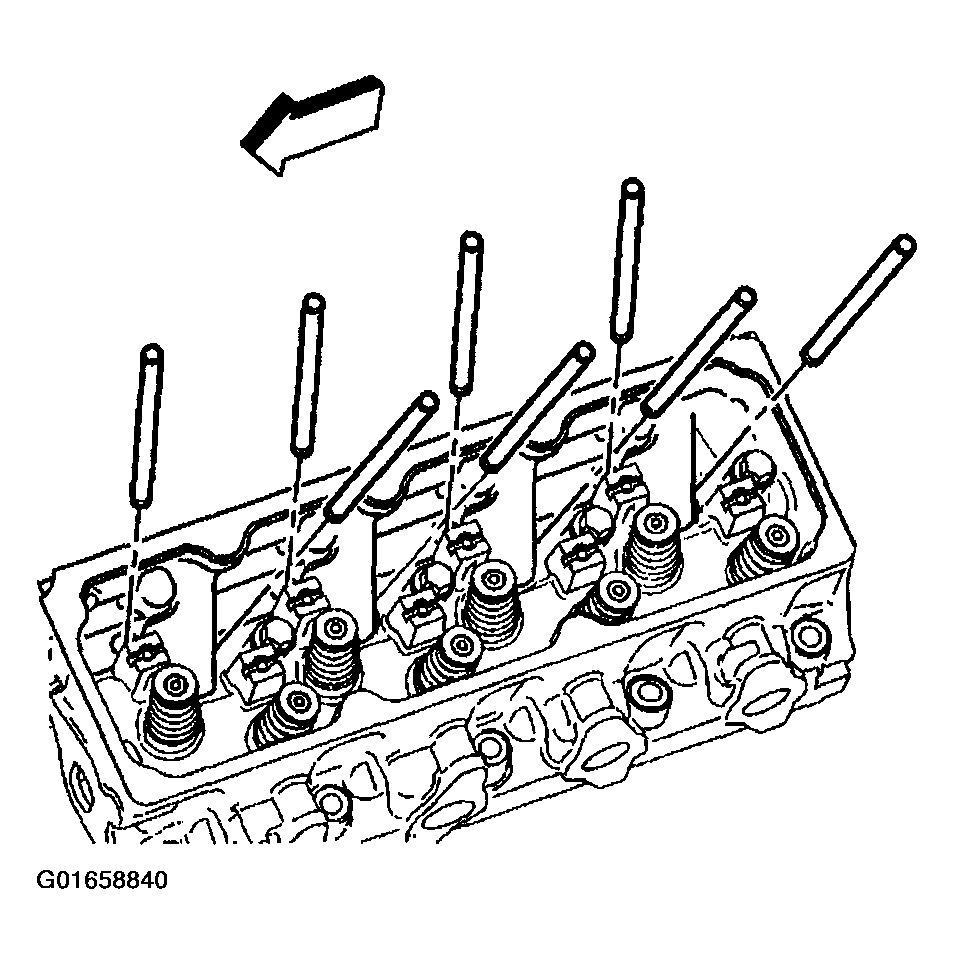

    Fig 2: Pushrods
    G01658840Courtesy of GENERAL MOTORS CORP.
