Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not crack the oil pump drive shaft retainer.

  1. Install the oil pump drive by twisting the oil pump drive into place.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the oil pump drive bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  3. Install the intake manifold. Refer to Intake Manifold Replacement .

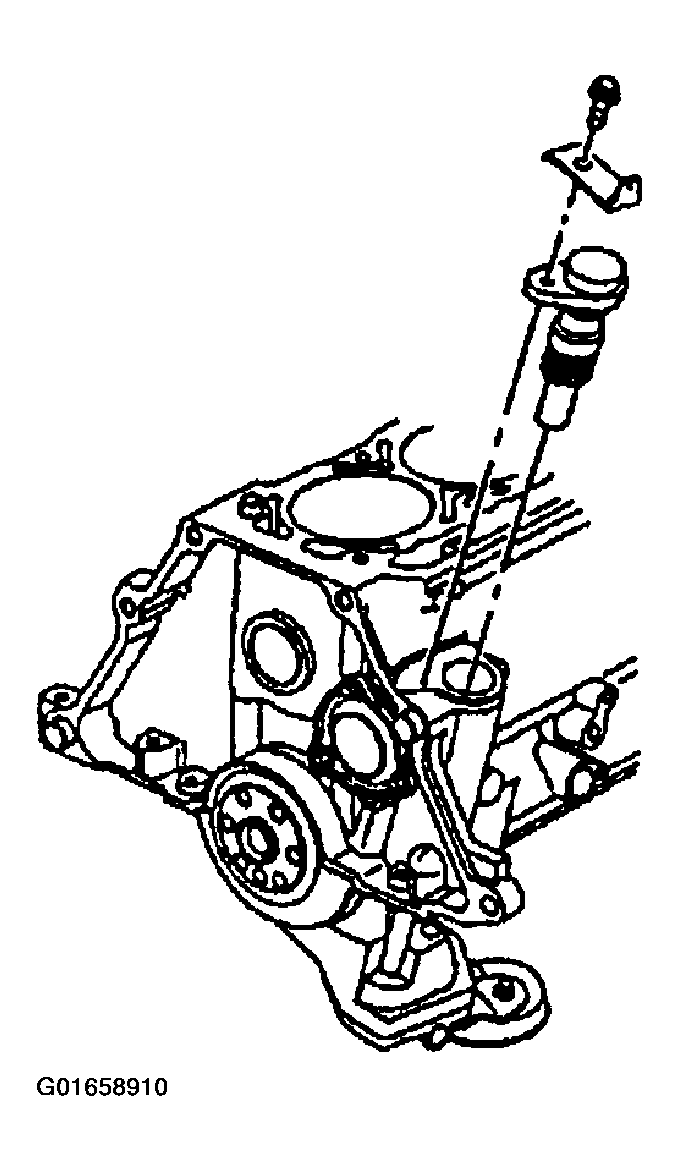

    Fig 1: Oil Pump Drive & Bolt
    G01658910Courtesy of GENERAL MOTORS CORP.
