Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Apply a 5 mm (0.193 in) diameter bead of GM P/N 12346286 or equivalent to the oil pan side sealing flanges.

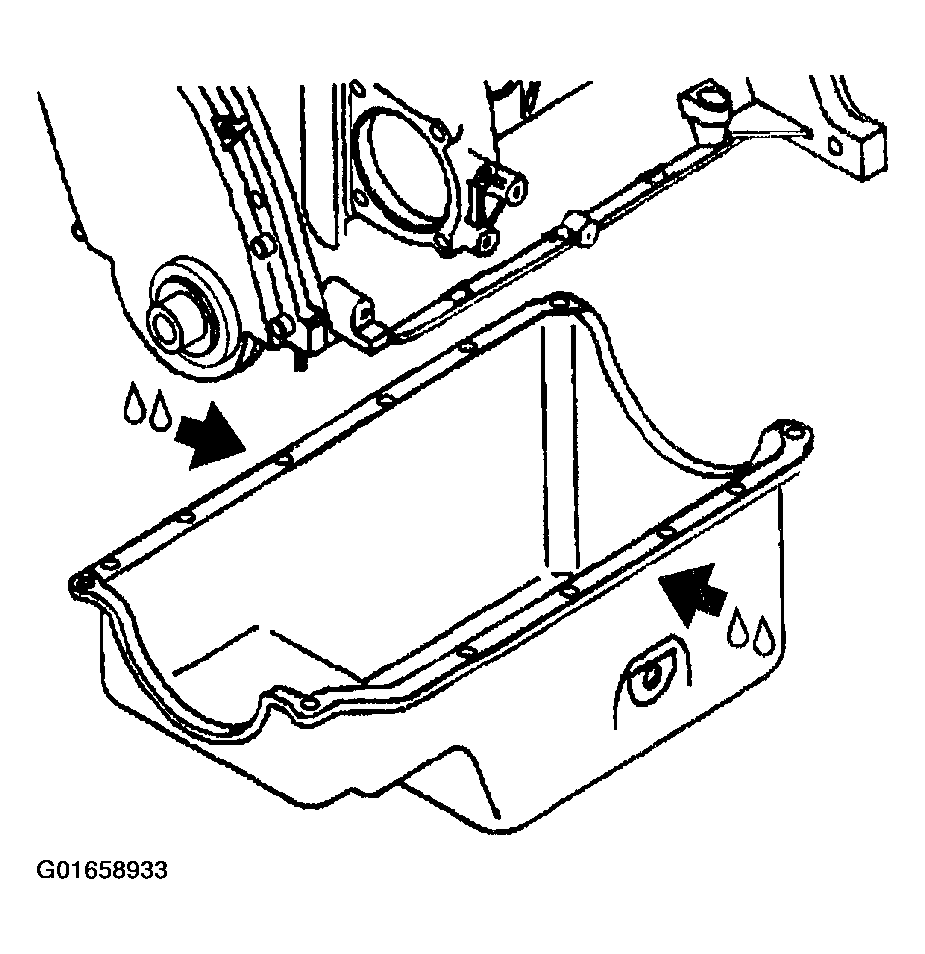

Fig 1: Oil Pan Side Sealing Flanges
Courtesy of GENERAL MOTORS CORP.
Apply GM P/N 12346286 or equivalent to the oil pan surface that contacts the engine front cover.

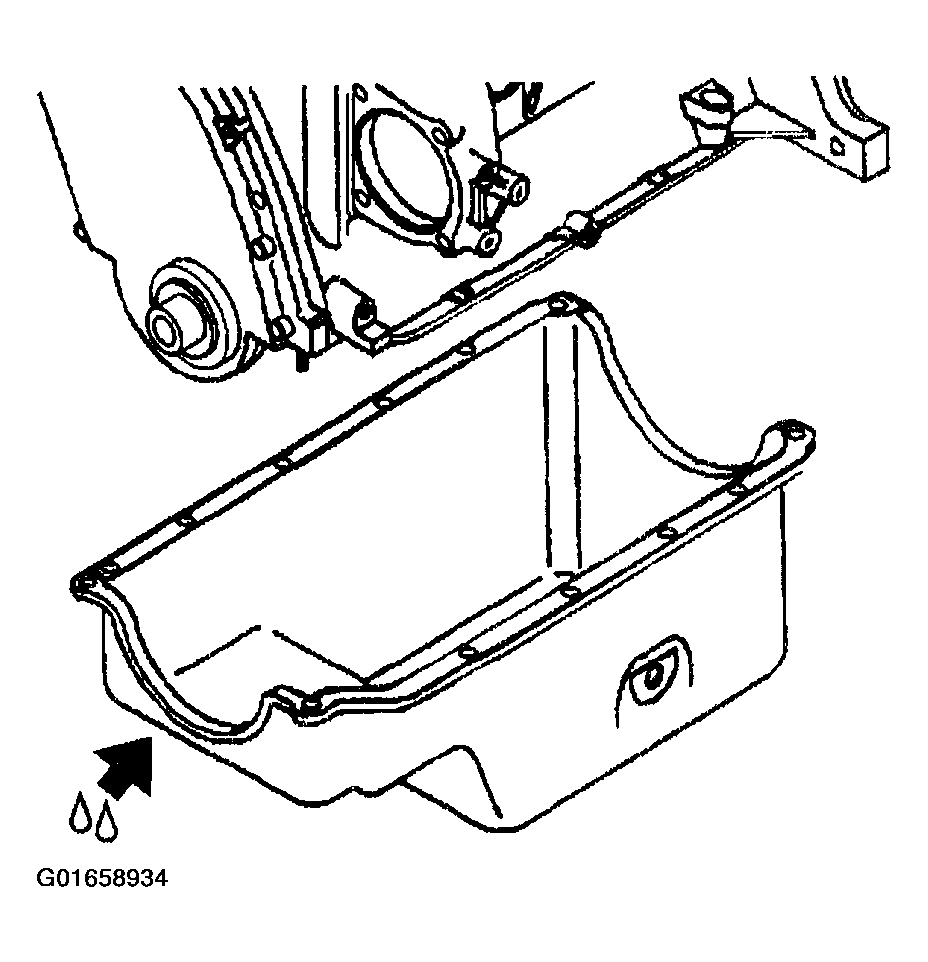

Fig 2: Oil Pan To Engine Front Cover Surface
Courtesy of GENERAL MOTORS CORP.
Install a new oil pan rear seal. Apply a small amount of GM P/N 12346286 or equivalent to the oil pan rear seal ears.

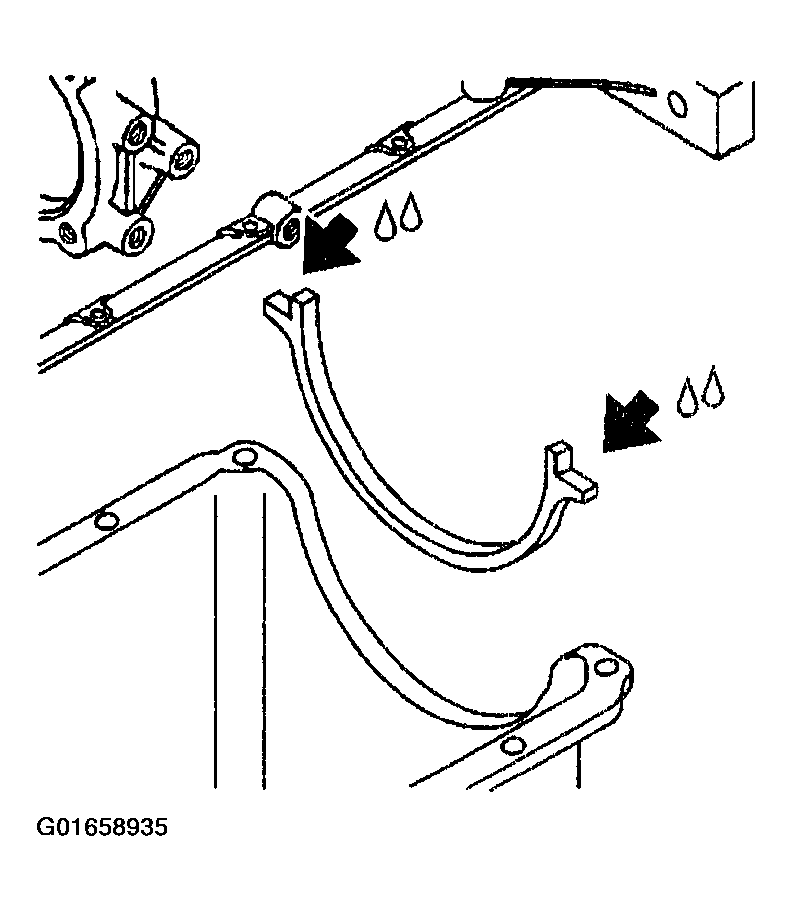

Fig 3: Oil Pan Rear Seal
Courtesy of GENERAL MOTORS CORP.
Install the oil pan.

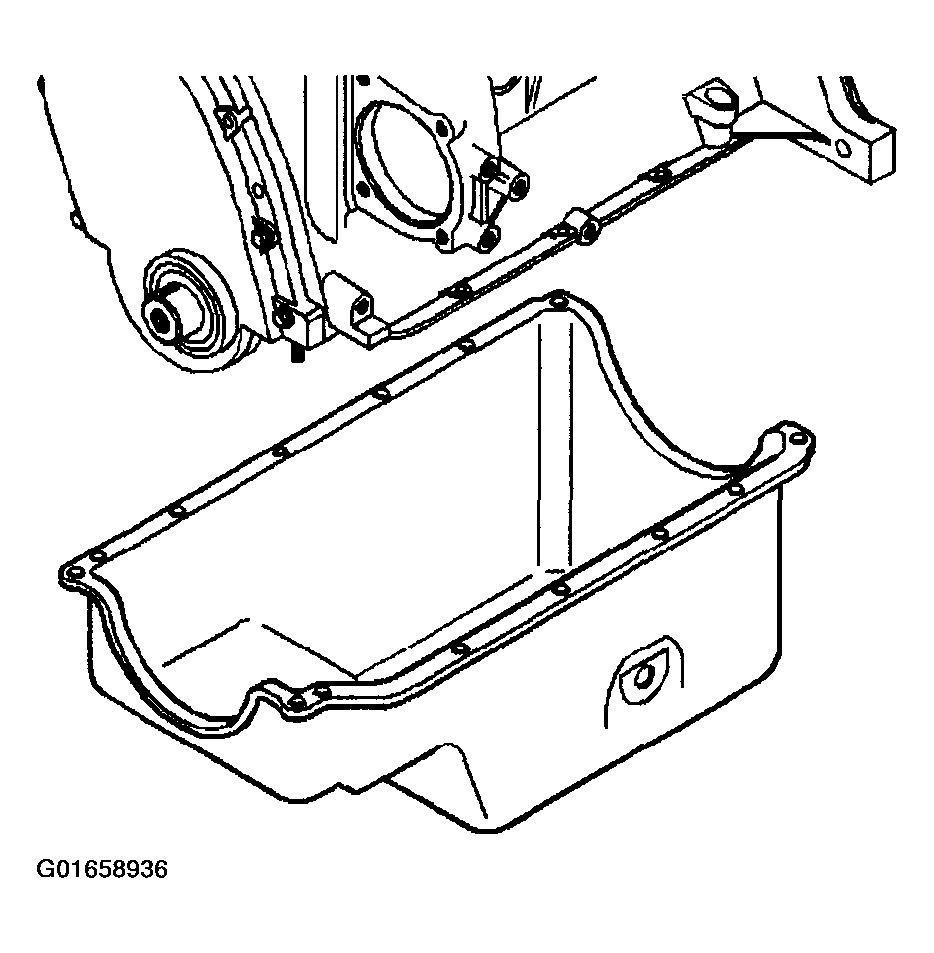

Fig 4: Oil Pan
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the oil pan nuts.
Tighten

Tighten the oil pan nuts to 10 N.m (89 lb in).

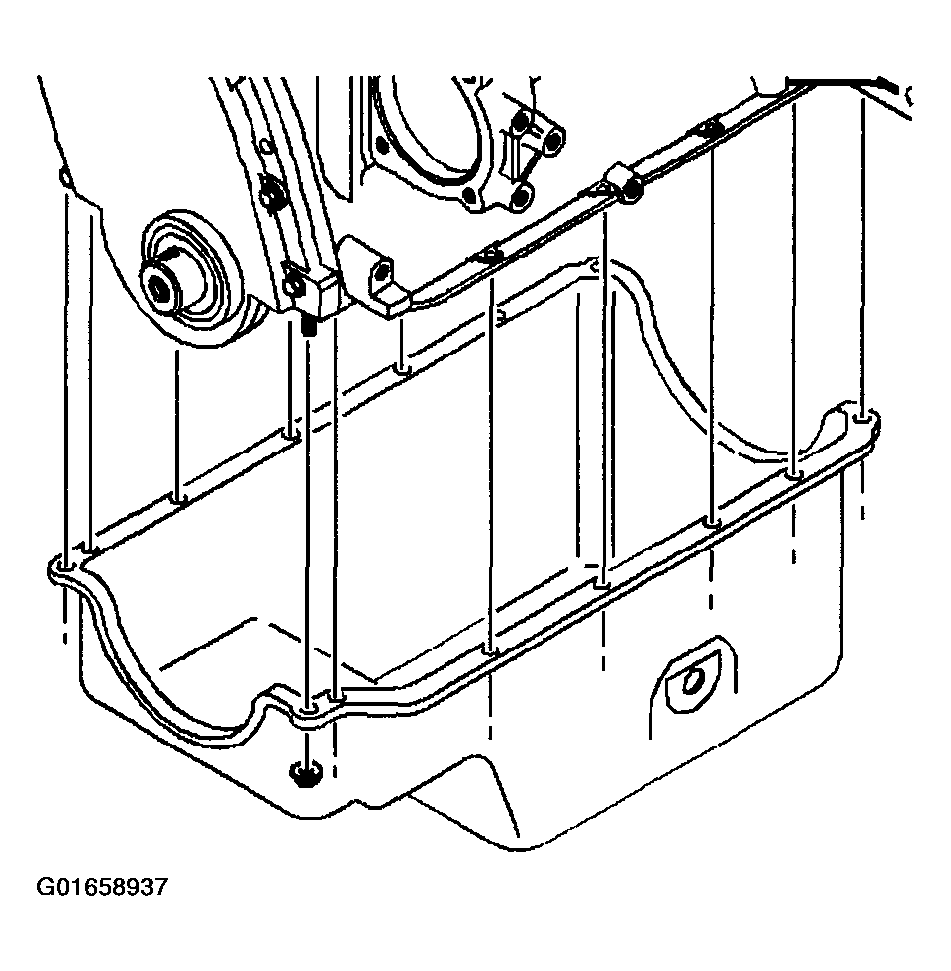

Fig 5: Oil Pan & Nuts
Courtesy of GENERAL MOTORS CORP.
Install the oil pan bolts.
Tighten

Tighten the oil pan bolts to 10 N.m (89 lb in).
Remove the engine from the engine stand.
Install the engine into the vehicle. Refer to Engine Replacement .

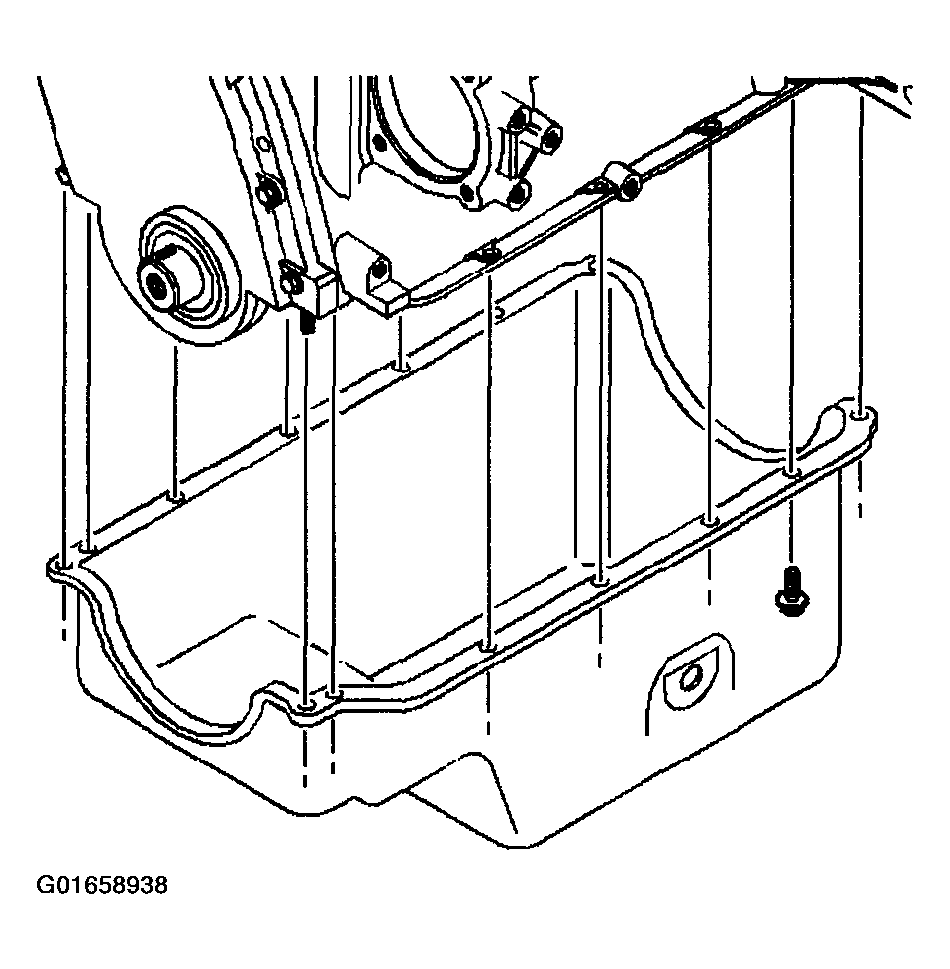

Fig 6: Oil Pan & Bolts
Courtesy of GENERAL MOTORS CORP.
