Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator nut and the bracket from the exhaust manifold.

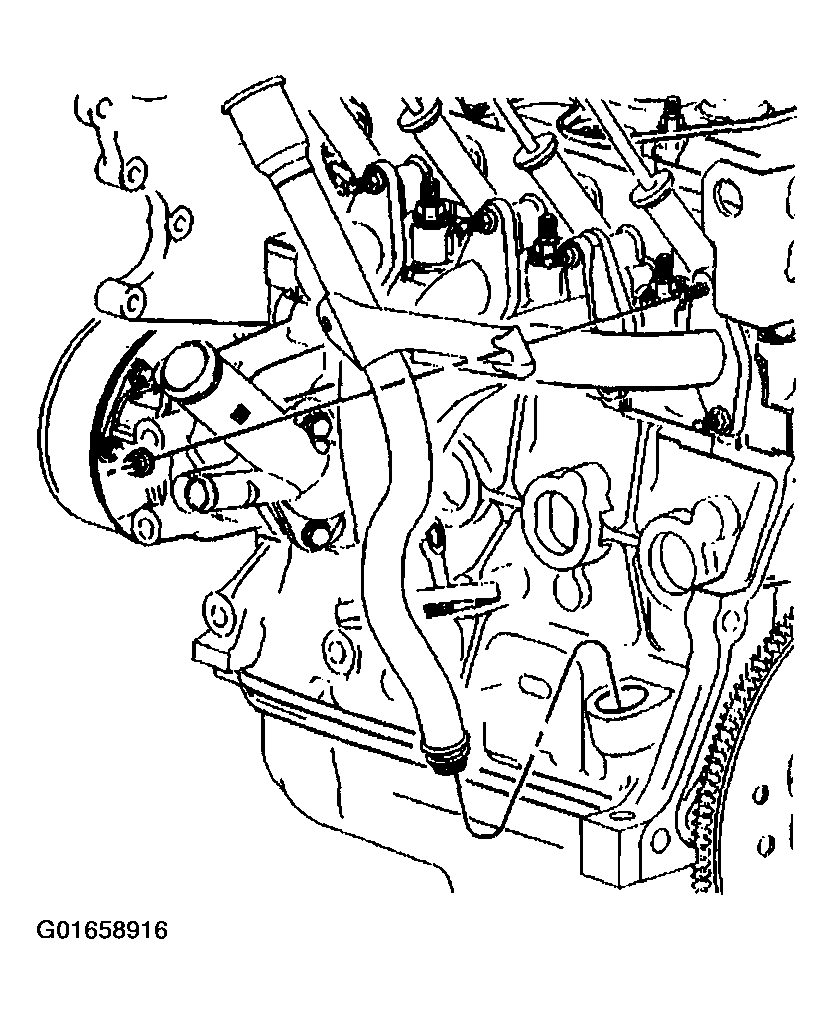

    Fig 1: Oil Level Indicator, Nut & Bracket
    G01658916Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level indicator bolt from the heater hose pipe.
  4. Remove the oil level indicator tube and seal.

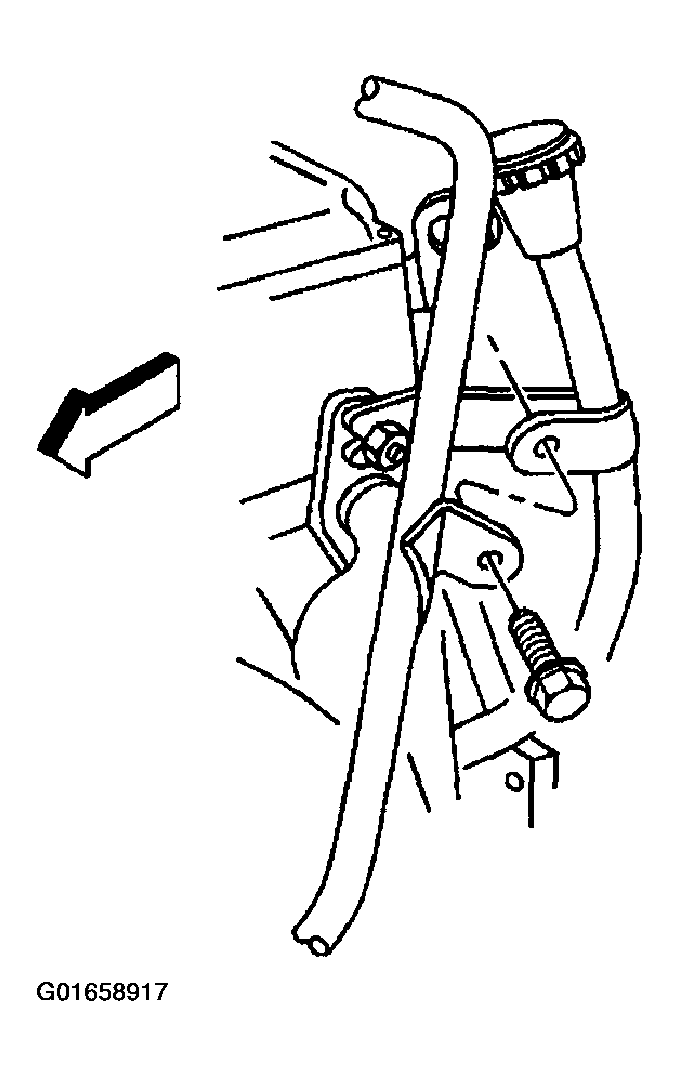

    Fig 2: Oil Level Indicator Tube & Bolt
    G01658917Courtesy of GENERAL MOTORS CORP.
