Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator tube and seal.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the oil level indicator tube bracket and nut on the exhaust manifold stud.

    Tighten

    Tighten the nut to 12 N.m (106 lb in).

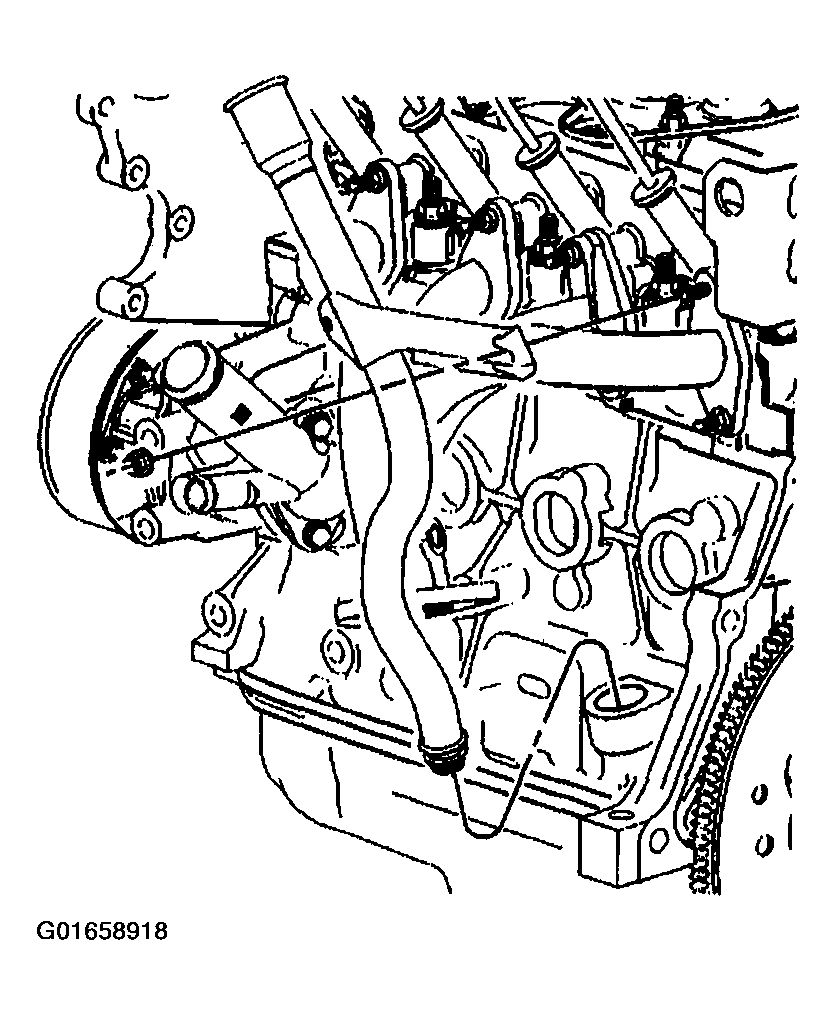

    Fig 1: Oil Level Indicator Tube, Bracket & Nut
    G01658918Courtesy of GENERAL MOTORS CORP.
  3. Install the oil level indicator tube to heater hose pipe bracket bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  4. Install the oil level indicator.

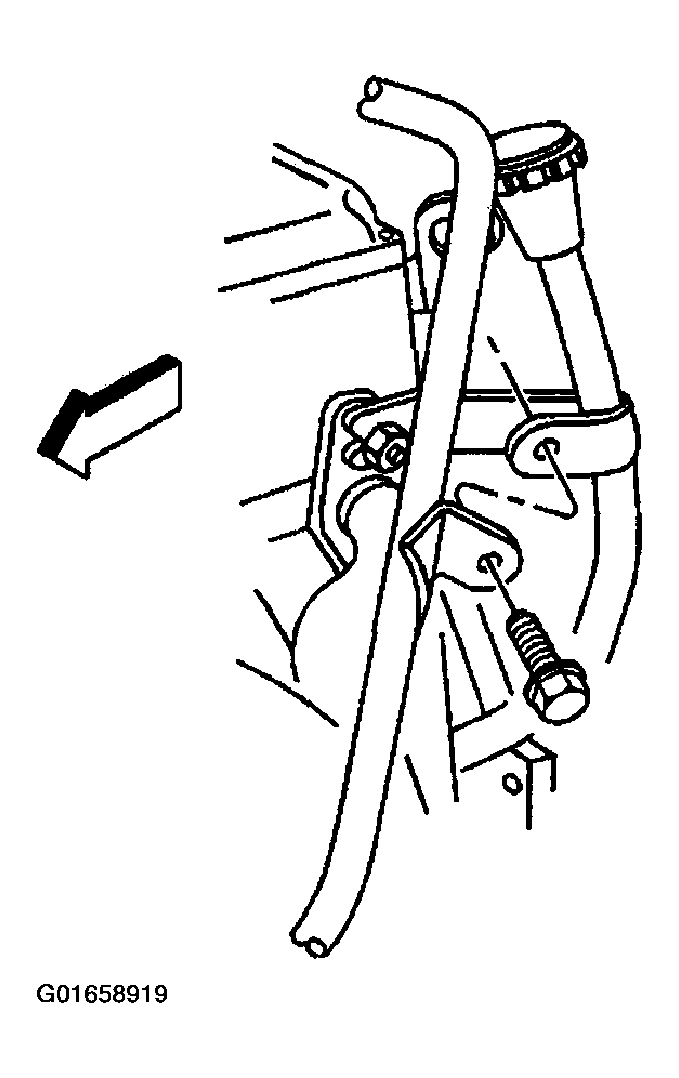

    Fig 2: Oil Level Indicator & Bolt
    G01658919Courtesy of GENERAL MOTORS CORP.
