Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the right fender wheelhouse extension. Refer to WHEELHOUSE EXTENSION REPLACEMENT .
  3. Disconnect the engine oil pressure gauge sensor electrical connector (2).

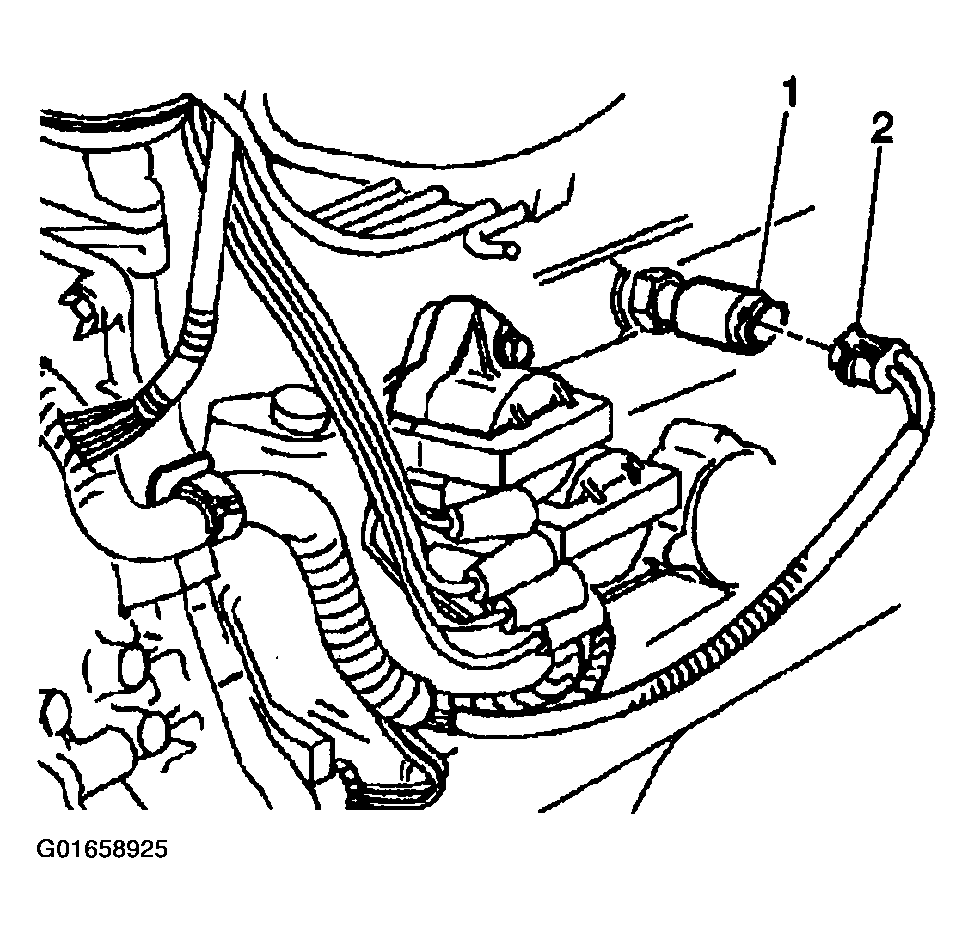

    Fig 1: Engine Oil Pressure Gauge Sensor Electrical Connector
    G01658925Courtesy of GENERAL MOTORS CORP.
  4. Using the J 41712  remove the engine oil pressure gauge sensor.

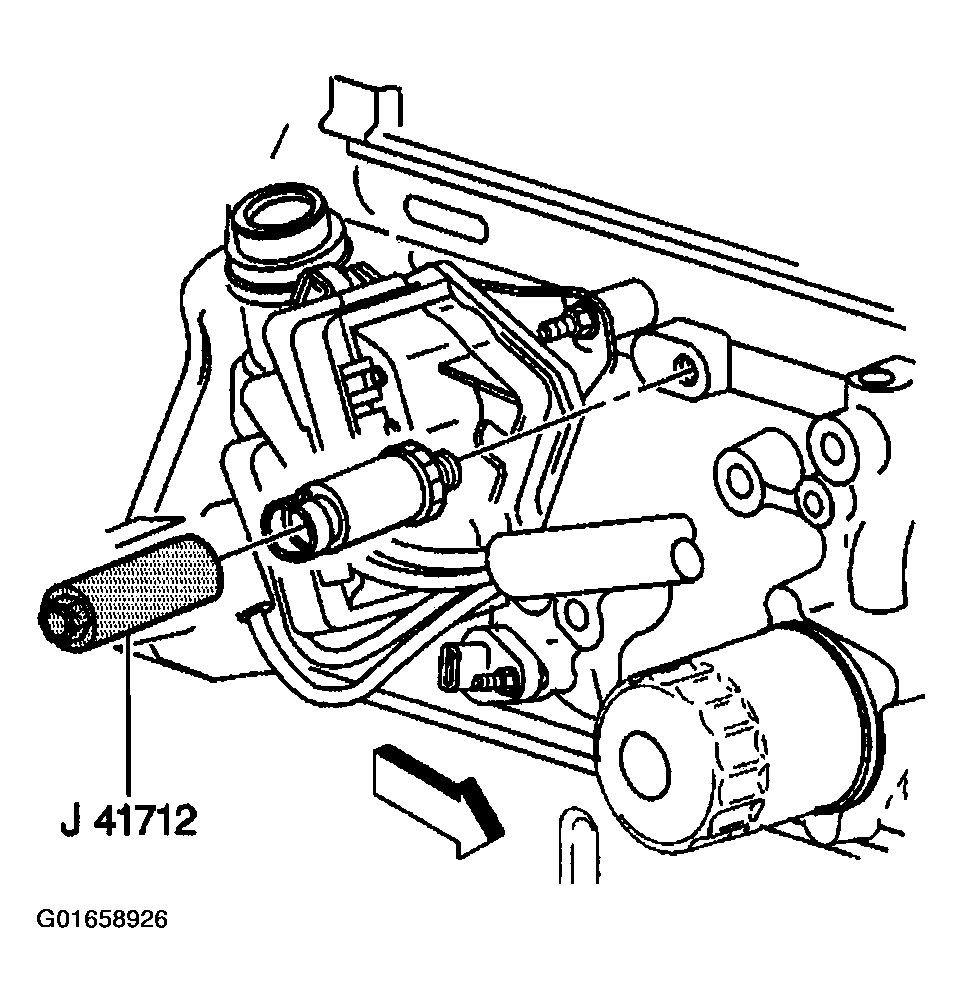

    Fig 2: Engine Oil Pressure Gauge Sensor & J 41712
    G01658926Courtesy of GENERAL MOTORS CORP.
