Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine oil pressure gauge sensor using the J 41712  .

    Tighten

    Tighten to 12 N.m (106 lb in).

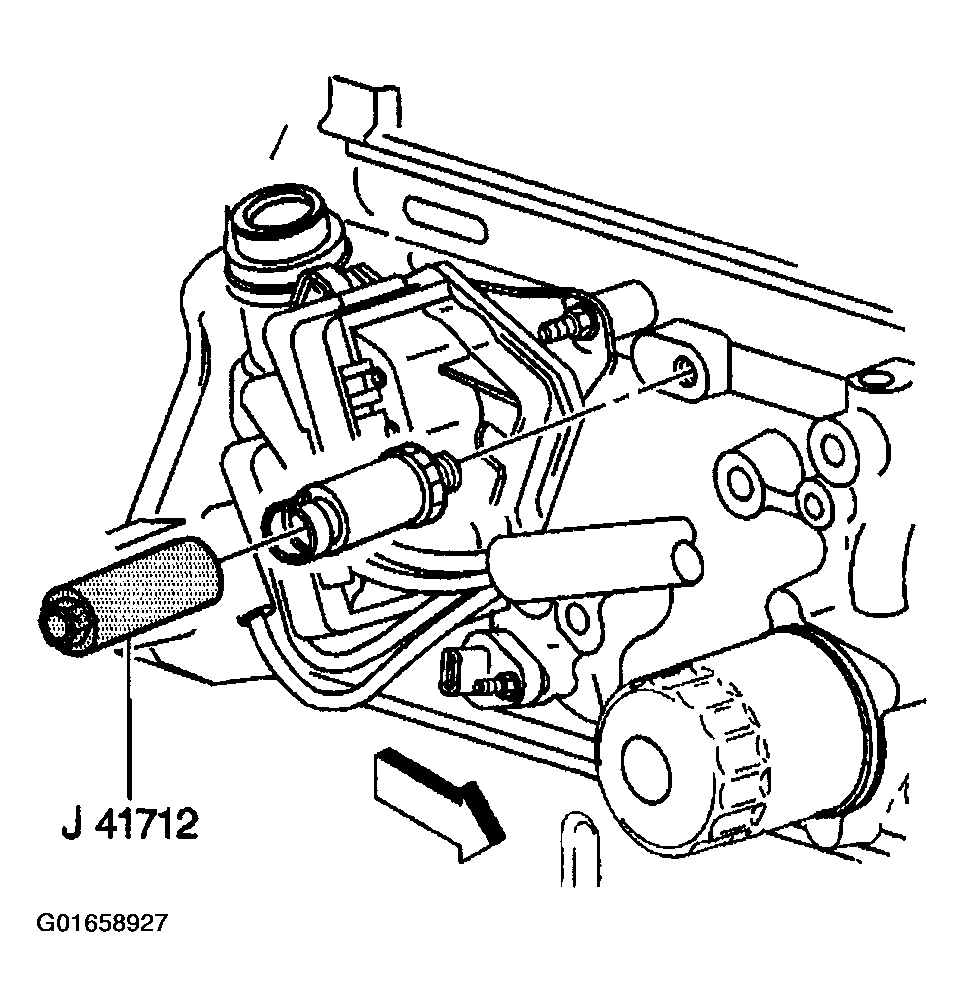

    Fig 1: Engine Oil Pressure Gauge Sensor & J 41712
    G01658927Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine oil pressure gauge sensor electrical connector (2).
  3. Install the right fender wheelhouse extension. Refer to WHEELHOUSE EXTENSION REPLACEMENT .
  4. Lower the vehicle.

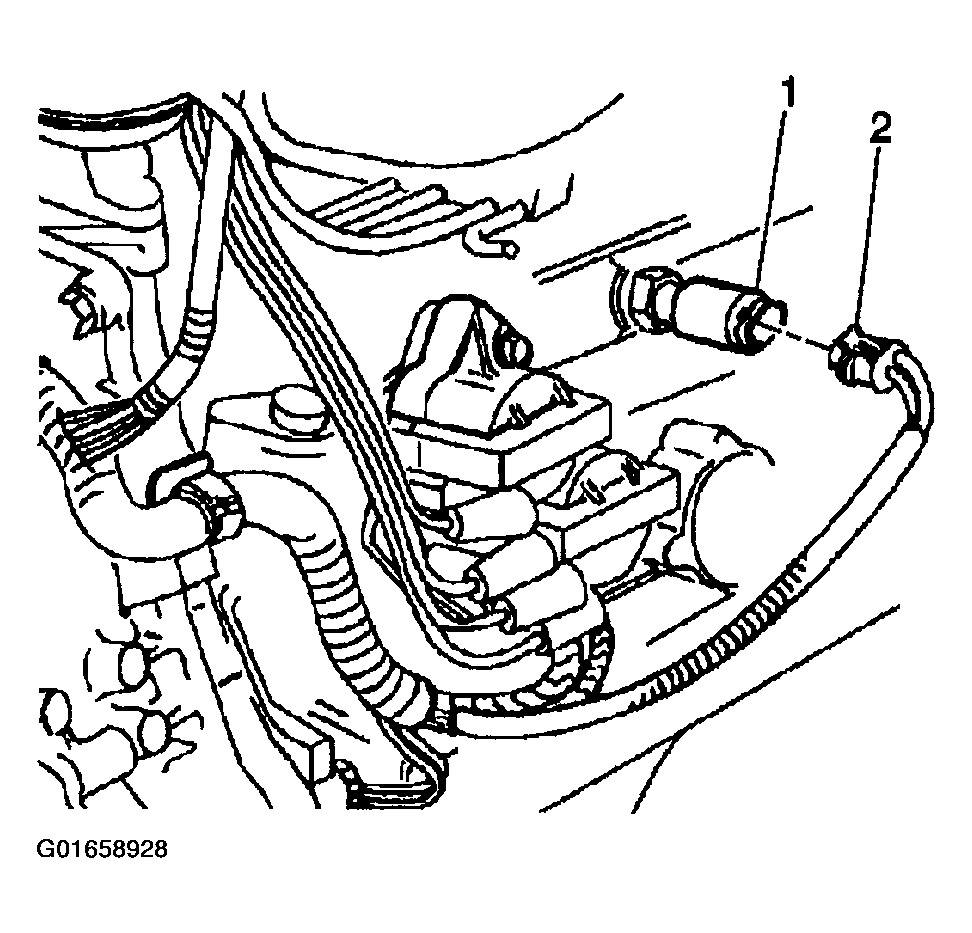

    Fig 2: Engine Oil Pressure Gauge Sensor Electrical Connector
    G01658928Courtesy of GENERAL MOTORS CORP.
