Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the engine mount, the stud and the 2 bolts.
Tighten

Tighten the engine mount stud and bolts to 55 N.m (41 lb ft).

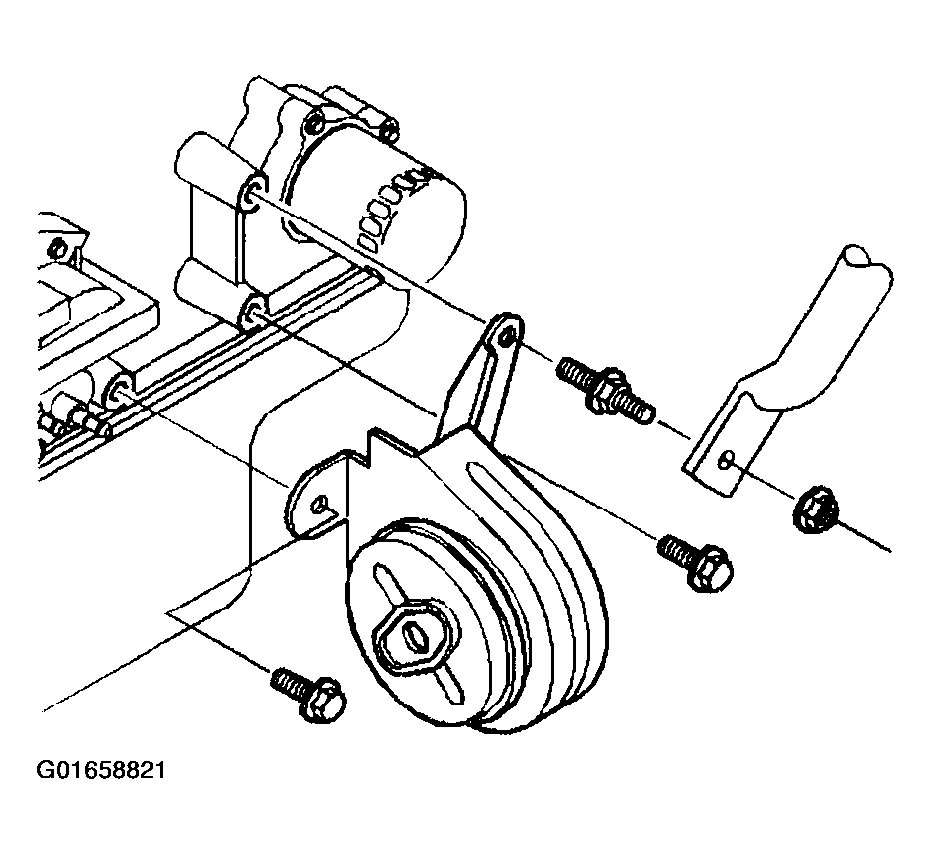

Fig 1: Right Engine Mount, Bolts & Stud
Courtesy of GENERAL MOTORS CORP.
Install the engine mount through-bolt.
Tighten

Tighten the engine mount through-bolt to 45 N.m (33 lb ft).
Remove the engine lifting device.

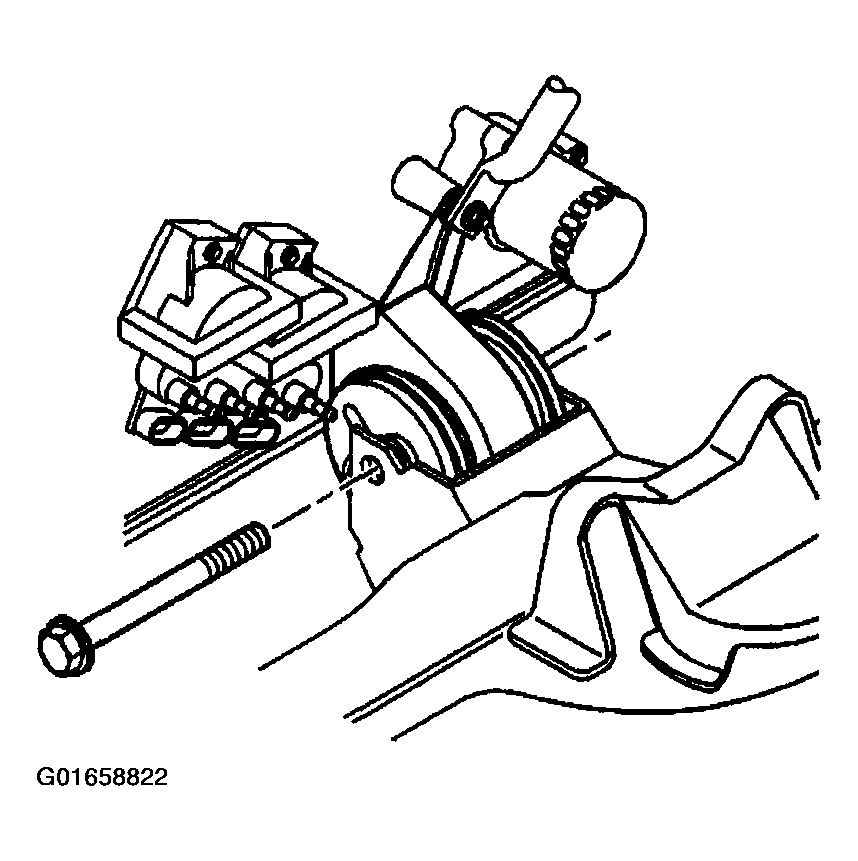

Fig 2: Engine Mount Through-Bolt
Courtesy of GENERAL MOTORS CORP.
Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Working through the wheelhouse, install the generator rear brace.
Install the nuts holding the brace to the intake stud and the stud on the engine.
Install the bolt holding the brace to the rear of the generator.
Tighten

Tighten the generator rear brace nuts and bolt to 25 N.m (18 lb ft).

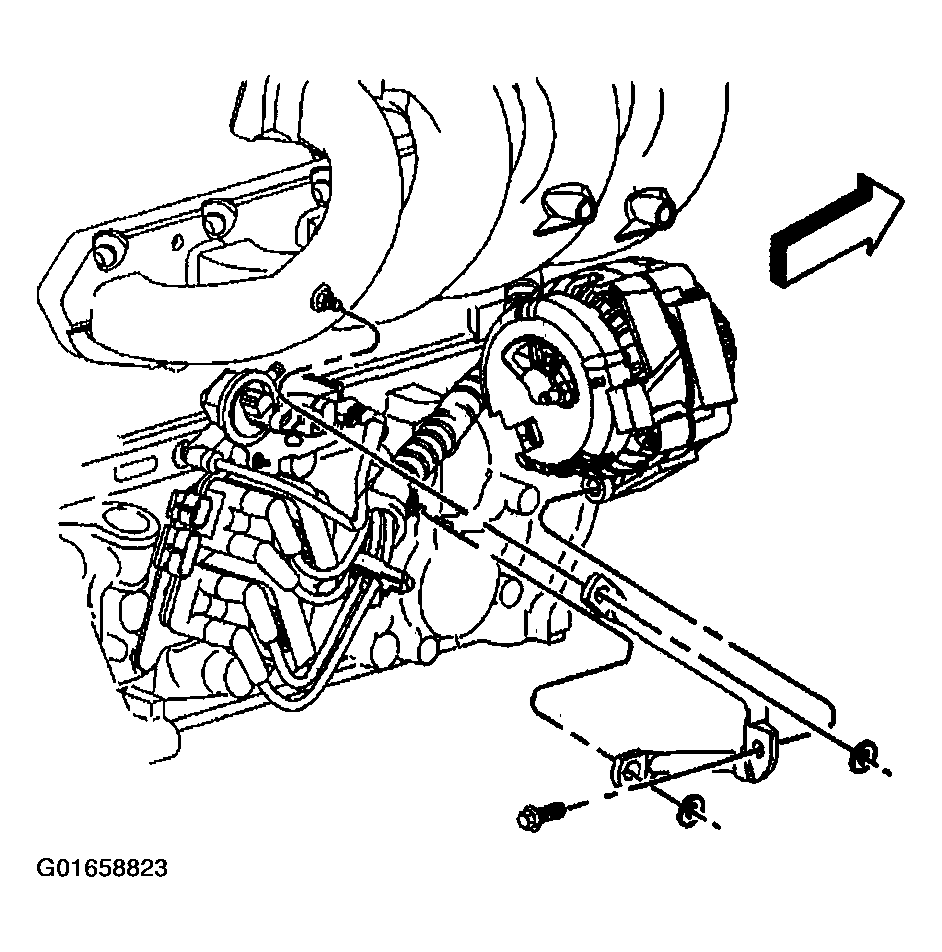

Fig 3: Generator Rear Brace, Nuts & Bolt
Courtesy of GENERAL MOTORS CORP.
Install the transmission support brace.
Tighten

Tighten the transmission support bolts to 50 N.m (37 lb ft).

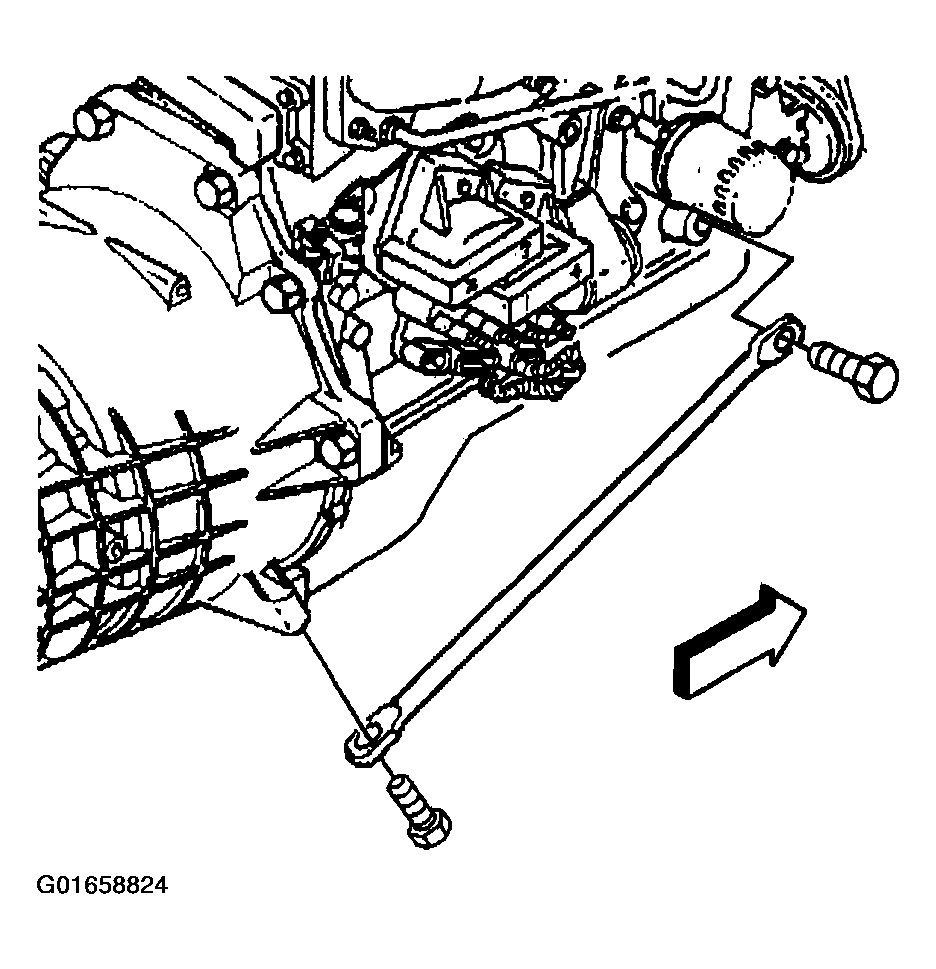

Fig 4: Transmission Support Brace & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the right fender wheelhouse extension.
Lower the vehicle.

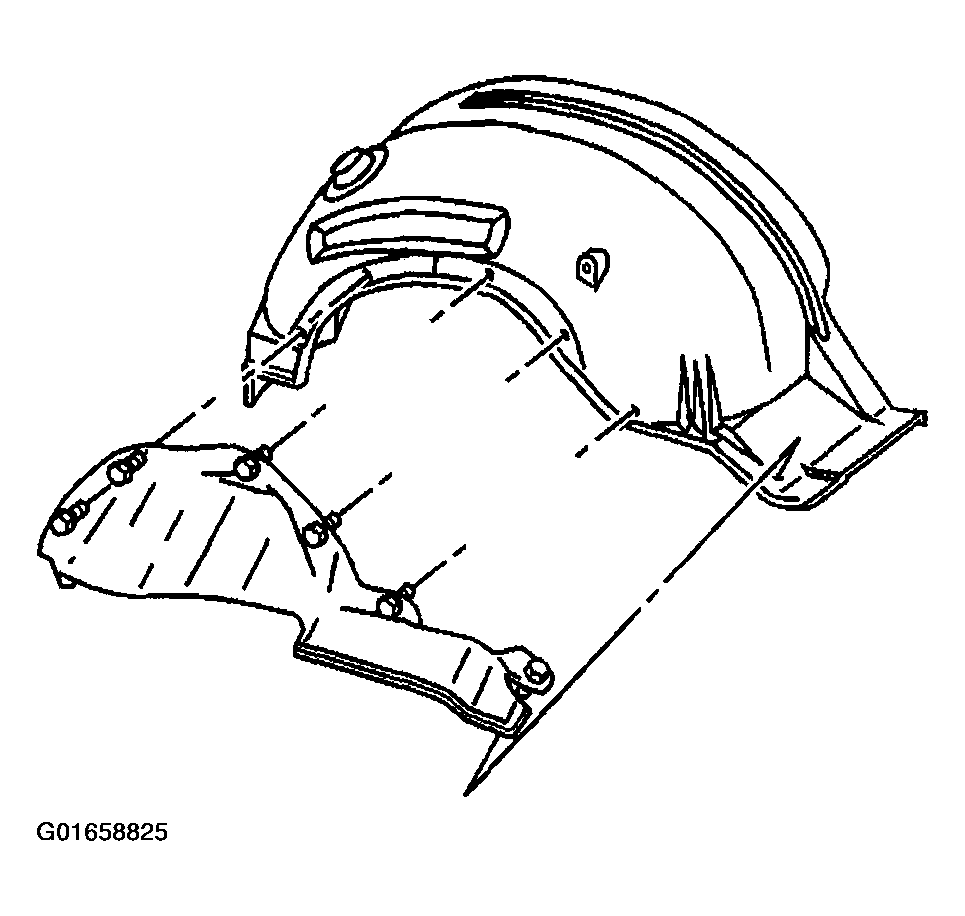

Fig 5: Right Fender Wheelhouse Extension
Courtesy of GENERAL MOTORS CORP.
