Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount.
NOTE: Refer to FASTENER NOTICE .
Install the stud, 2 bolts, and the starter support.
Tighten

Tighten the engine mount stud and bolts to 55 N.m (41 lb ft).

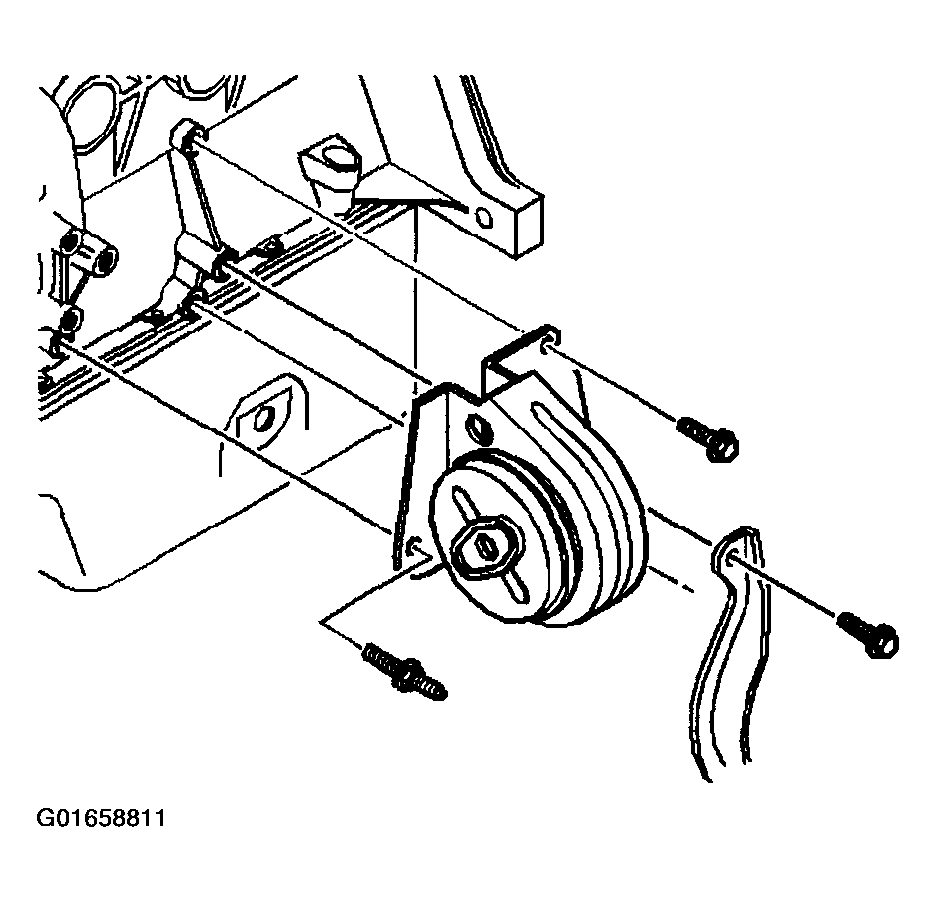

Fig 1: Left Engine Mount, Bolts & Stud
Courtesy of GENERAL MOTORS CORP.
Install the engine mount through-bolt.
Tighten

Tighten the engine mount through-bolt to 45 N.m (33 lb ft).
Remove the engine lifting device.

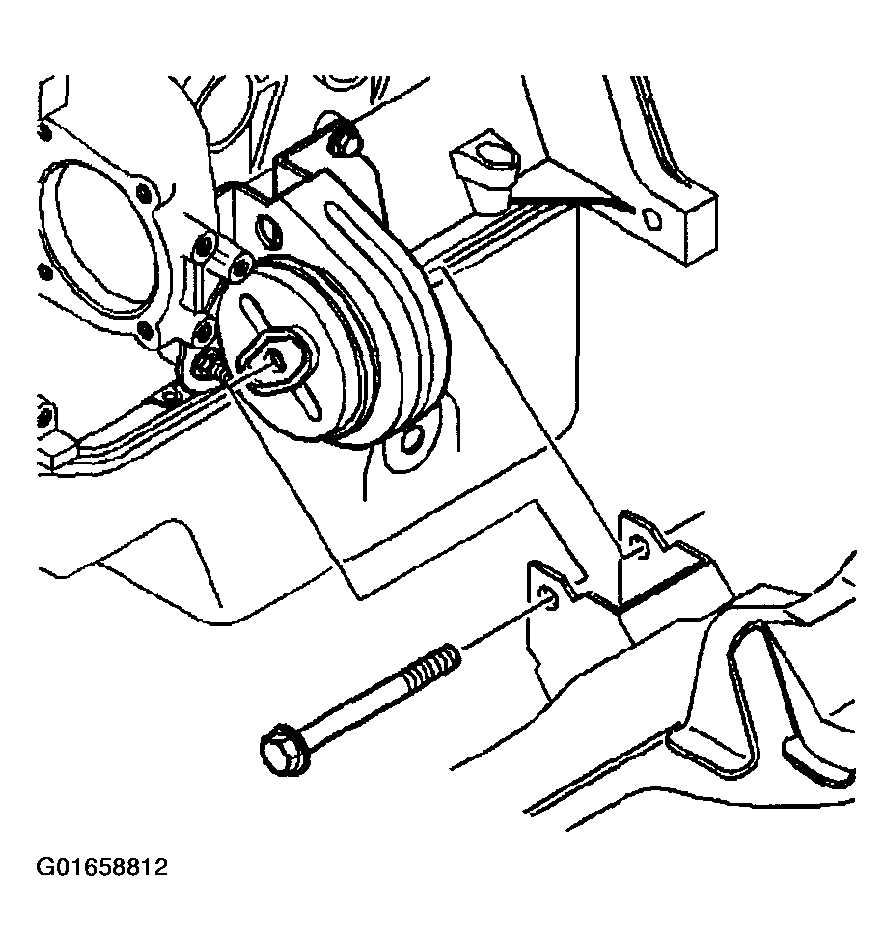

Fig 2: Engine Mount Through-Bolt
Courtesy of GENERAL MOTORS CORP.
Install the engine mount shield and the bolt.
Tighten

Tighten the shield bolt to 11 N.m (97 lb in).

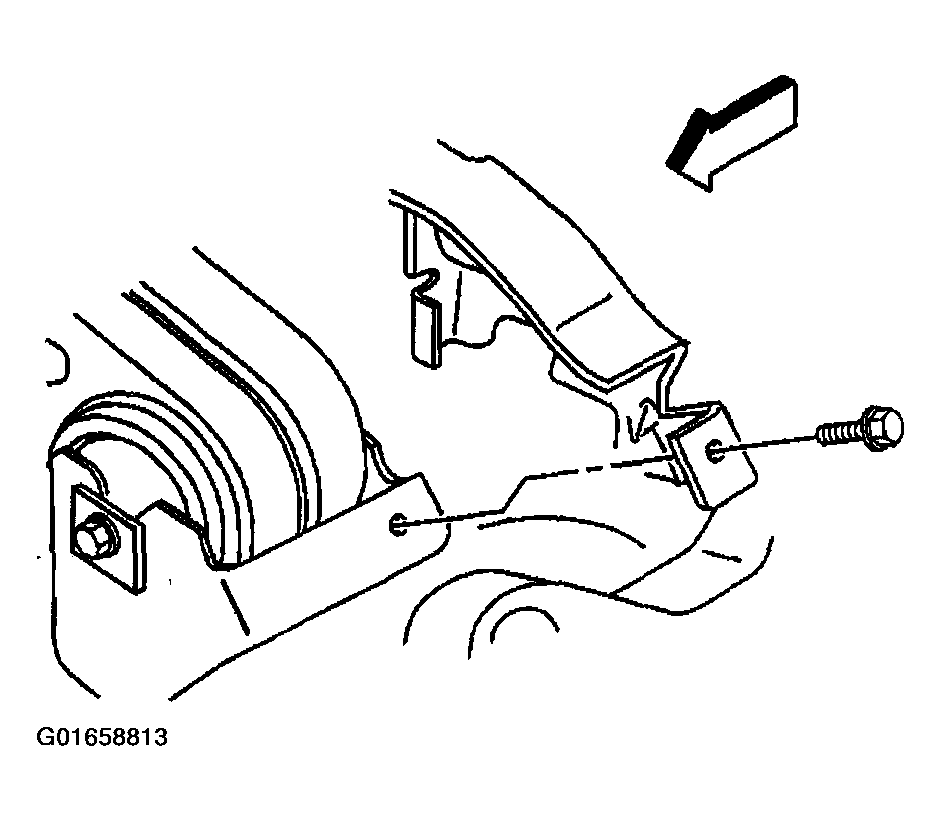

Fig 3: Engine Mount Shield & Bolt
Courtesy of GENERAL MOTORS CORP.
Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Install the battery positive cable through the engine mount.
Install the bolt holding the battery positive cable to the engine.
Tighten

Tighten the bolt to 35 N.m (26 lb ft).
Install the starter. Refer to STARTER MOTOR .

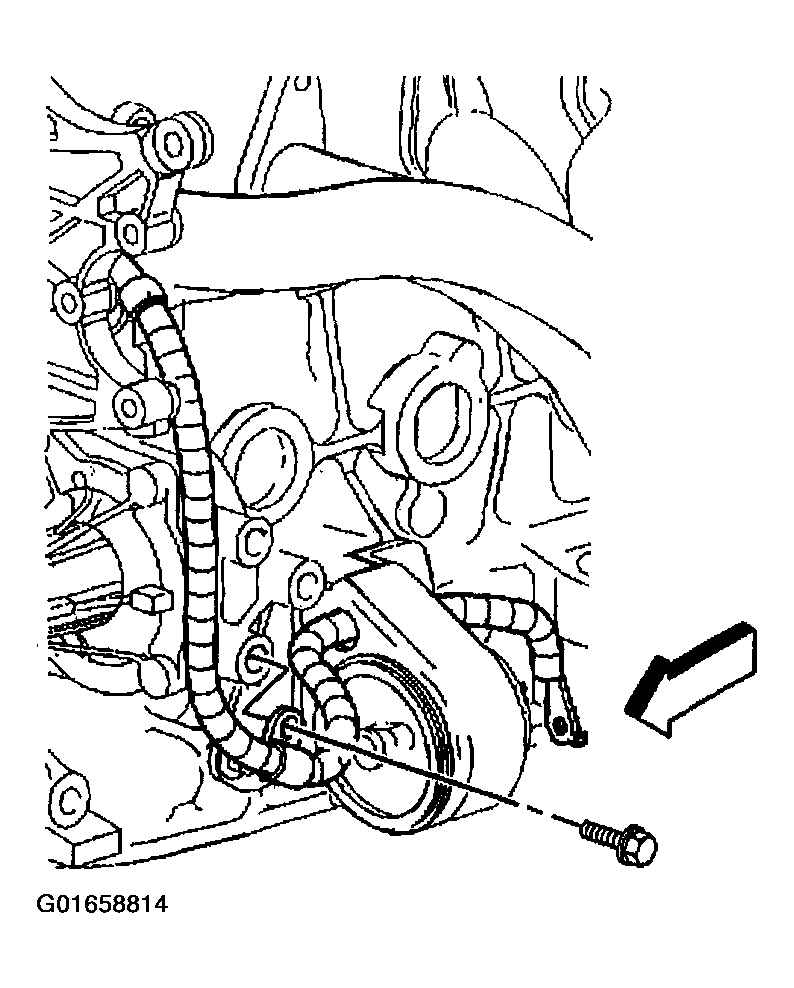

Fig 4: Battery Positive Cable & Bolt
Courtesy of GENERAL MOTORS CORP.
Install the left side transmission support brace and bolts.
Tighten

Tighten the bolts to 50 N.m (37 lb ft).
Lower the vehicle.
Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

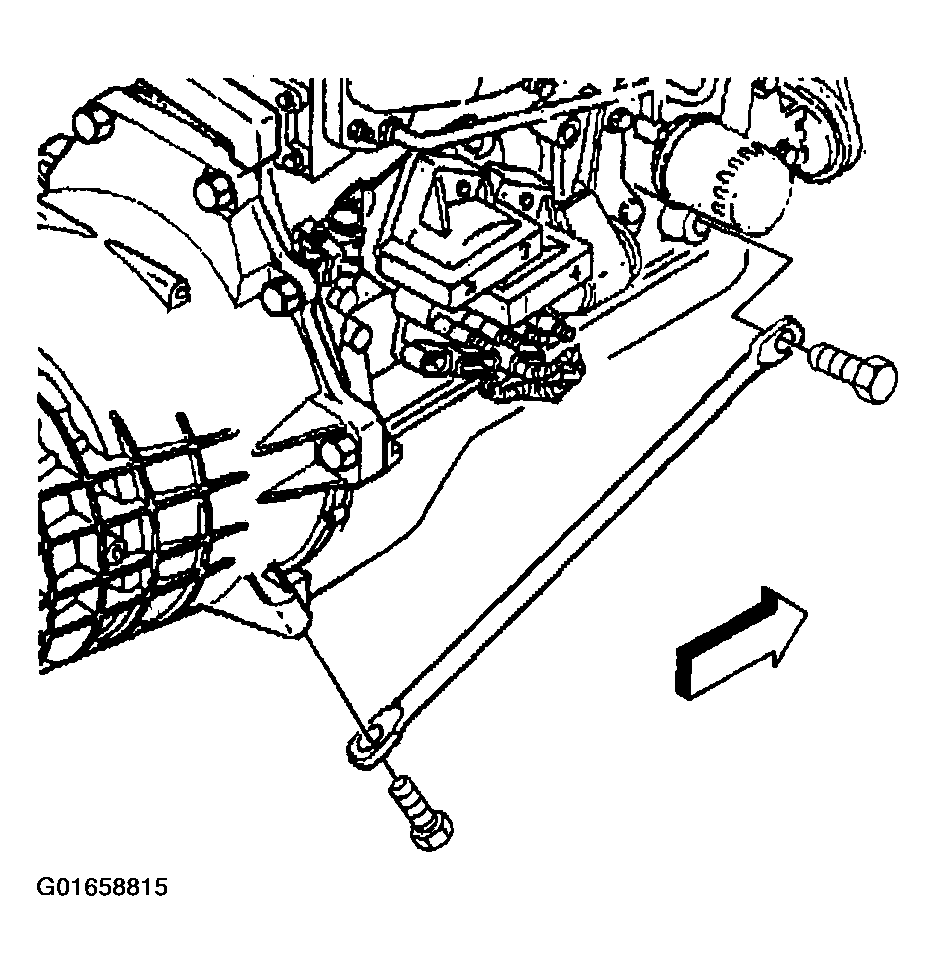

Fig 5: Left Side Transmission Support Brace & Bolts
Courtesy of GENERAL MOTORS CORP.
