Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley and hub. Refer to Crankshaft Balancer and Hub Replacement .
  2. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  3. Remove the engine front cover bolts.

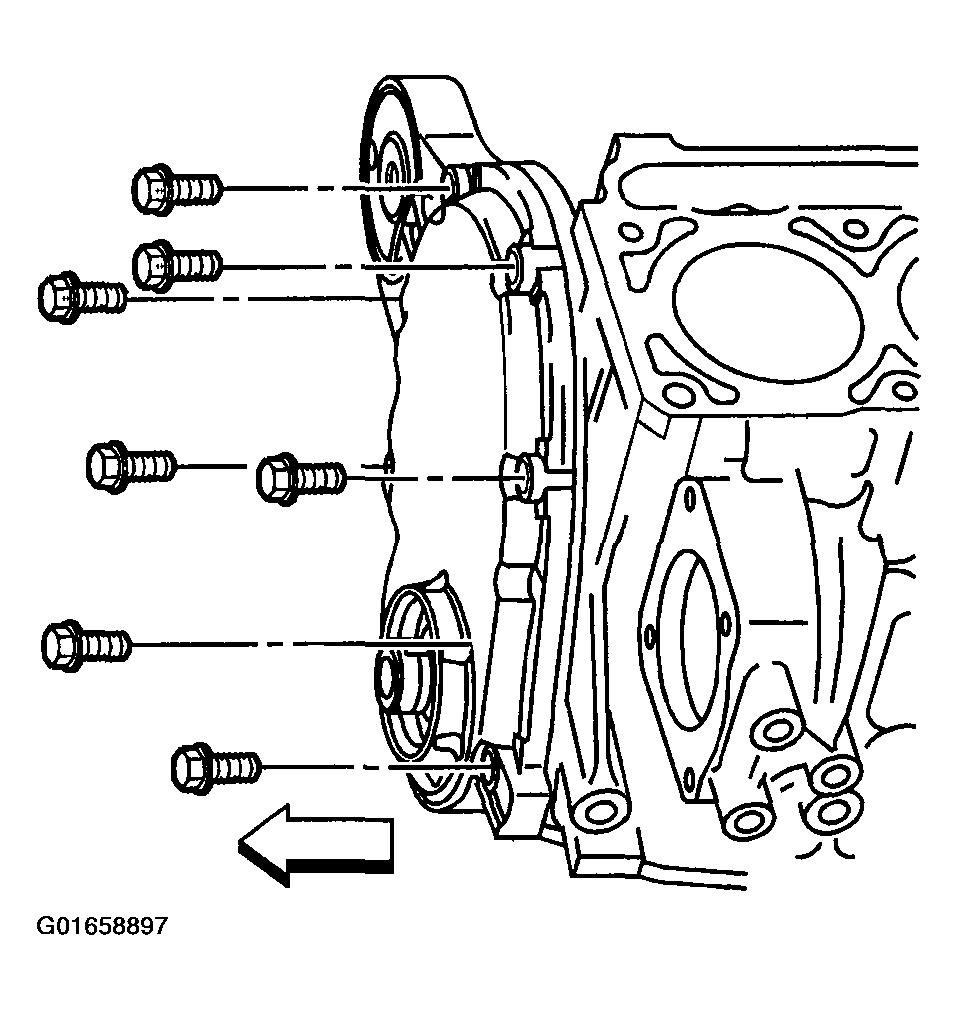

    Fig 1: Engine Front Cover Bolts
    G01658897Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine front cover and gasket.

    Important:  Inspect the engine front cover for warping or damage. Replace if needed.

  5. Clean all sealing surfaces.

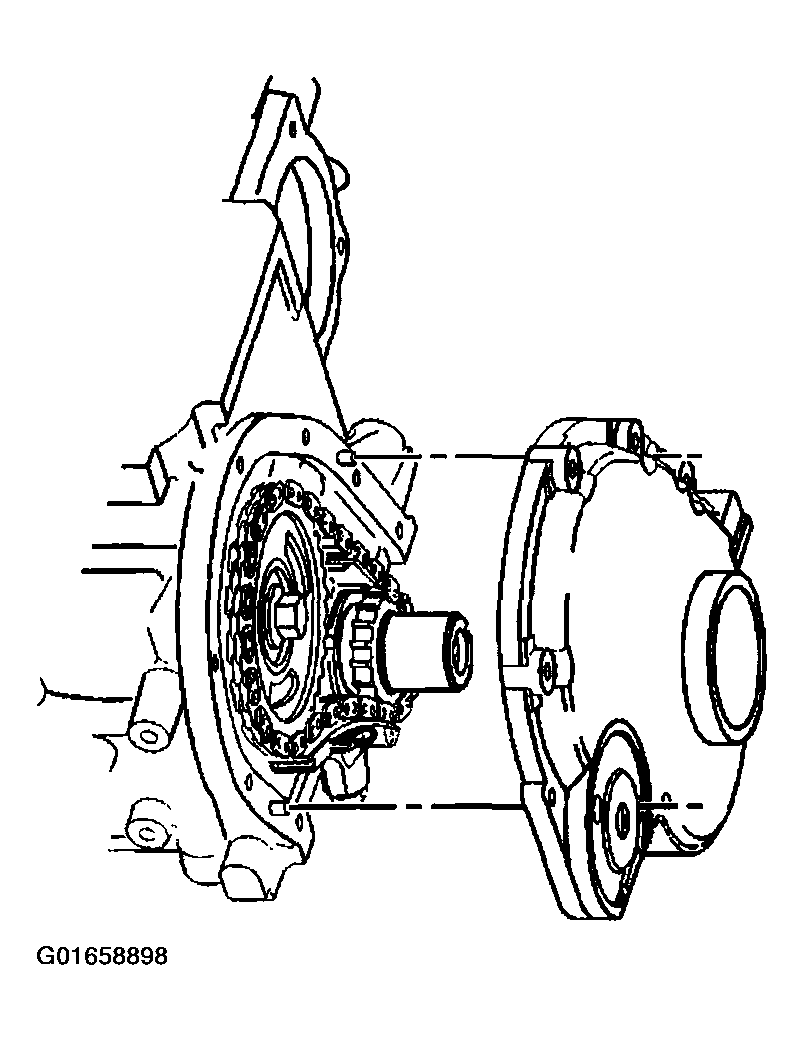

    Fig 2: Engine Front Cover
    G01658898Courtesy of GENERAL MOTORS CORP.
