Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel.
Install the flywheel spacer if a flywheel spacer is used.
Important: You must thoroughly remove the old thread adhesive from the flywheel bolts and bolt holes. Use a round nylon bristle brush in order to remove the old adhesive.

Apply Loctite® 271 GM P/N 12345493 or equivalent to all flywheel bolts. Carefully follow the instructions that are included with the thread locking compound in order to ensure that the bolts are retained properly.

NOTE: Refer to FASTENER NOTICE .
Install the flywheel bolts.
Tighten

Tighten the flywheel bolts to 75 N.m (55 lb ft).

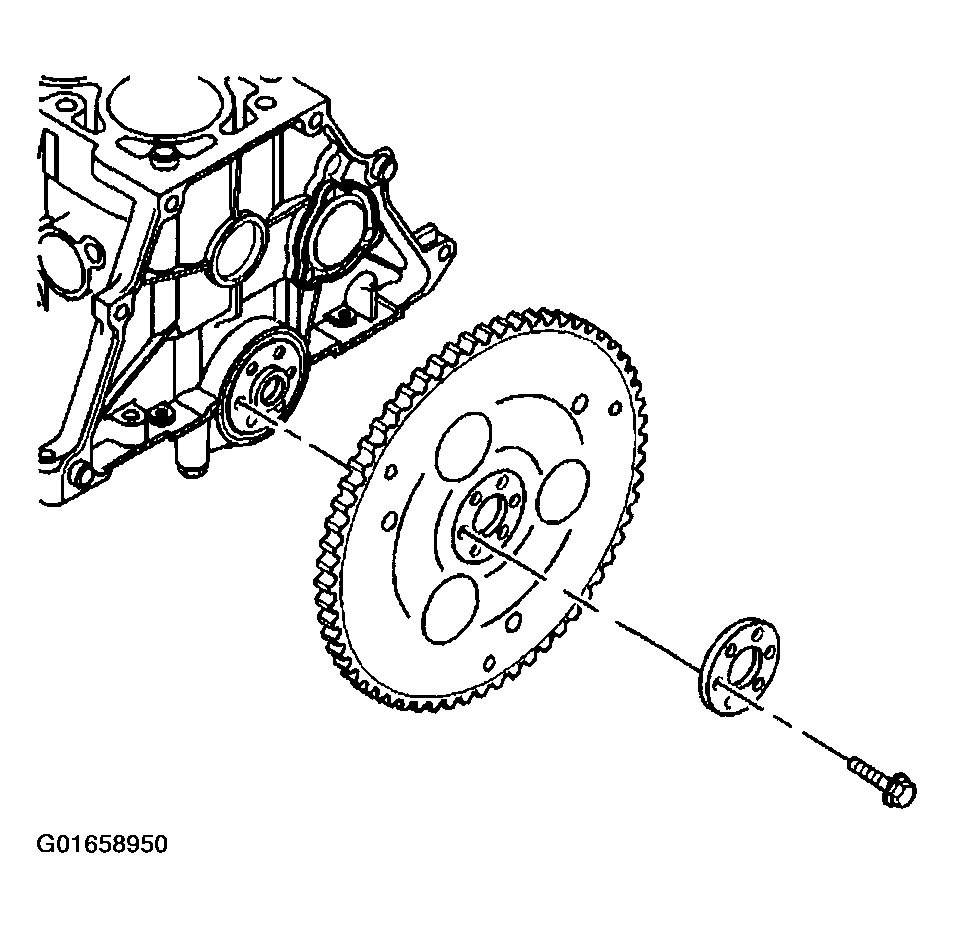

Fig 1: Engine Flywheel, Spacer & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the clutch assembly, if equipped. Refer to CLUTCH ASSEMBLY & PILOT BEARING .
Install the transmission.
- Refer to TRANSMISSION REPLACEMENT for Manual Transmission - NV 1500.
- Refer to TRANSMISSION for Automatic Transmission - 4L60-E.
