Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allowing the drive belt tensioner to snap into the free position may result in damage to the tensioner.
  1. From under the vehicle, remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the drive belt tensioner assembly bolt.
  3. Remove the drive belt tensioner assembly.

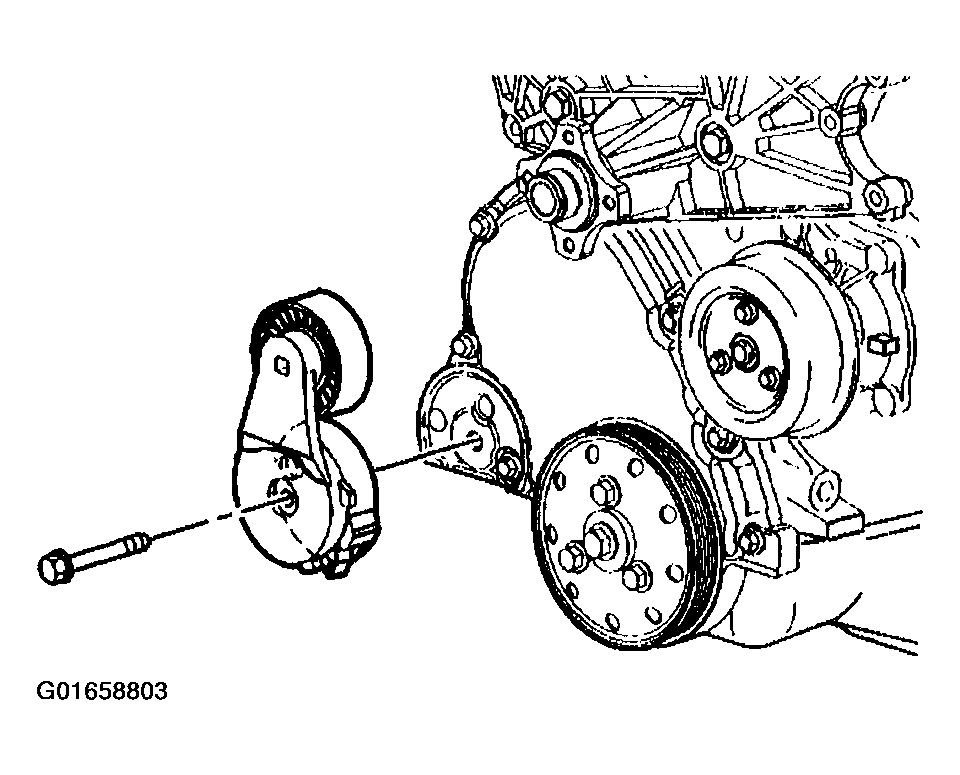

    Fig 1: Drive Belt Tensioner Assembly & Bolt
    G01658803Courtesy of GENERAL MOTORS CORP.
