Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allowing the drive belt tensioner to snap into the free position may result in damage to the tensioner.
  1. From under the vehicle, install a 3/8-inch drive wrench on the drive belt tensioner arm.
  2. Rotate the arm counter clockwise.
  3. Remove the drive belt.
  4. Slowly release the tension.

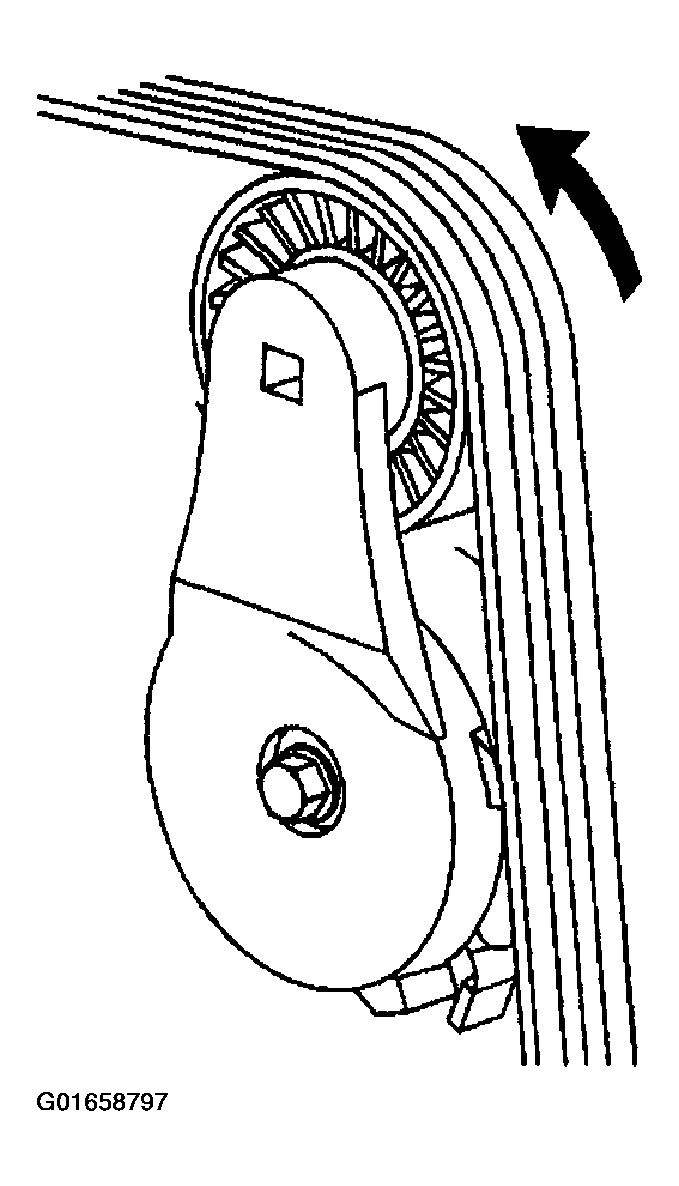

    Fig 1: Drive Belt Tensioner Arm Pulley
    G01658797Courtesy of GENERAL MOTORS CORP.
