Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the engine front cover seal contact area with engine oil.

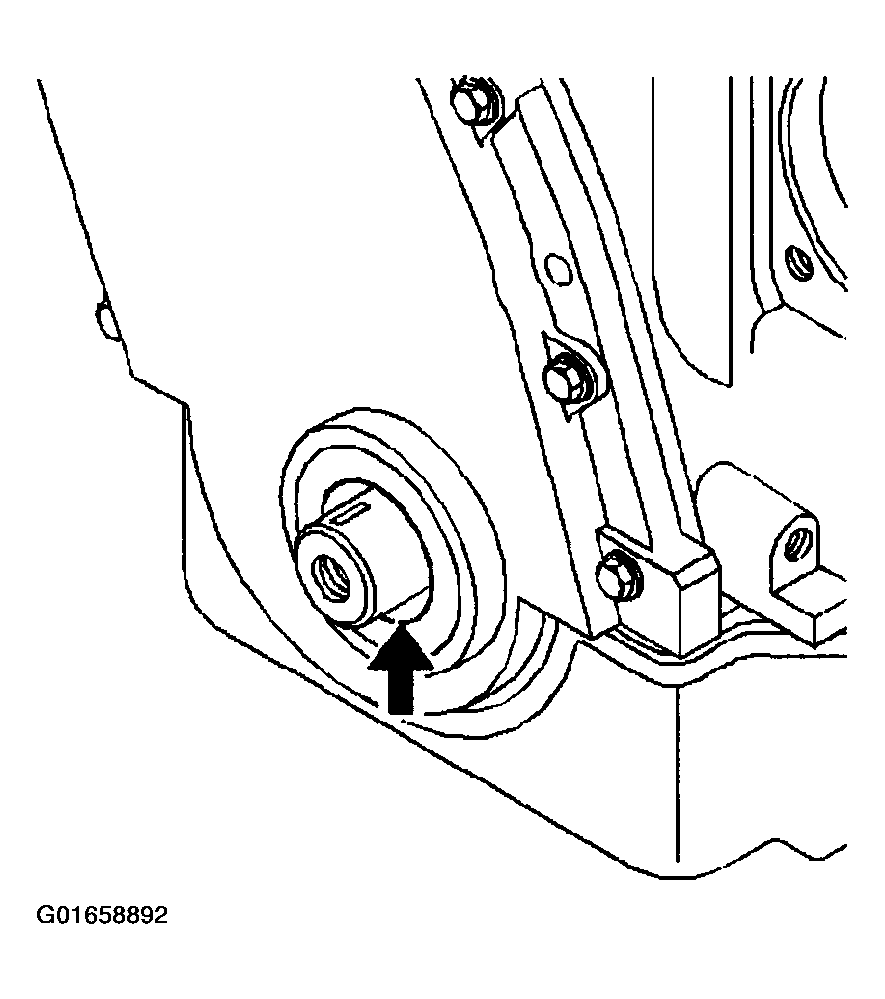

    Fig 1: Engine Front Cover Seal Contact Area
    G01658892Courtesy of GENERAL MOTORS CORP.
  2. Apply RTV sealer GM P/N 1052917 to the keyway on the crankshaft.
  3. Install the key into the keyway on the crankshaft.

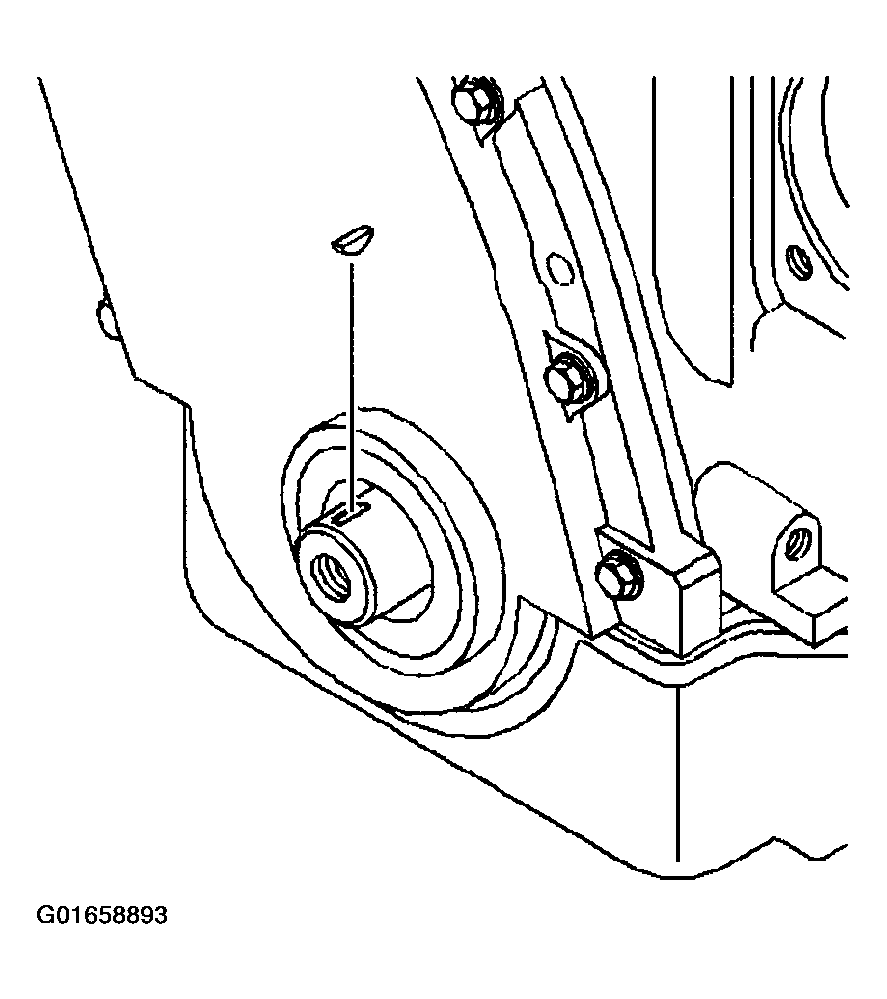

    Fig 2: Installing Key Into Crankshaft Keyway
    G01658893Courtesy of GENERAL MOTORS CORP.
  4. Install the pulley hub into position over the key on the crankshaft.

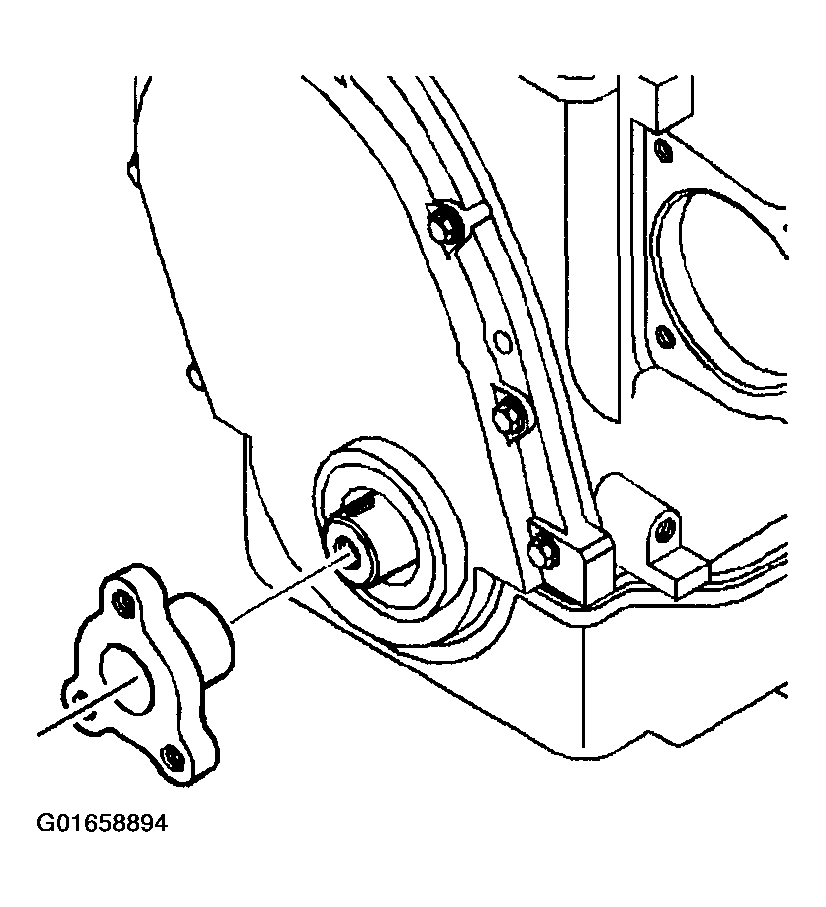

    Fig 3: Installing Pulley Hub Over Key
    G01658894Courtesy of GENERAL MOTORS CORP.
  5. Install the J 29113  through the hub and into the crankshaft so that at least 6 mm (0.24 in) of threads are engaged.
  6. Pull the crankshaft pulley hub into position against the J 29113  .
  7. Remove the J 29113  from the crankshaft.
  8. Make sure that the hub is seated against the crankshaft.

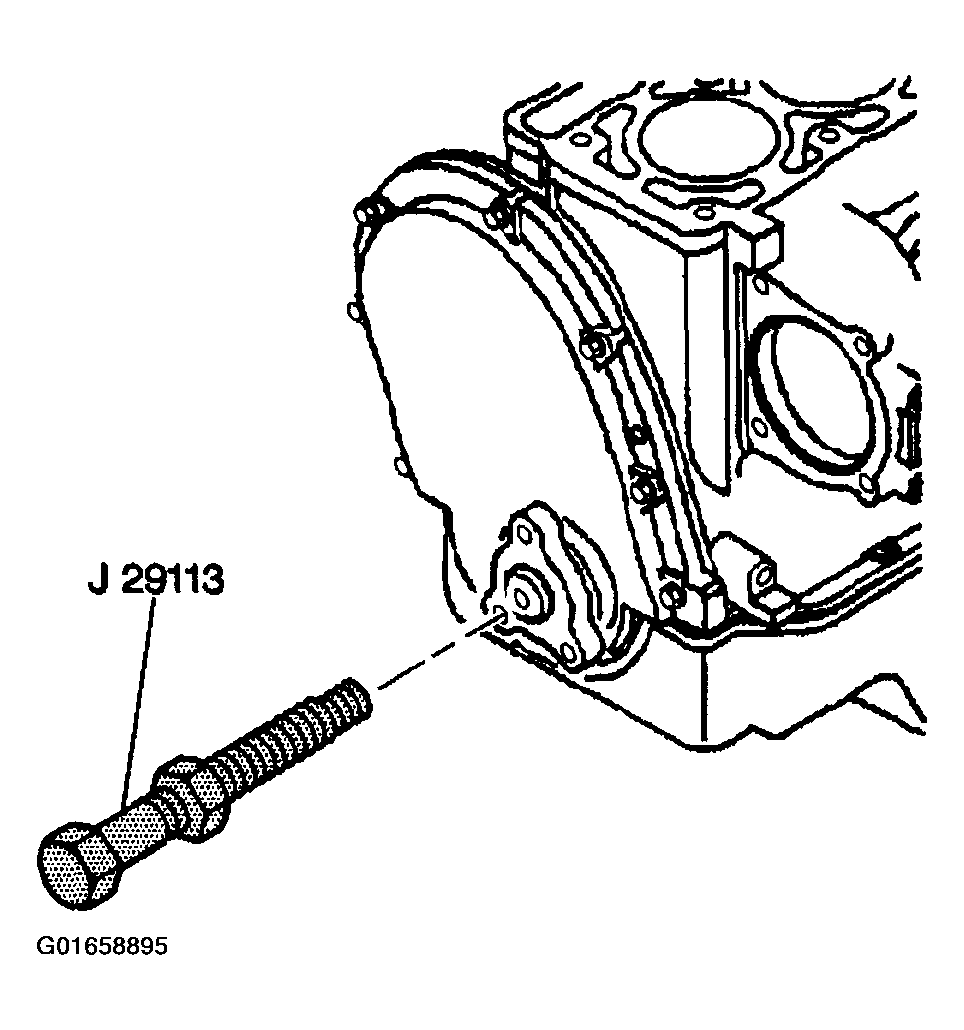

    Fig 4: J 29113 & Crankshaft Pulley Hub
    G01658895Courtesy of GENERAL MOTORS CORP.
  9. Position the crankshaft pulley over the crankshaft pulley hub.
    NOTE: Refer to FASTENER NOTICE .
  10. Install the crankshaft pulley bolts and the hub bolt and washer.

    Tighten

    • Tighten the crankshaft pulley bolts to 50 N.m (37 lb ft).
    • Tighten the crankshaft pulley to hub bolt to 105 N.m (77 lb ft).

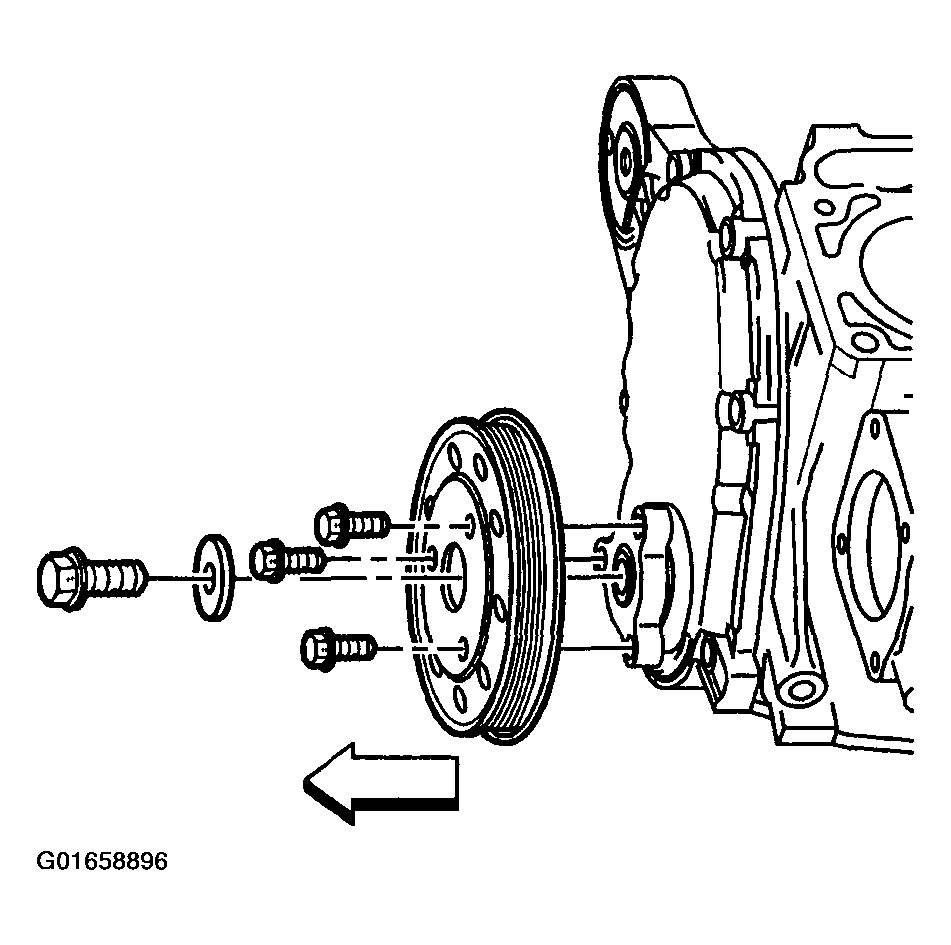

    11. Fig 5: Crankshaft Pulley, Bolts, Hub Bolt & Washer
    G01658896Courtesy of GENERAL MOTORS CORP.
  11. Lower the vehicle.
  12. Install the engine cooling fan. Refer to FAN CLUTCH REPLACEMENT .
  13. Install the fan shroud. Refer to FAN SHROUD REPLACEMENT .
  14. Install the drive belt. Refer to Drive Belt Replacement .
