Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the radiator. Refer to RADIATOR REPLACEMENT (2.2 L) or RADIATOR REPLACEMENT (4.3 L) .
  3. Remove the A/C condenser, if equipped. Refer to CONDENSER .
  4. Remove the cylinder head. Refer to Cylinder Head Replacement .
  5. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  6. Remove the valve lifters. Refer to Valve Lifter Replacement .
  7. Rotate the crankshaft until the number 1 piston is at top dead center (TDC) on the compression stroke.
  8. Remove the oil pump drive. Refer to Oil Pump Drive Replacement .
  9. Remove the camshaft position sensor. Refer to CAMSHAFT POSITION SENSOR .
  10. Remove the camshaft sprocket and the camshaft timing chain. Refer to Timing Chain and Sprockets Replacement .
  11. Remove the camshaft thrust plate bolts.

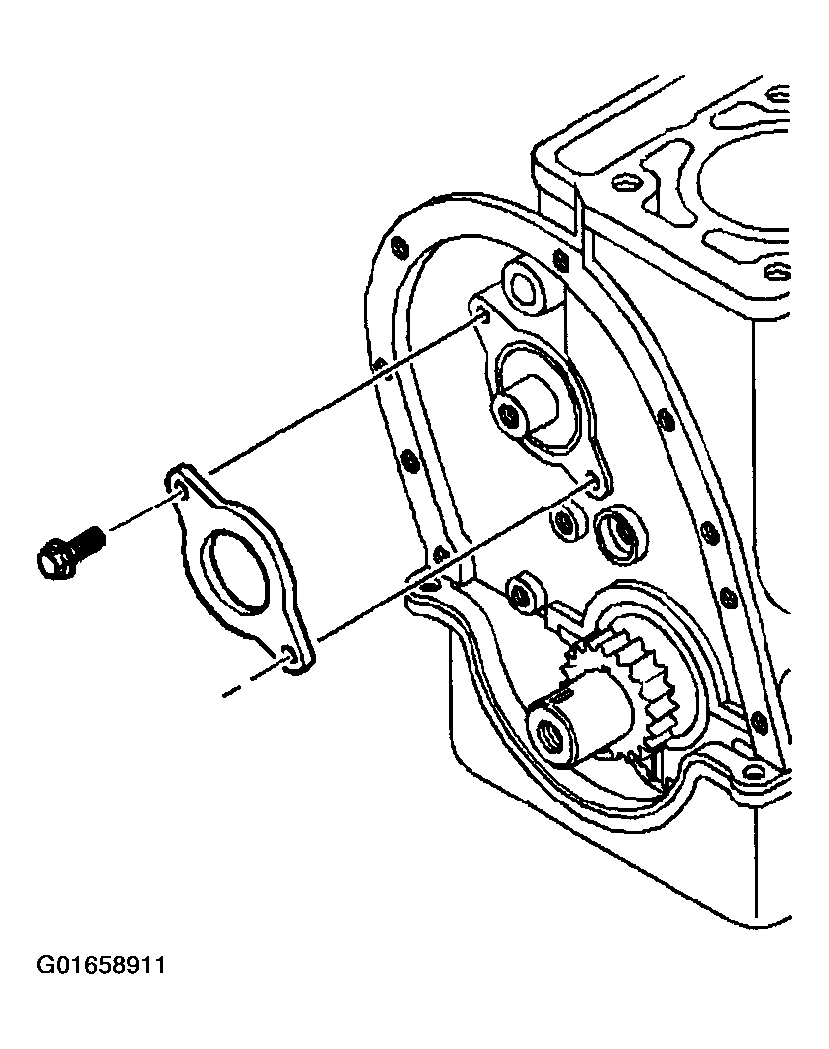

    12. Fig 1: Camshaft Thrust Plate & Bolts
    G01658911Courtesy of GENERAL MOTORS CORP.
  12. Remove the camshaft position sensor.

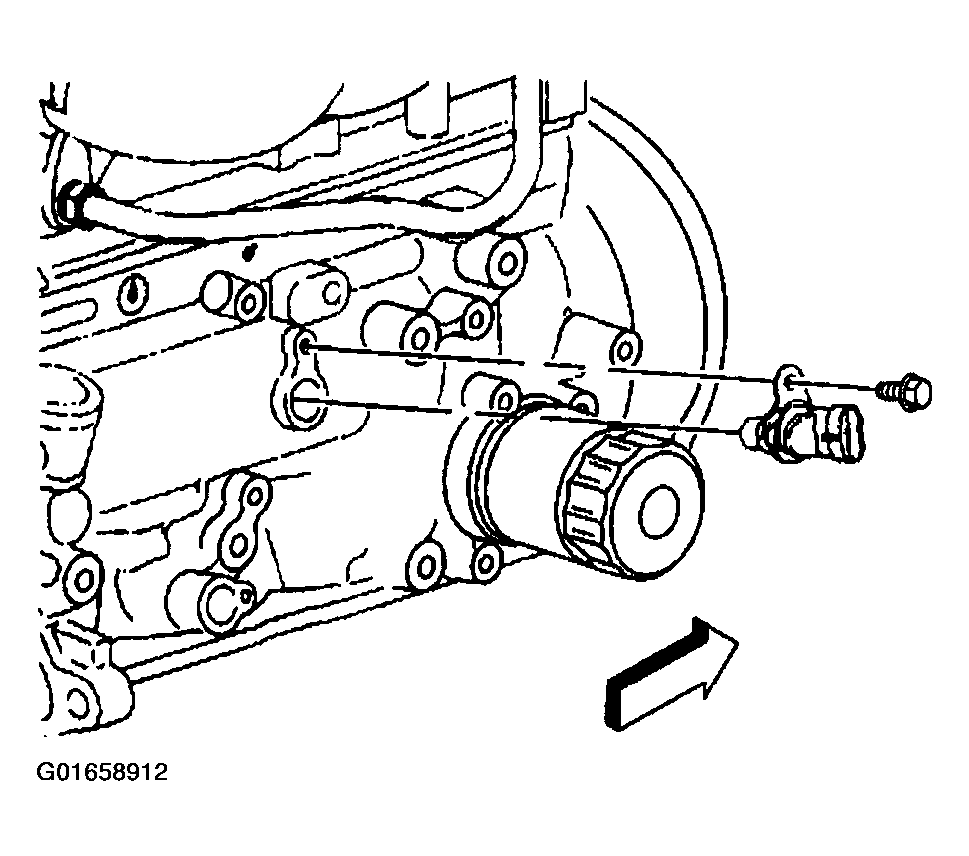

    Fig 2: Camshaft Position Sensor
    G01658912Courtesy of GENERAL MOTORS CORP.

    Important:  Do not damage the camshaft bearings while removing the camshaft.

  13. Remove the camshaft.

    Inspect the camshaft for wear or damage. Refer to CAMSHAFT AND BEARINGS CLEANING AND INSPECTION .

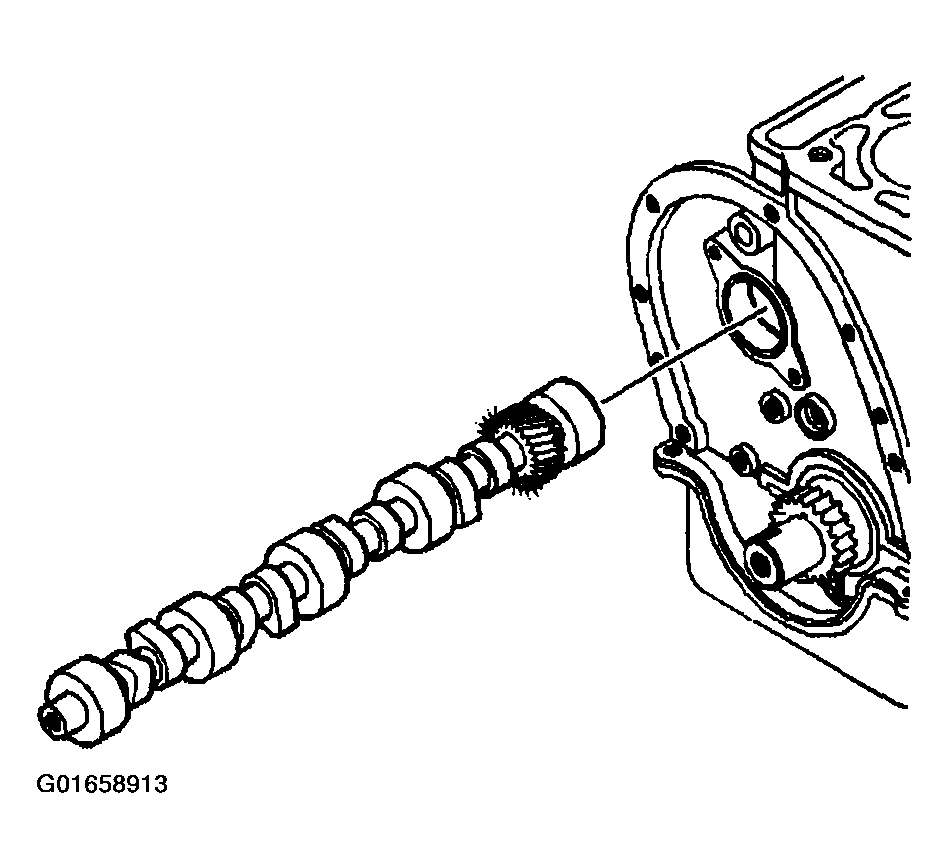

    Fig 3: Camshaft
    G01658913Courtesy of GENERAL MOTORS CORP.
