Test Description

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This test is to verify that the noise is being caused by the drive belt or the accessory drive components. When removing the drive belt the water pump will not be operating and the engine may overheat. DTCs may set when the engine is operating with the drive belt removed.
  2. 4. The inspection should include checking the drive belt tensioner and the drive belt idler pulley bearings. The drive belt may have to be installed and the accessory drive components operated separately by varying their loads. Refer to the suspected accessory drive component for the proper inspection and replacement procedure.

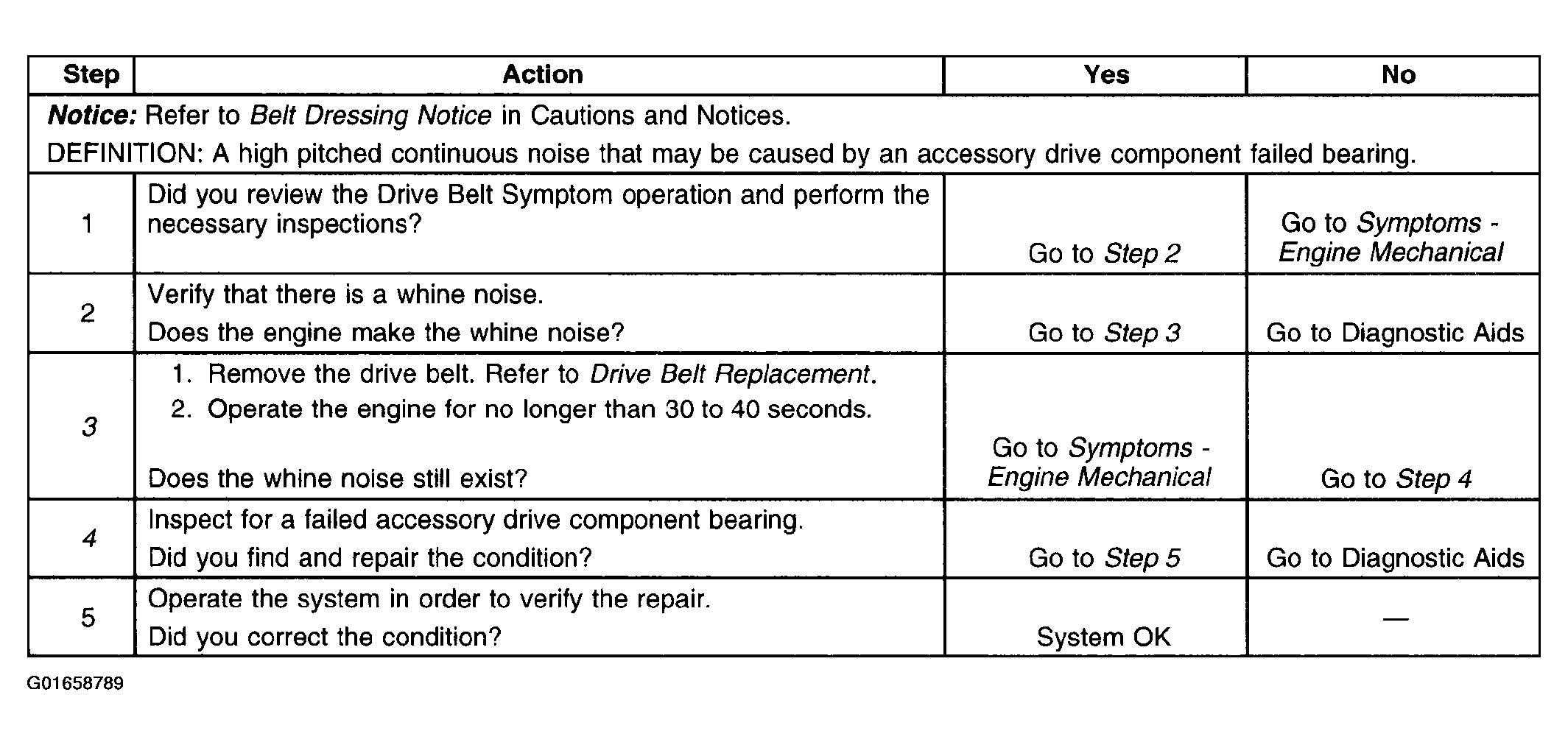

Fig 1: Drive Belt Whine Diagnosis
G01658789Courtesy of GENERAL MOTORS CORP.
