Base Engine Misfire without Internal Engine Noises

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

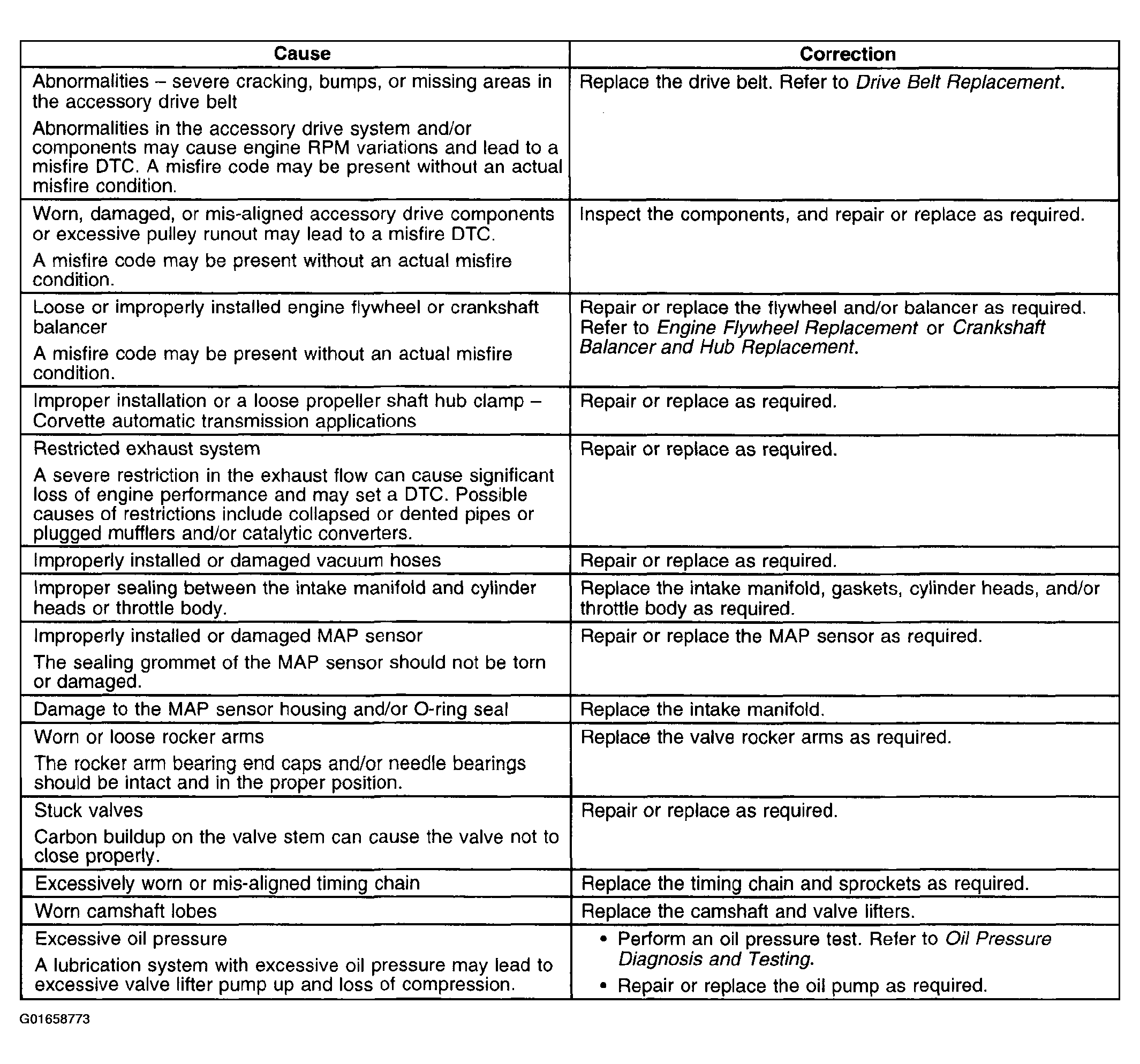

Fig 1: Base Engine Misfire Without Internal Engine Noises (1 Of 2)
G01658773Courtesy of GENERAL MOTORS CORP.

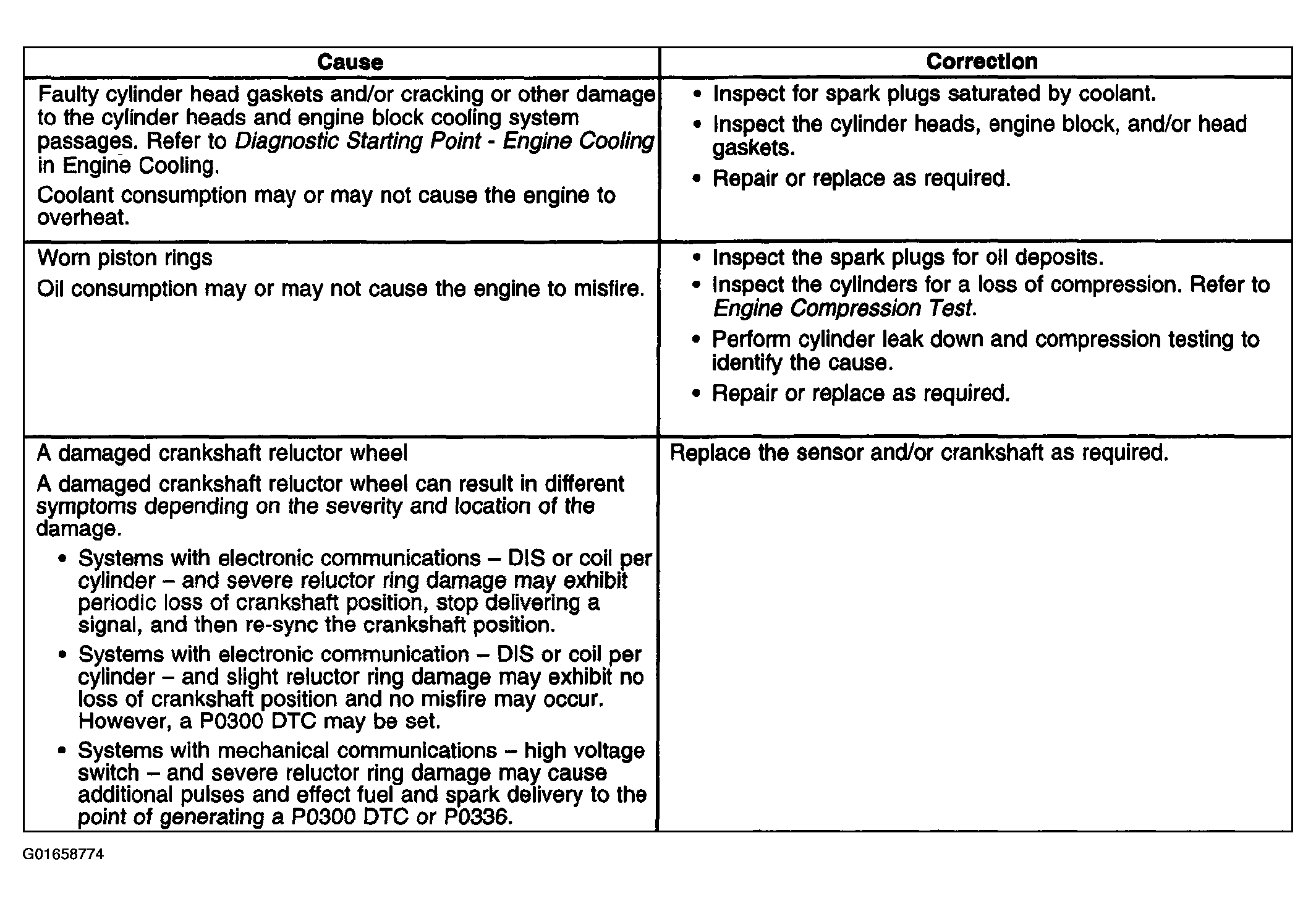

Fig 2: Base Engine Misfire Without Internal Engine Noises (2 Of 2)
G01658774Courtesy of GENERAL MOTORS CORP.
