Base Engine Misfire with Abnormal Valve Train Noise

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

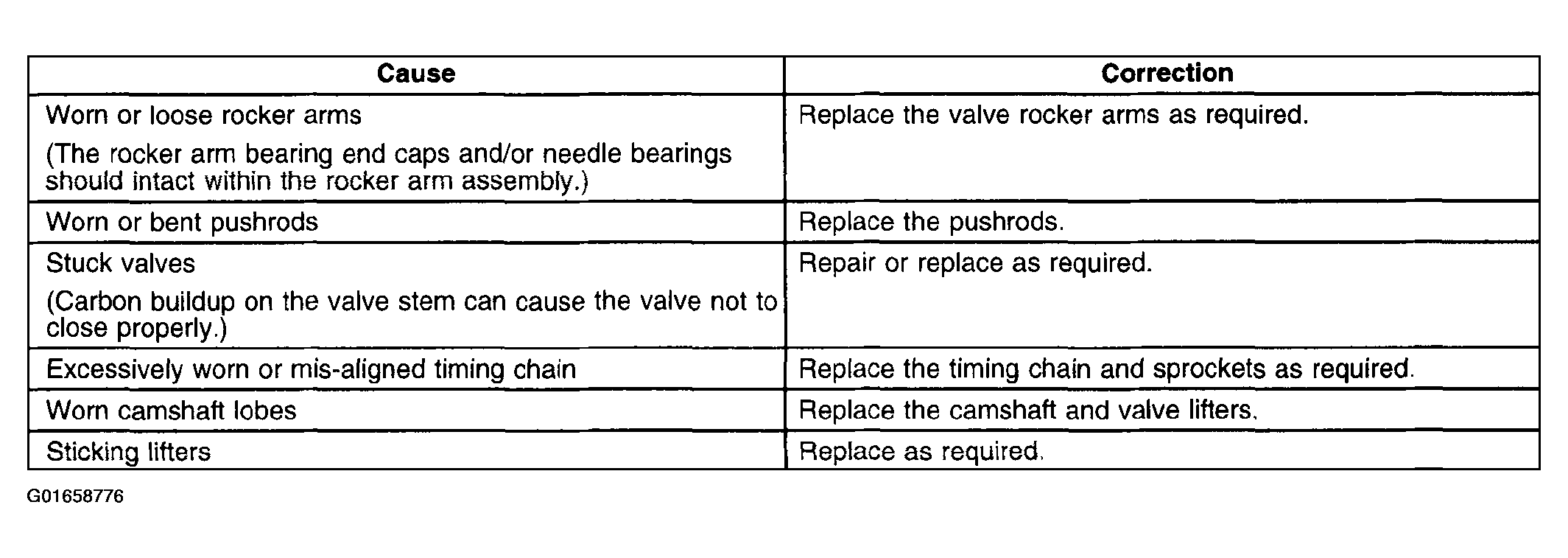

Fig 1: Base Engine Misfire With Abnormal Valve Train Noise
G01658776Courtesy of GENERAL MOTORS CORP.
