| A/C Line-To-Accumulator |
35 (48) |
| A/C Compressor Hose Assembly Retaining Bolt |
33 (45) |
| A/C Compressor Hose Assembly-To-Condenser |
21 (28) |
| A/C Compressor Discharge Hose-To-Condenser |
21 (28) |
| A/C Compressor Retaining Bolts-To-Mounting Bracket |
37 (50) |
| Auxiliary Hose Connection-To-A/C Compressor |
35 (48) |
| Auxiliary Generator Bolts |
| Long Bolts |
37 (50) |
| Short Bolts |
18 (25) |
| Battery Negative Terminal Bolt |
13 (17) |
| Battery Hold-Down Retainer Bolt |
18 (25) |
| Battery Positive Terminals |
13 (17) |
| Bell Housing Bolts |
30 (40) |
| Bumper Brackets-To-Bumper |
18 (25) |
| Bumper-To-Frame |
37 (50) |
| Camshaft Gear Bolt |
125 (170) |
| Camshaft Thrust Plate And Bearing |
17 (25) |
| CDR Retaining Bracket And Nut |
17 (23) |
| Converter Cover-To-Transmission |
24 (33) |
| Connecting Rod Cap Nuts |
48 (65) |
| Coolant Crossover Bolts/Studs |
31 (42) |
| Coolant Drain Plugs |
18 (25) |
| Crankshaft Balancer Bolt |
200 (270) |
| Crankshaft Pulley Bolts |
37 (50) |
| Crankshaft Sensor Bolt |
17 (23) |
| Cylinder Head Bolts |
| First Pass |
20 (25) |
| Second Pass |
55 (75) |
| Third Pass |
55 (75) |
| Final Pass |
Tighten an Additional 90° |
| Drive Belt Idler Pulley |
37 (50) |
| Driven Gear Bolts |
18 (25) |
| Engine Lift Bracket Bolts-To-Cylinder Head |
37 (50) |
| Engine Mount Bracket Bolts |
40 (54) |
| Engine Mount Through-Bolt Nut |
50 (68) |
| Engine Mount Bolts |
44 (59) |
| Exhaust Manifold Bolts |
26 (35) |
| Fan Clutch Nut |
42 (57) |
| Flywheel Bolts |
65 (90) |
| Front Cover Bolts |
33 (45) |
| Front Impact Bar-To-Bumper |
18 (25) |
| Fuel Injection Pump Drive Gear Retaining Bolts |
20 (25) |
| Fuel Injection Pump Nuts |
30 (40) |
| Fuel Line Bracket Nuts |
17 (23) |
| Fuel Pipe Bracket Retaining Nuts |
17 (23) |
| Glow Plugs |
13 (17) |
| Glow Plug Relay Retaining Nuts |
37 (42) |
| Hood Latch-To-Radiator Support |
11 (15) |
| Hood Hinge Pivot Bolts And Nuts |
18 (25) |
| Idle Air Control Sensor |
18 (25) |
| Idler Pulley-To-Engine Lift Bracket |
37 (50) |
| Injection Pump Flange Nuts |
30 (40) |

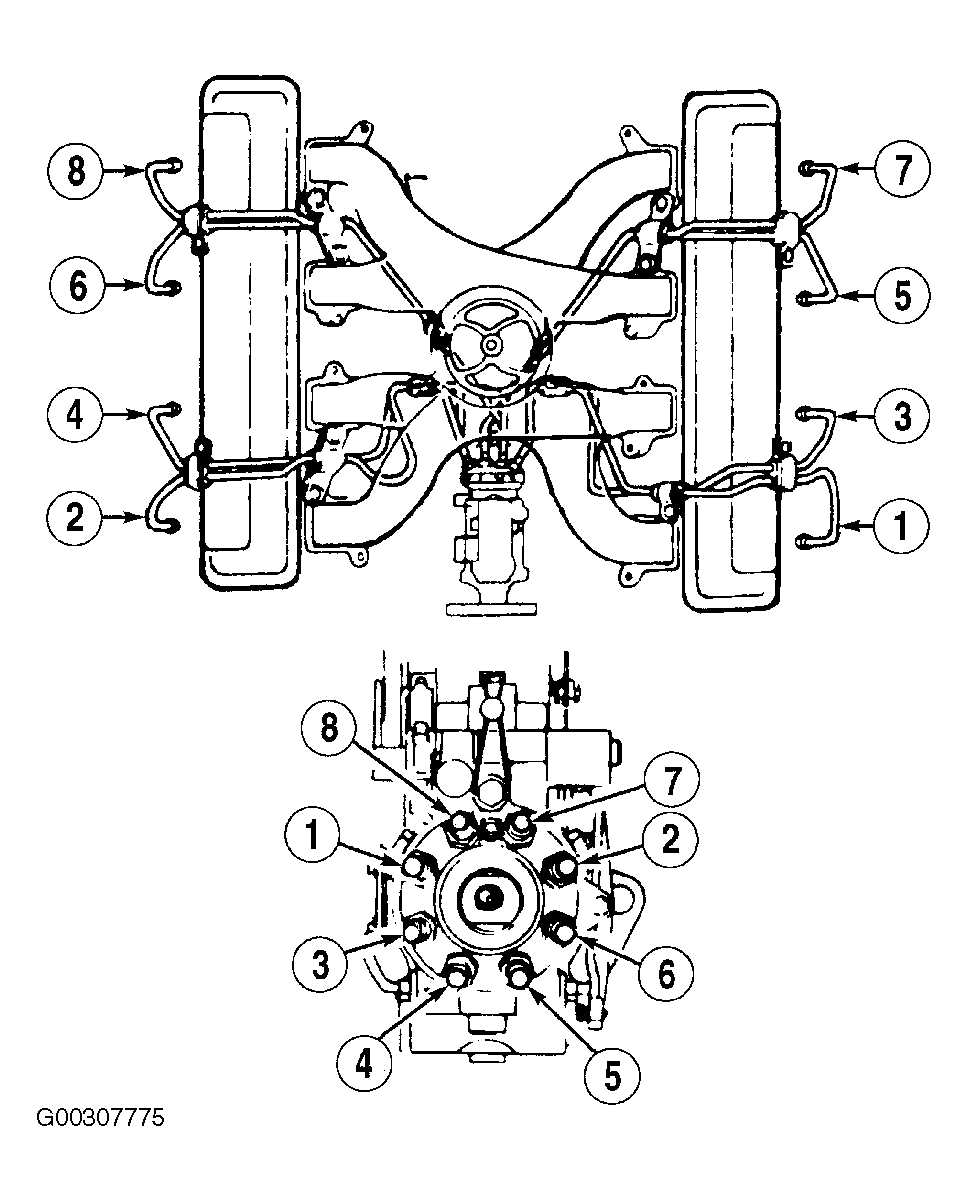

| Injection Line Fittings |
18 (25) |
| Injection Nozzle |
18 (25) |
| Intake Lower Center Manifold Bolts |
17 (23) |
| Intake Manifold Bolts/Studs |
31 (42) |
| Oil Cooler Line Fittings |
55 (75) |
| Oil Cooler Lines-To-Auxiliary Oil Cooler |
17 (23) |
| Oil Fill Neck Nuts |
17 (23) |
| Oil Filter Adapter Bolt |
20 (27) |
| Oil Gallery Plugs |
25 (34) |
| Oil Level Indicator Tube Nut |
16 (22) |
| Oil Level Indicator Tube Brackets |
| Bolt |
35 (47) |
| Nut |
18 (25) |
| Oil Pan (Rear Two Bolts) |
17 (23) |
| Oil Pan Drain Plug |
18 (25) |
| Oil Pressure Switch |
9 (12) |
| Oil Pump Bolt |
65 (90) |
| Oil Pump Cover Screws |
12 (16) |
| Oil Pump Driver Clamp Bolt |
31 (42) |
| Positive Lead-To-Generator Output (BAT) Nut |
13 (18) |
| Power Steering Pump Assembly-To-Engine |
37 (50) |
| Power Steering Pressure Hose-To-Pump |
20 (27) |
| Radiator Support Bolts |
18 (25) |
| Shift Cable Bracket And Shield |
18 (25) |
| Starter Motor Bolts |
33 (45) |
| Starter Motor Bracket Bolt-To-Engine |
13 (17) |
| Surge Tank Bolt |
97 (11) |
| Tensioner Assembly Bolt |
37 (50) |
| Thermostat Housing Bolts/Studs |
31 (42) |
Thermostat Housing Crossover Bolts & Nuts
|
35 (47) |
| Timing Chain Sprocket Bolt-To-Camshaft |
125 (170) |
| Torque Converter-To-Engine Flywheel |
46 (63) |
| Torque Converter Cover Bolts |
24 (33) |
| Transmission-To-Engine Studs And Bolts |
34 (47) |
| Transmission Mount Support |
37 (50) |
| Transmission Support-To-Frame |
50 (68) |
| Turbocharger Mounting Bolts |
48 (65) |

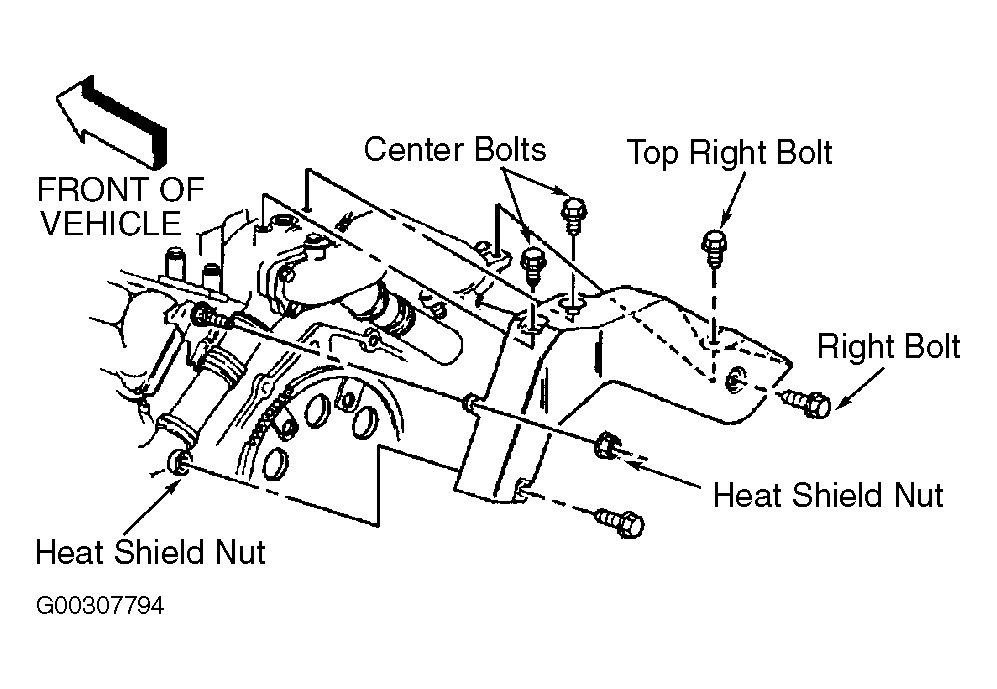

| Turbo Charger Heat Shield Mounting Bolts And Nuts |
| First Pass Tighten Right & Top Bolts |
22 (30) |
| Second Pass, Tighten Center Bolts |
17 (22) |
| Third Pass, Tighten Heat Shield Nuts |
22 (30) |
| Upper Intake Manifold Bolts |
17 (23) |
| Valve Lifter Guide Plate Clamp Bolts |
20 (27) |
| Valve Rocker Arm Cover Bolts |
20 (27) |
| Valve Rocker Arm Shaft Bolts |
40 (55) |
| Wastegate Solenoid Mounting Bracket Retaining Nuts |
17 (23) |
| Water Pump Plate to Front Cover Bolts |
20 (28) |
| Water Pump Plate to Water Pump Bolts |
20 (28) |
| Water Pump Pulley Mounting Bolts |
18 (25) |
| Water Pump-To-Front Cover Bolts |
32 (42) |
| Wheel Lug Nuts |
175 (240) |
| INCH Lbs. (N.m) |
| Air Cleaner Mounting Bolts |
97 (11) |
| Air Baffle Retaining Bolts-To-Radiator Support |
106 (12) |
| Air Inlet Grille Panels-To-Cowl Vent Screws |
97 (11) |
| Battery Cable-To-Starter Solenoid |
89 (10) |
| Boost Sensor Retaining Bolts |
27 (4) |
| Condenser Retaining Bolts |
89 (10) |
| Coolant Recovery Reservoir Bolt |
97 (11) |
| Crankcase Depression Regulator (CDR) Clamp |
15 (2) |
| Engine Oil Cooler Retaining Bracket Bolts |
106 (12) |
| Fan Shroud Retaining Bolts |
| Lower Retaining Bolts |
71 (8) |
| Upper-To-Lower Bolts |
71 (8) |
| Upper Fan Shroud-To-Top Of The Radiator |
71 (8) |
| Exhaust Pipe Clamps |
90 (10) |
| Glow Plug Relay Power Supply Terminal Nuts |
44 (4) |
| Ground Wire Bolt |
89 (10) |
| Ignition Switch Wires-To-Solenoid |
53 (6) |
| Junction Block Nut |
89 (10) |
| Oil Cooler-To-Radiator Support |
89 (10) |
| Oil Level Indicator Tube Bracket Bolt |
36 (4) |
| Oil Pan (All Except Rear Two Bolts) |
89 (10) |
| Oil Sending Unit |
106 (12) |
| Positive Battery Lead-To-Starter Solenoid |
89 (10) |
| Radiator Grille-To-Radiator Support |
9 (1) |
| Starter-To-Starter Motor Bracket Nut |
89 (10) |
| Step Pad Extension Nuts (For Bumper) |
13 (2) |
| Surge Tank Retaining Bolt |
53 (6) |
| Transmission Fluid Tube-To-Engine Bolt |
89 (10) |
| Tubes Lower Support Bolt |
44 (4) |
| Upper Intake Duct Clamp |
35 (4) |
| Wastegate Solenoid Retaining Bolts |
27 (4) |
