Engine Lubrication System: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

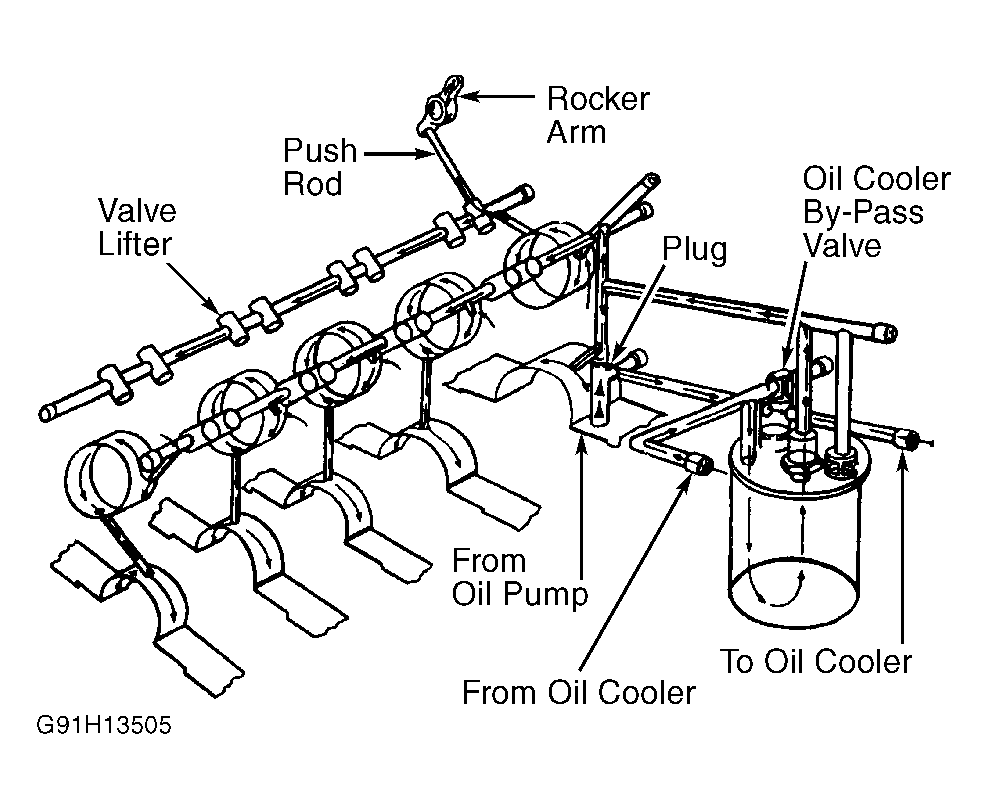

Pressurized lubrication is provided by gear-type oil pump. See Fig 1. Camshaft drives oil pump through shaft of a gear-driven engine speed sensor. Lubrication flows through external oil cooler, then into full-flow oil filter. Nonadjustable oil pressure regulator valve is located in oil pump body. Main oil gallery supplies oil through drilled passages to camshaft and crankshaft bearings. Oil flows through galleries to valve lifters, then through hollow push rods to rocker arms.
NOTE:
Manufacturer recommends changing oil filter at every oil change.
