Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Remove the ignition coils (1, 2, 3, 4).

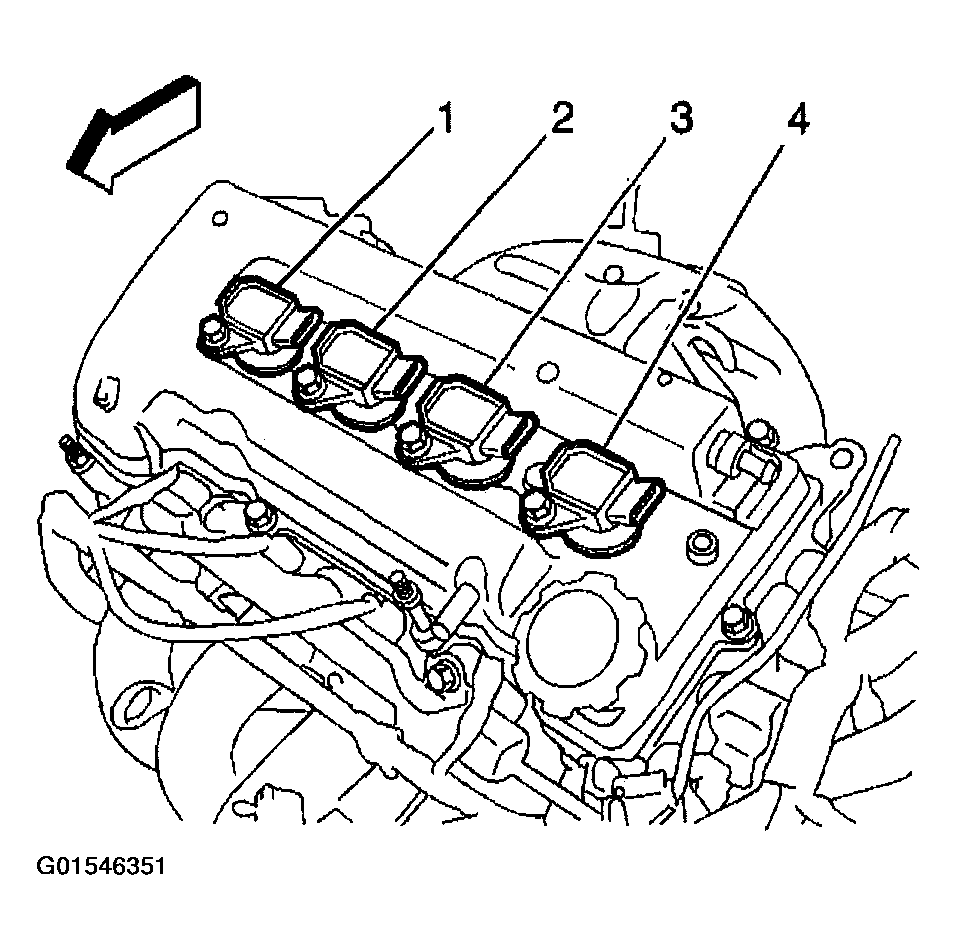

    Fig 1: Removing Ignition Coils
    G01546351Courtesy of GENERAL MOTORS CORP.
  4. Remove the spark plugs.

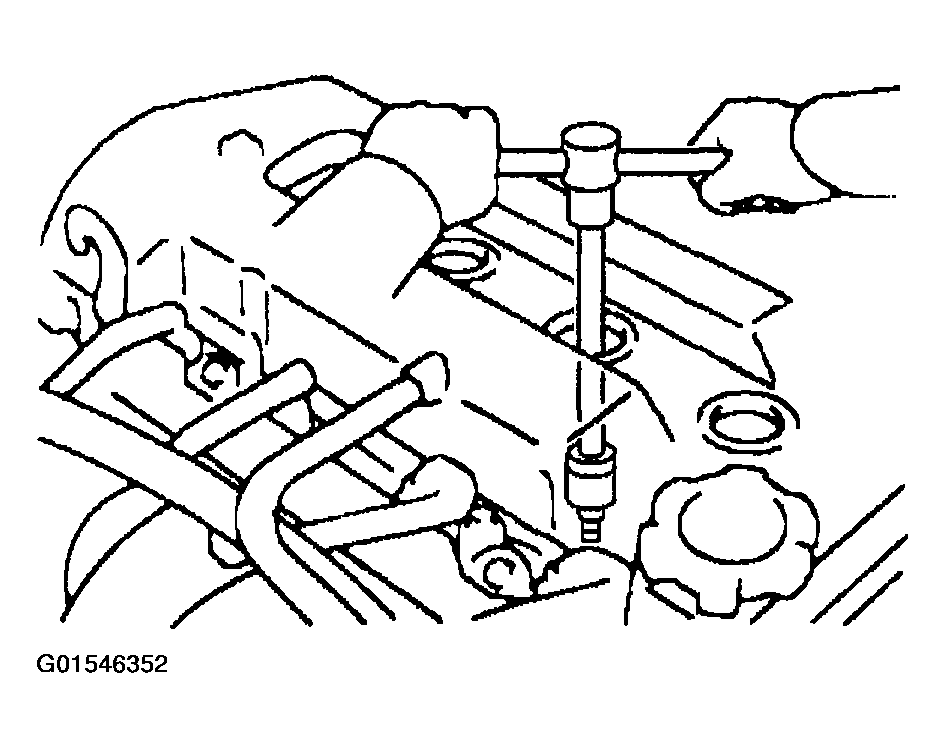

    Fig 2: Removing Spark Plugs
    G01546352Courtesy of GENERAL MOTORS CORP.
  5. Rotate the engine to top dead center on the number one cylinder.

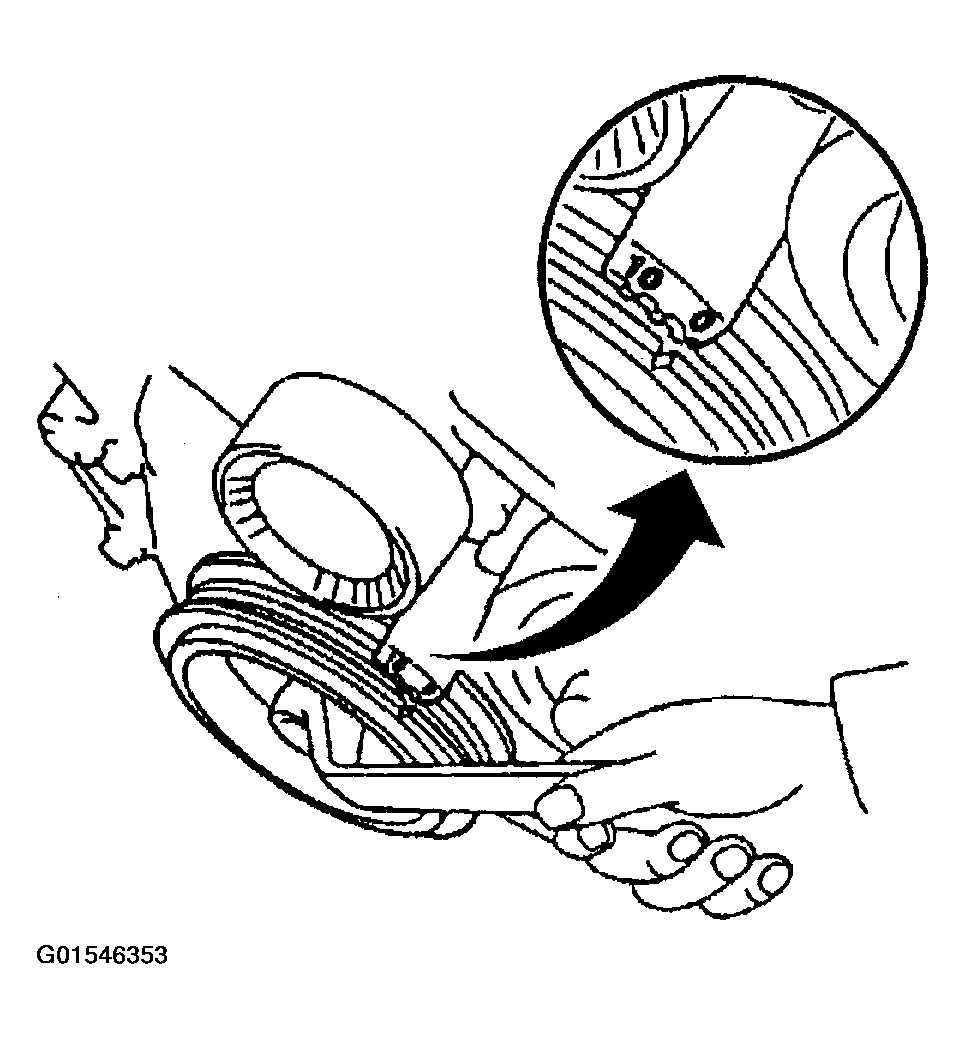

    Fig 3: Rotating Engine To Top Dead Center
    G01546353Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 timing chain tensioner bolts (1, 2).
  7. Remove the timing chain tensioner.

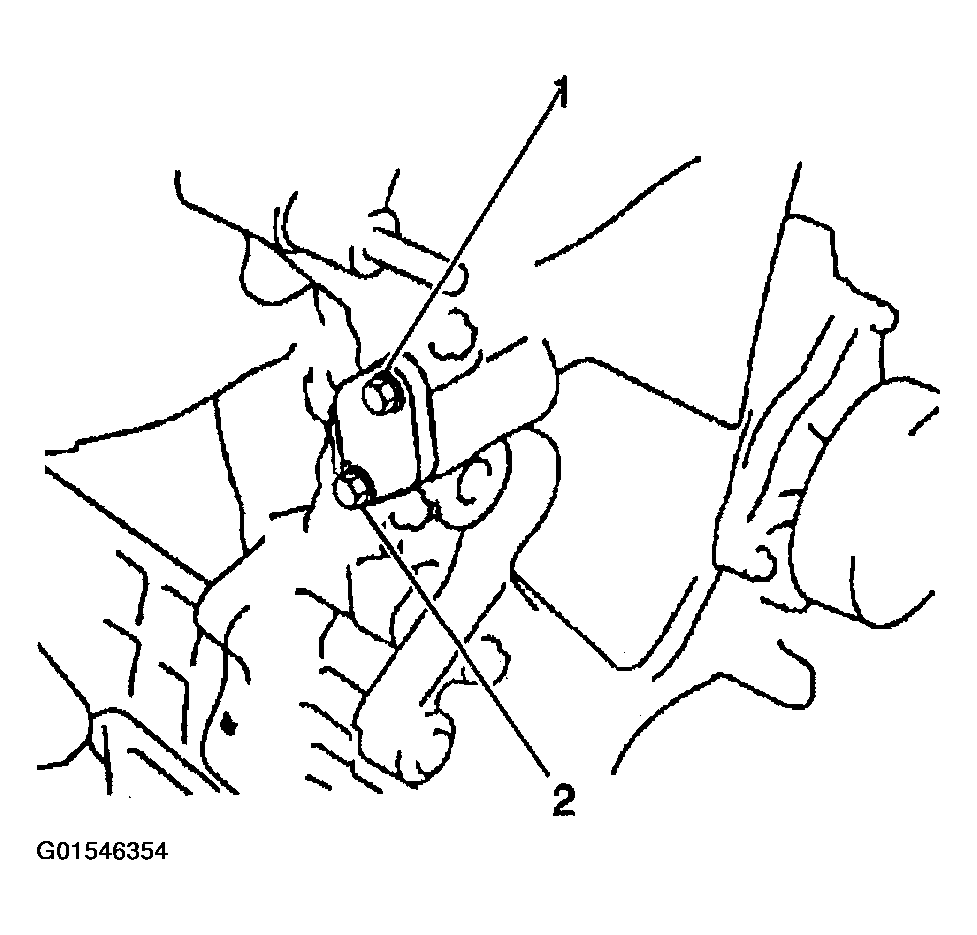

    Fig 4: Removing Timing Chain Tensioner
    G01546354Courtesy of GENERAL MOTORS CORP.
