Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Release the ratchet pawl.
Fully depress the plunger (4). Apply the hook (2) to the pin (3).

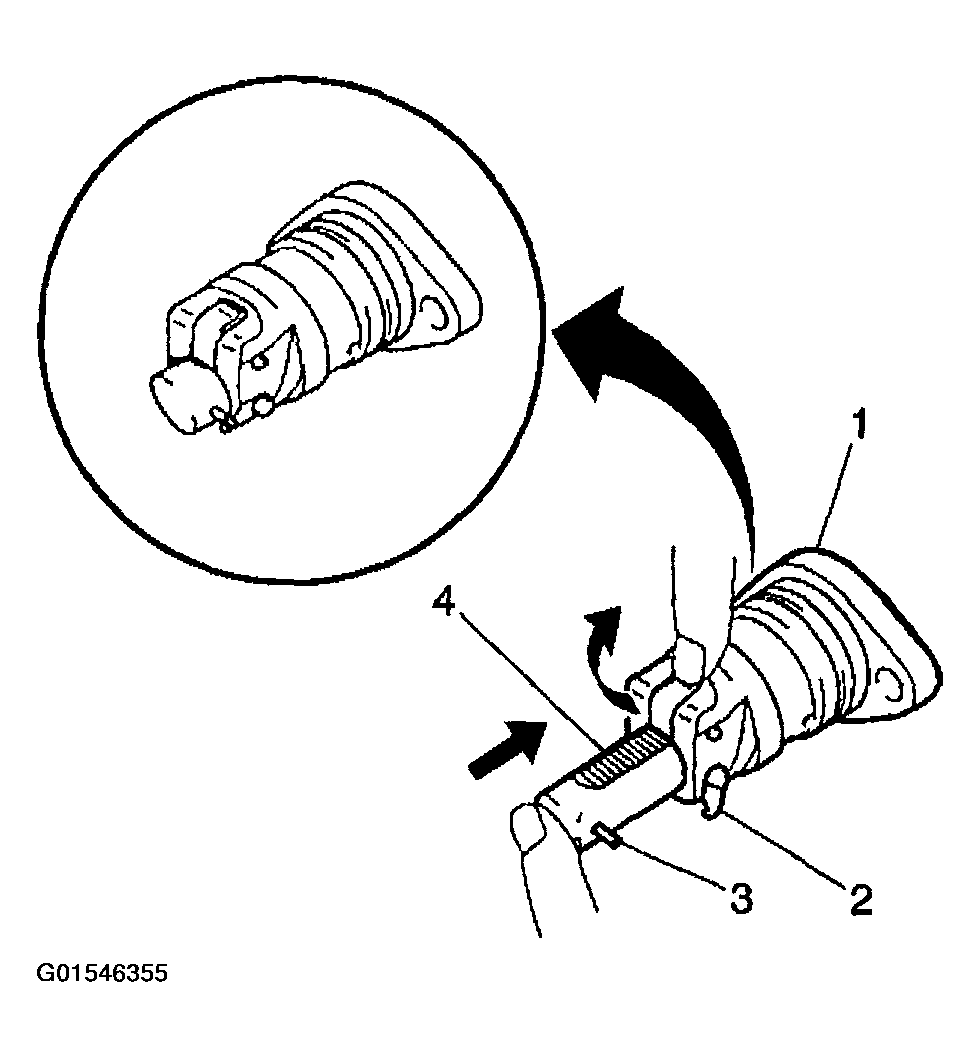

Fig 1: Preparing Timing Chain Tensioner
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the timing chain tensioner into the timing chain cover. Secure the timing chain tensioner using 2 bolts (1).
Tighten

Tighten the timing chain tensioner bolts to 9 N.m (80 Ib. in).

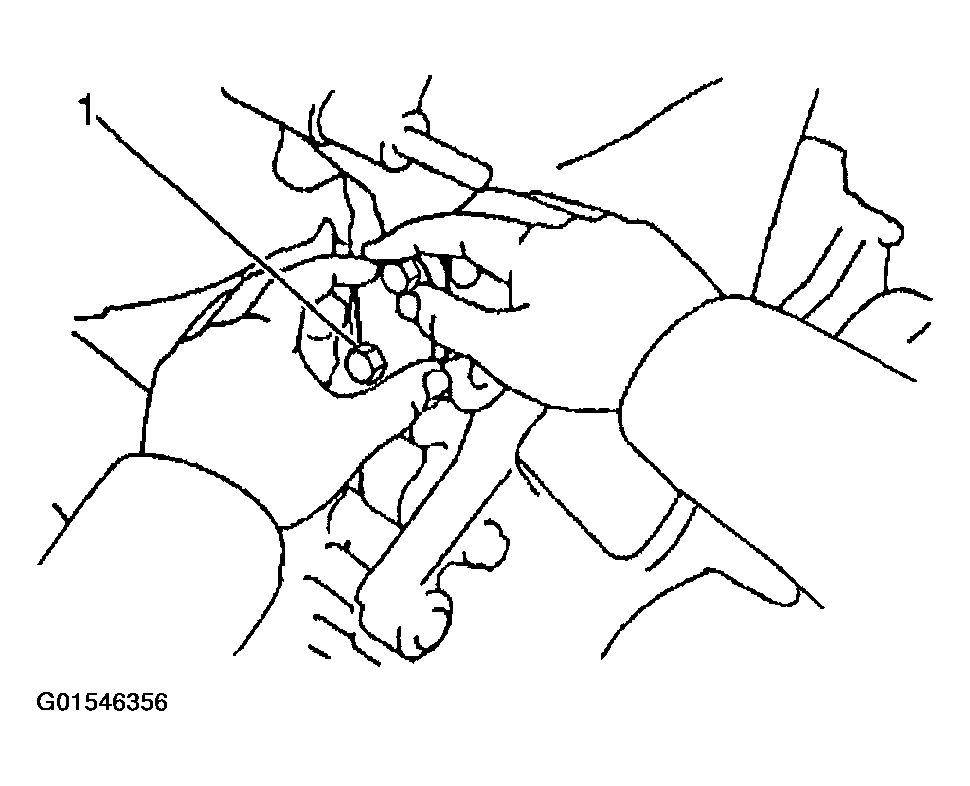

Fig 2: Installing Timing Chain Tensioner
Courtesy of GENERAL MOTORS CORP.
Rotate the engine approximately 1 revolution in order to release the plunger on the timing chain tensioner.
Install the spark plugs.
Tighten

Tighten the spark plugs to 28 N.m (21 Ib. ft).

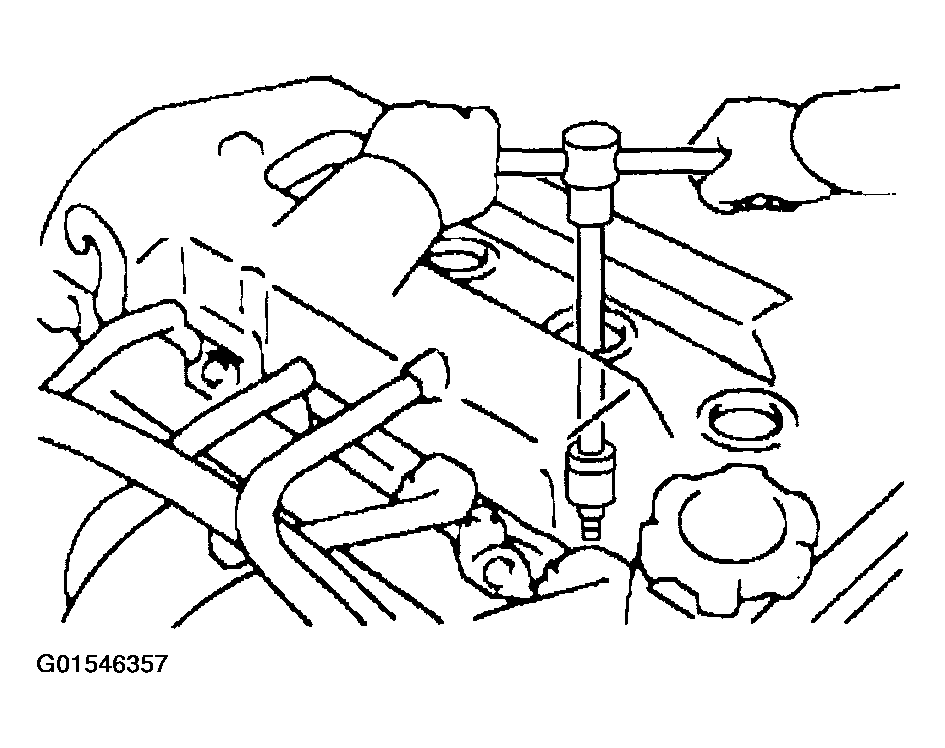

Fig 3: Installing Spark Plugs
Courtesy of GENERAL MOTORS CORP.
Install the ignition coils (1, 2, 3, 4).

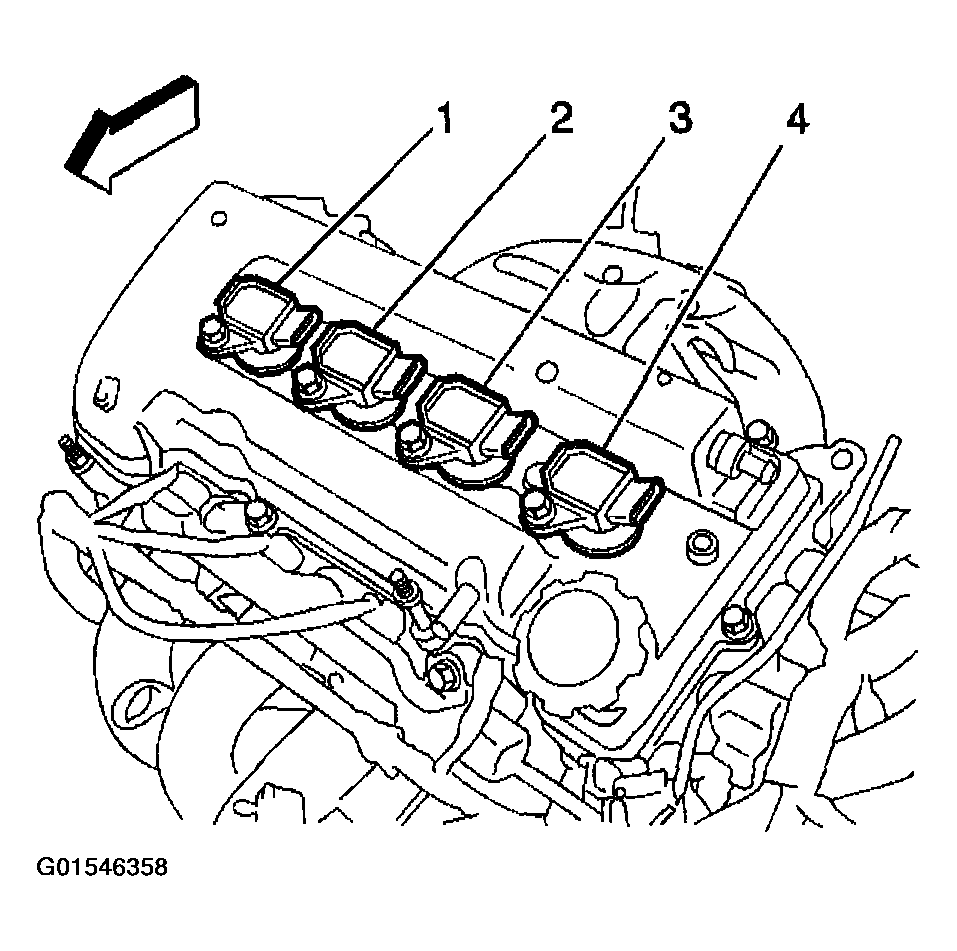

Fig 4: Installing Ignition Coils
Courtesy of GENERAL MOTORS CORP.
Install the engine cover.
Connect the negative battery cable.
Tighten

Tighten the battery cable bolt to 15 N.m (11 Ib. ft).
