Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. 827374

    Install the PCV valve (1) into the cylinder head.

    Tighten

    Tighten the PCV valve to 27 N.m (13 Ib. ft).

  2. Connect the PCV valve hose (3) to the PCV valve (1).
  3. Secure the PCV valve hose with one clamp (2).

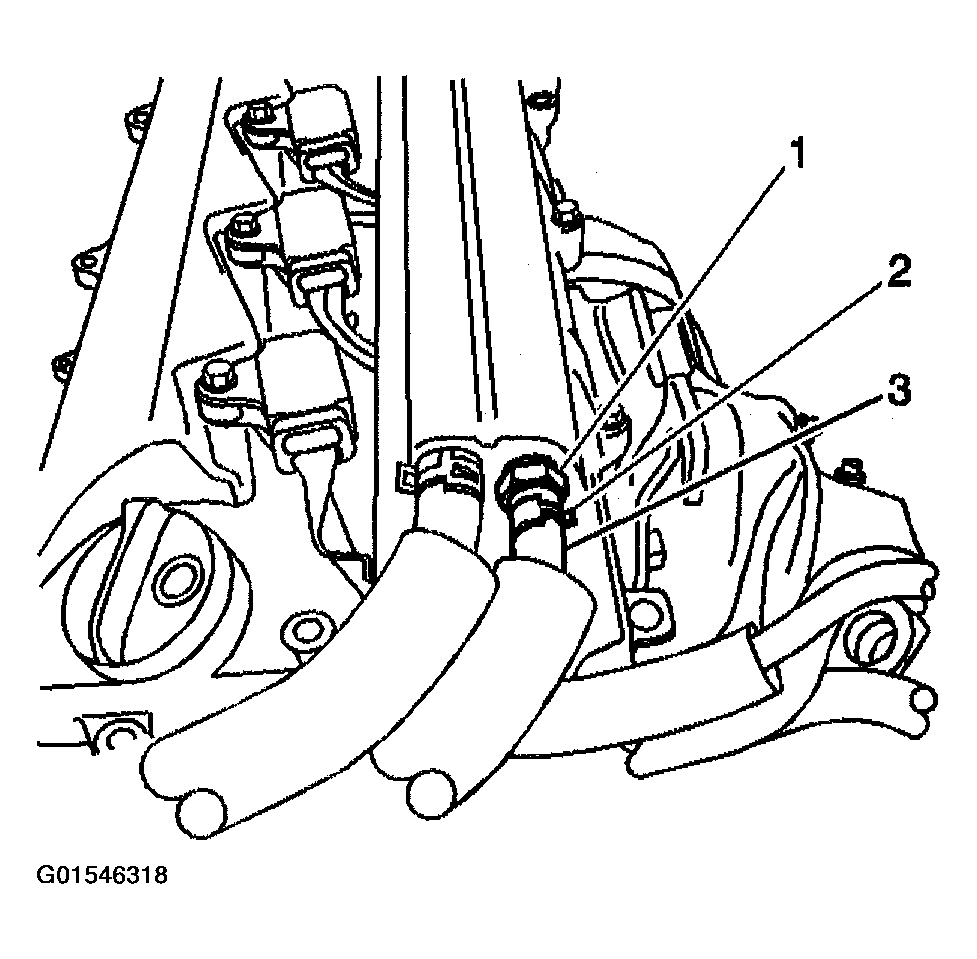

Fig 1: Installing PCV Valve
G01546318Courtesy of GENERAL MOTORS CORP.
