Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Engage the ridges of the oil pump drive rotor with the flat sections of the crankshaft.

  1. Install the oil pump. Use a new oil pump gasket.
    NOTE: Refer to FASTENER NOTICE .
  2. Use the five oil pump bolts in order to secure the oil pump.

    Tighten

    Tighten the oil pump bolts to 11 N.m (97 Ib. in).

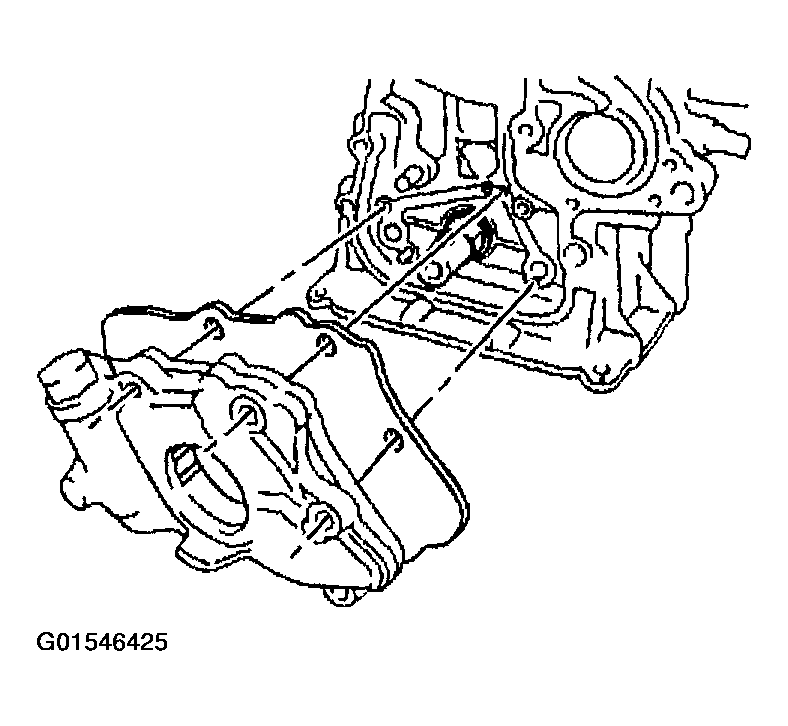

    3. Fig 1: Installing Oil Pump
    G01546425Courtesy of GENERAL MOTORS CORP.
  3. Install the timing chain. Refer to Timing Chain and Sprockets Replacement .
