Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a continuous bead of silicon sealant GM P/N 12346240 (Canadian P/N 10953493) or an equivalent, to the engine oil pan mating surface.

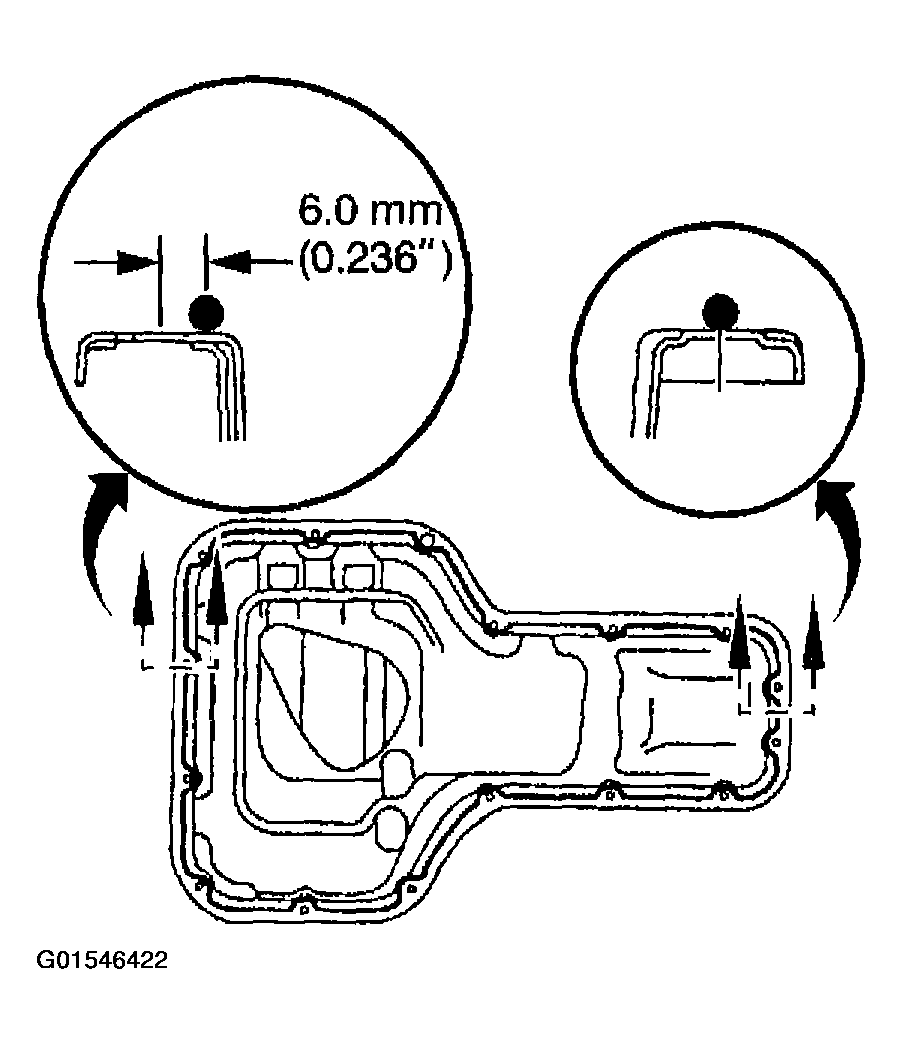

    Fig 1: Applying Sealant
    G01546422Courtesy of GENERAL MOTORS CORP.
  2. Install the engine oil pan.
    NOTE: Refer to FASTENER NOTICE .
  3. Use the following components to secure the engine oil pan:
    • 12 bolts (2,4-13, 15)
    • Two nuts (1,3, 14, 16)

      Tighten

      Tighten the engine oil pan bolts and the nuts to 9 N.m (80 Ib. in).

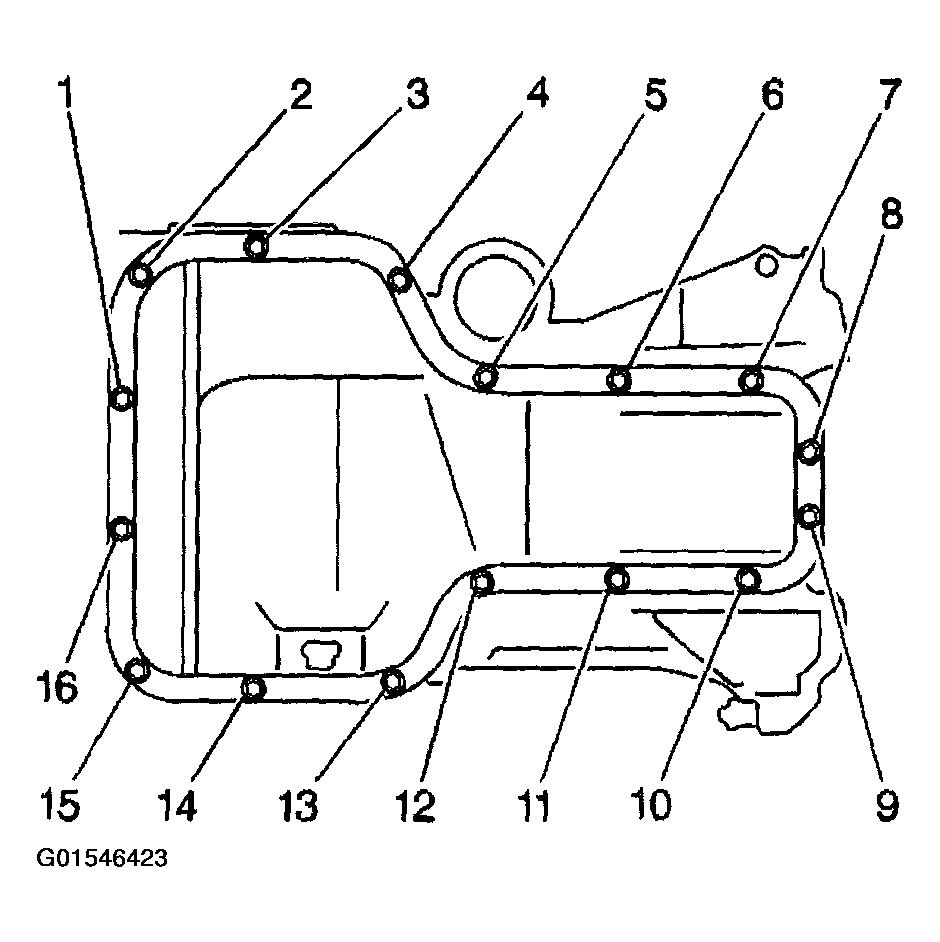

      • Fig 2: Installing Oil Pan
      G01546423Courtesy of GENERAL MOTORS CORP.
  4. Install flywheel cover.
  5. Install the left side engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE - LEFT .
  6. Install the engine oil drain plug and the gasket.

    Tighten

    Tighten the engine oil drain plug to 35 N.m (26 Ib. ft).

  7. Lower the vehicle.
  8. Fill the engine oil. Refer to Fluid and Lubricant Recommendations  in MAINTENANCE .
  9. Inspect the oil pressure.
