Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Raise and properly support the engine. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the right side engine mount-to-engine bracket bolts and nuts (1).

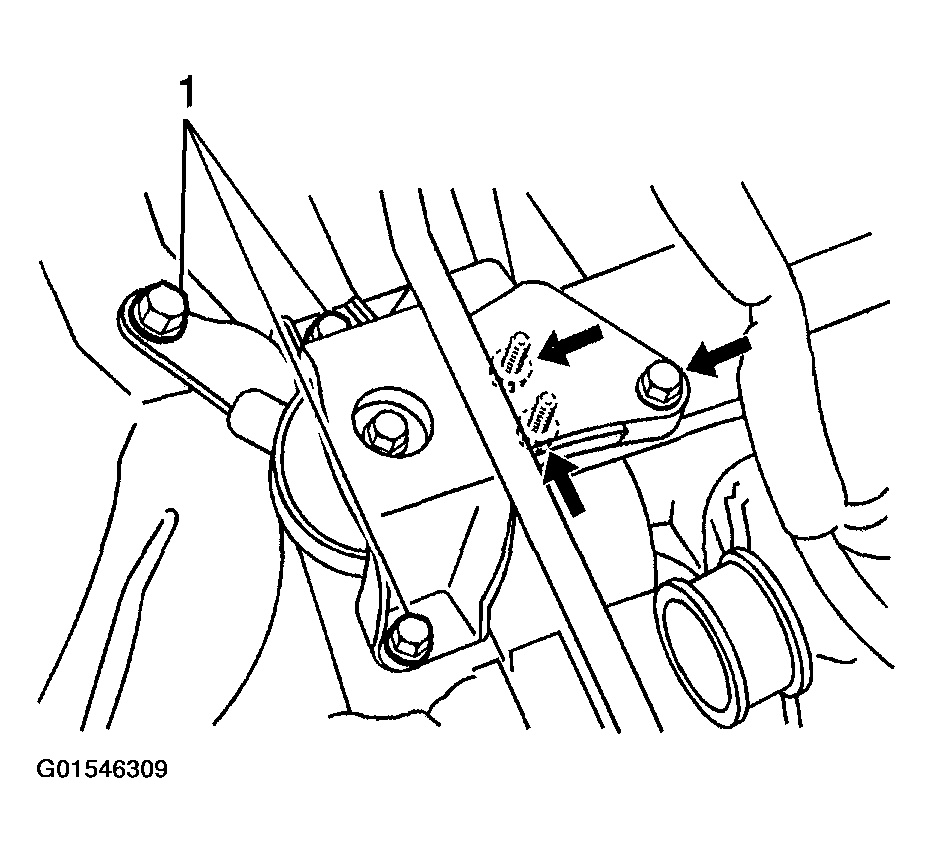

    Fig 1: Removing Engine Mount
    G01546309Courtesy of GENERAL MOTORS CORP.
  4. Remove the 3 right side engine mount-to-frame bolts.
  5. Raise the engine slightly in order to provide clearance for the engine mount assembly removal.
  6. Remove the right side engine mount from the vehicle.
  7. Remove the right side engine mount-to-frame bracket from the engine mount.
  8. Remove the right side engine mount-to-engine bracket from the engine mount.
