Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right side engine mount-to-engine bracket to the engine mount.

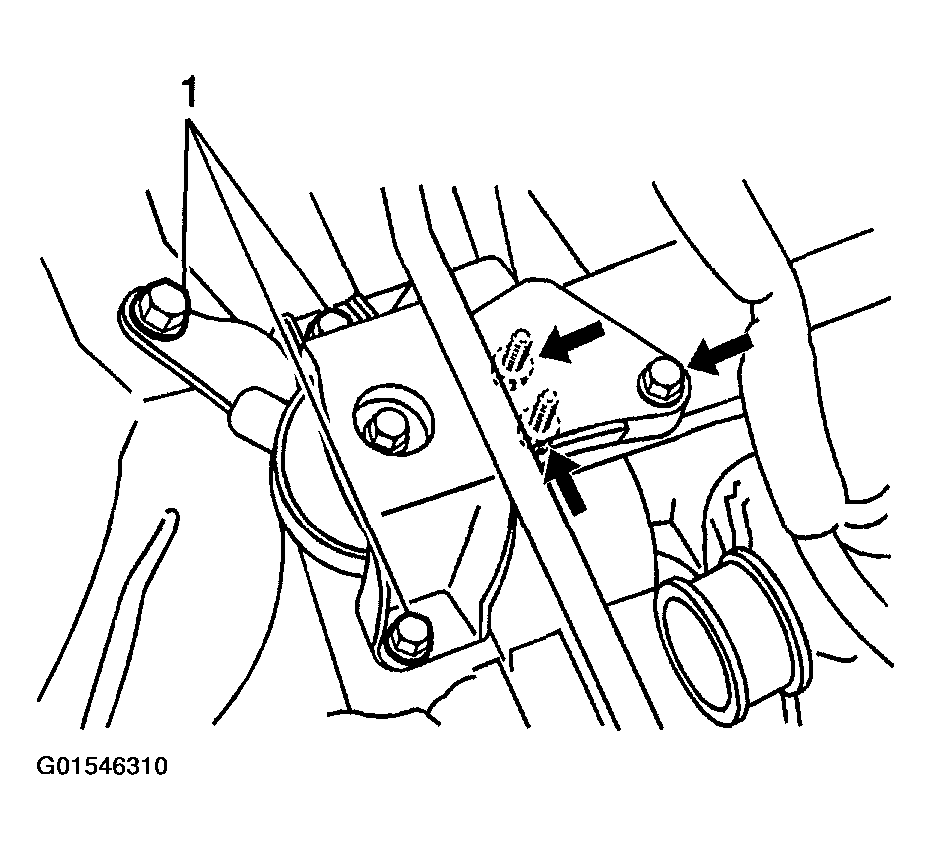

    Fig 1: Installing Engine Mount
    G01546310Courtesy of GENERAL MOTORS CORP.
  2. Install the right side engine mount-to-frame bracket to the engine mount.
  3. Install the right side engine mount to the engine.
  4. Install the three right side engine mount-to-frame bolts. Do not fully tighten the bolts.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the 3 right side engine mount-to-engine bracket bolt and nuts.

    Tighten

    • Tighten the right side engine mount-to-frame bolts (1) to 52 N.m (38 Ib. ft).
    • Tighten the right side engine mount-to-engine bracket bolt and nuts (3) to 54 N.m (40 lb. ft).
  6. Remove the engine support fixture.
  7. Connect the negative battery cable.

    Tighten

    Tighten the battery cable bolt to 15 N.m (11 Ib. ft).
