Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the heater wire harness from the headlamp tab (1).
  2. Unclip the heater wire harness below the on the outside of the battery (2).

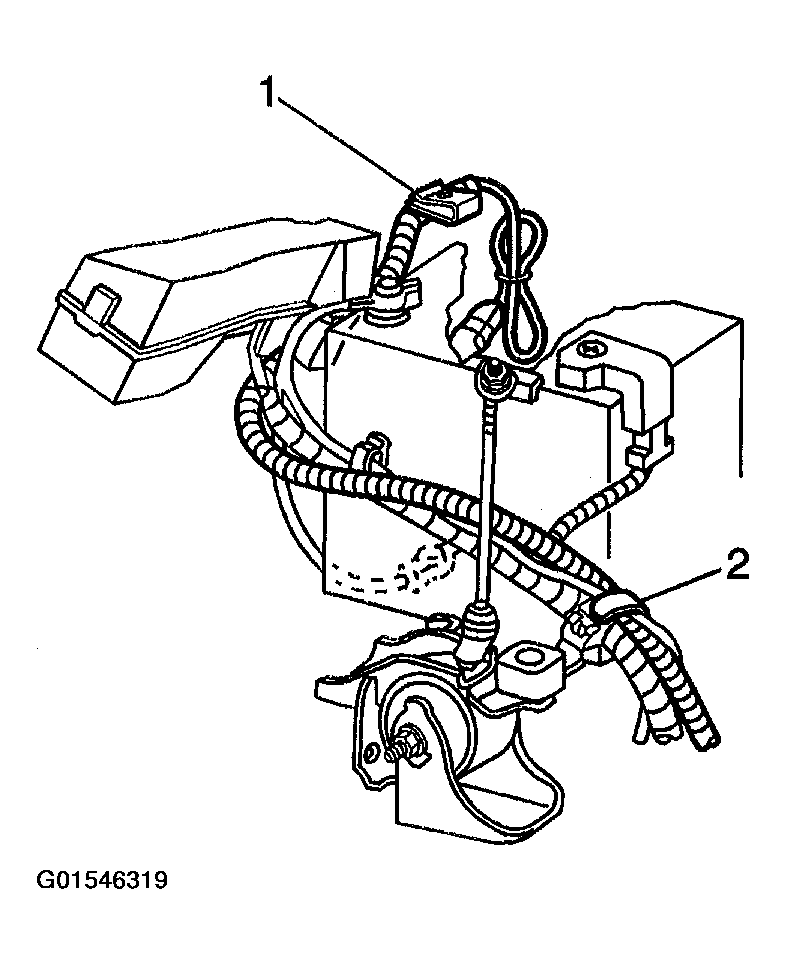

    Fig 1: Unclipping Heater Were Harness
    G01546319Courtesy of GENERAL MOTORS CORP.
  3. Unclip the heater wire harness from the main wire harness.

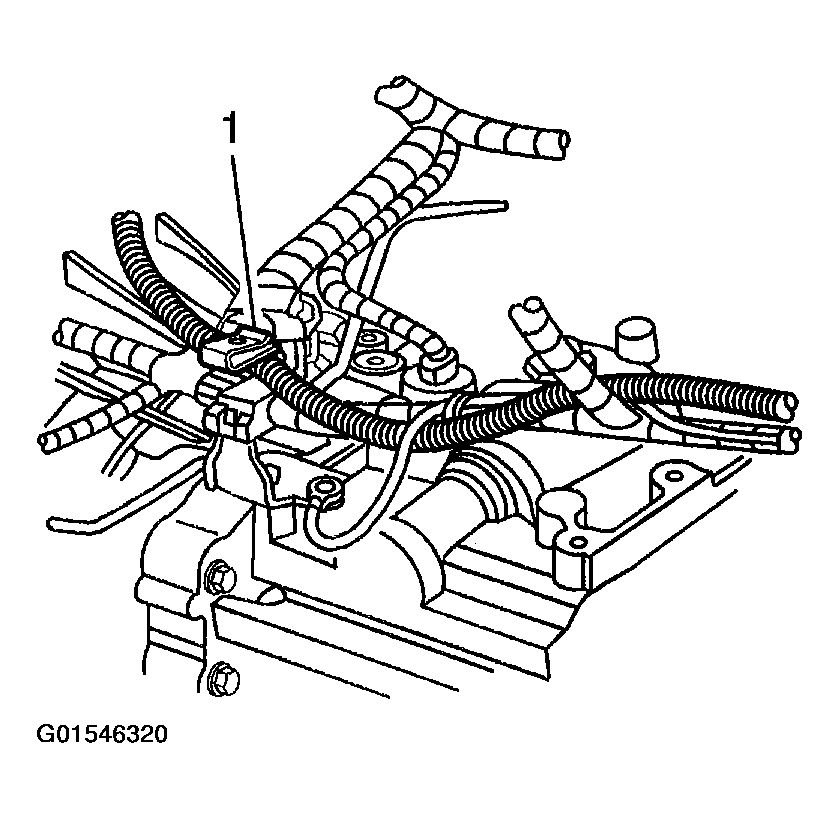

    Fig 2: Unclipping Heater Wire Harness From Main Wire Harness
    G01546320Courtesy of GENERAL MOTORS CORP.
  4. Unclip the heater cartridge from the engine block.
    Fig 3: Unclipping Heater Cartridge From Engine Block
    G01546321Courtesy of GENERAL MOTORS CORP.
