Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the accessory drive belt. Refer to Drive Belt Replacement .
  3. Remove the lower drive belt tensioner bolt (6).
  4. Remove the upper drive belt tensioner nut and slide the assembly off the stud.

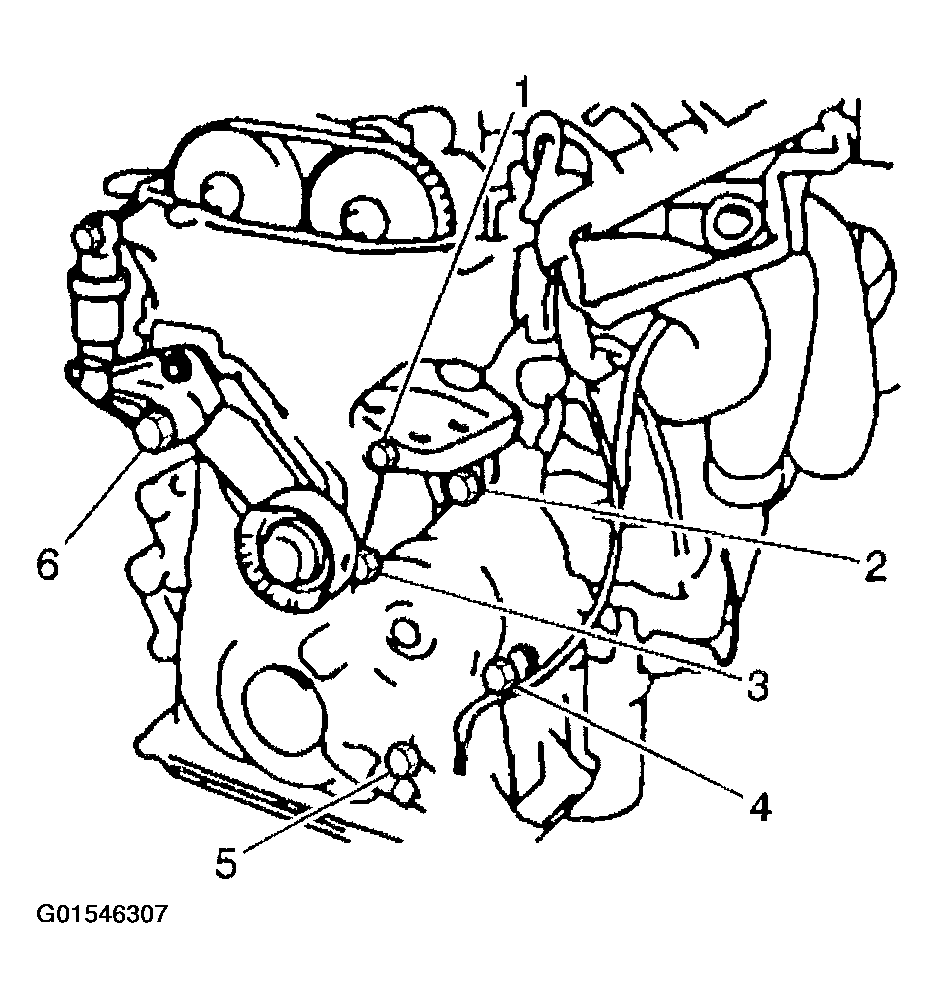

Fig 1: Removing Drive Belt Tensioner
G01546307Courtesy of GENERAL MOTORS CORP.
