Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the drive belt tensioner.

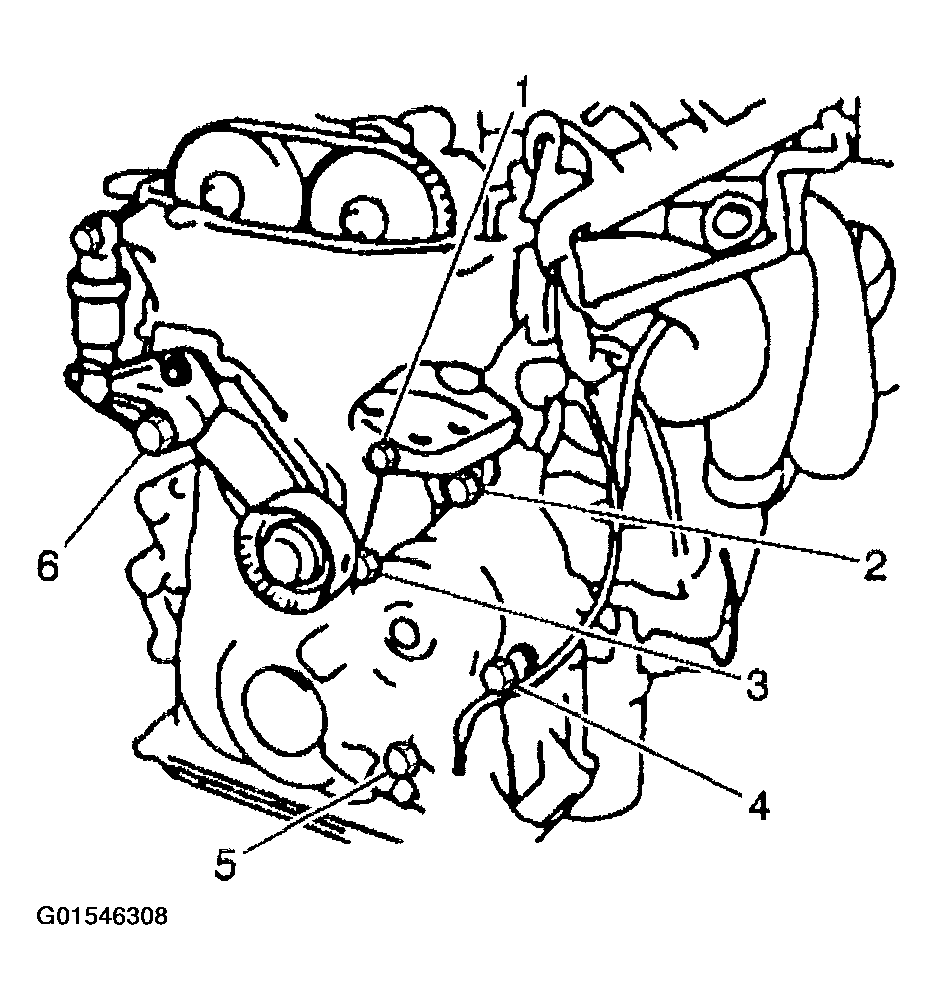

    Fig 1: Installing Drive Belt Tensioner
    G01546308Courtesy of GENERAL MOTORS CORP.

    Tighten

    • Tighten the lower tensioner bolt (6) to 69 N.m (51 Ib. ft).
    • Tighten the upper tensioner nut to 29 N.m (21 Ib. ft).
  2. Install the accessory drive belt. Refer to Drive Belt Replacement .
  3. Connect the negative battery cable.

    Tighten

    Tighten the bolt to 15 N.m (11 Ib. ft).
