Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Use a wrench and rotate the belt tensioner clockwise.
  3. With pressure applied to the wrench, and tension relieved from the drive belt, remove the accessory drive belt.

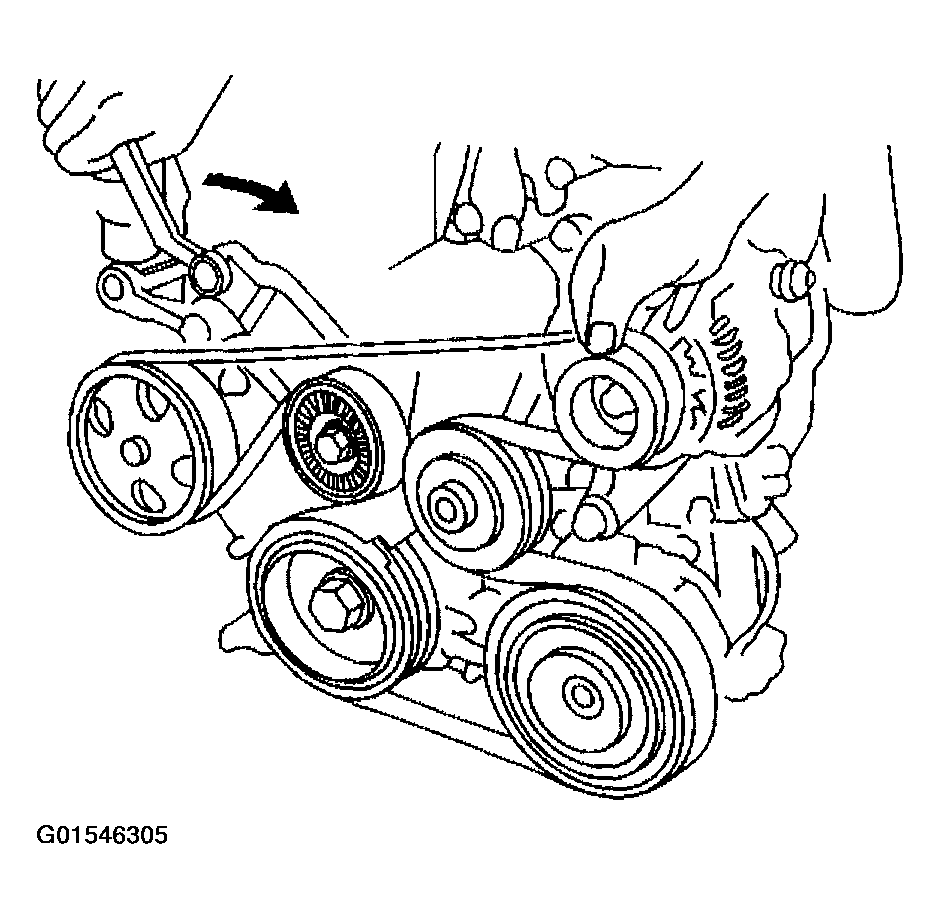

Fig 1: Drive Belt Routing
G01546305Courtesy of GENERAL MOTORS CORP.
