Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Use a new cylinder head cover gasket and new seal washers whenever the cylinder head cover replacement procedure is performed.

Ensure that the new gasket and the new seal washers are correctly positioned during the cylinder head cover installation.

  1. Install the new cylinder head cover gasket to the cylinder head cover.
  2. Install a new O-ring to the cylinder head cover.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the cylinder head cover and the wire harness protector to the cylinder head. Secure the cover using 9 bolts.

    Tighten

    Tighten the cylinder head cover bolts to 10 N.m (7 Ib. ft).

  4. Install a new ventilation pipe gasket. Secure the ventilation pipe to cylinder head with the 2 nuts and 1 bolt.

    Tighten

    Tighten the ventilation pipe nuts to 10 N.m (7 Ib. ft).

    Tighten

    Tighten the ventilation pipe bolt to 25 N.m (18 Ib. ft).

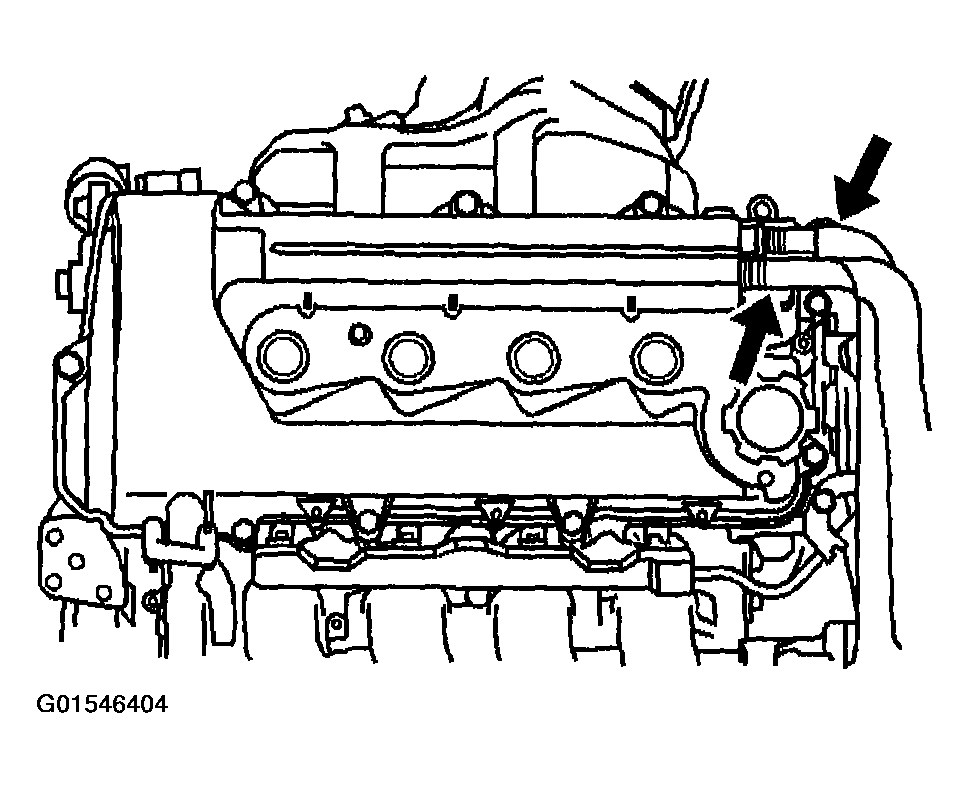

    Fig 1: Installing Cylinder Head Cover
    G01546404Courtesy of GENERAL MOTORS CORP.
  5. Connect the two Positive Crankcase Ventilation (PCV) hoses to the cylinder head cover.
  6. Install the ignition coils. Refer to IGNITION COIL .
  7. Install the engine cover.
