Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new crankshaft front oil seal with Chassis Grease GM P/N 1051344 (Canadian P/N 993037) or equivalent.
  2. Using a hammer and an appropriate driver, lightly tap the crankshaft front oil seal into place.

    Important:  Tap the oil seal in until its surface is flush with the crankshaft front oil seal retainer edge.

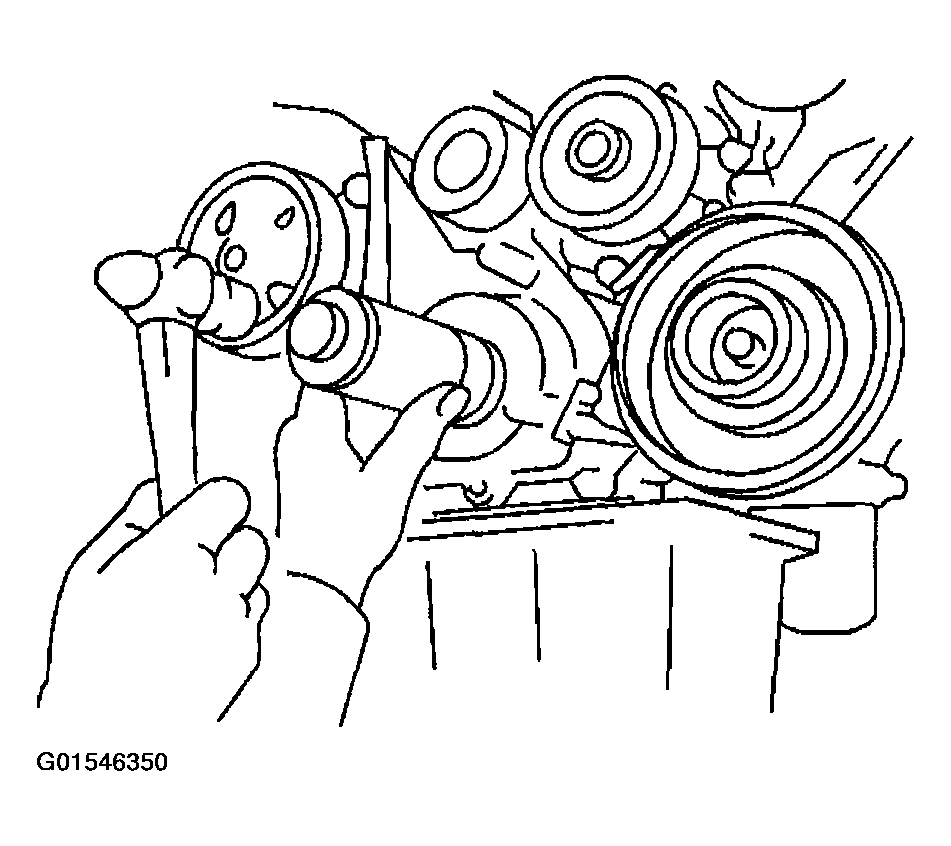

    Fig 1: Installing Crankshaft Front Oil Seal
    G01546350Courtesy of GENERAL MOTORS CORP.
  3. Install the crankshaft pulley. Refer to Crankshaft Pulley Replacement .
  4. Connect the negative battery cable.
  5. Start the engine.
