Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain. Refer to Timing Chain and Sprockets Replacement .
  2. Remove the camshaft position actuator from the camshaft.

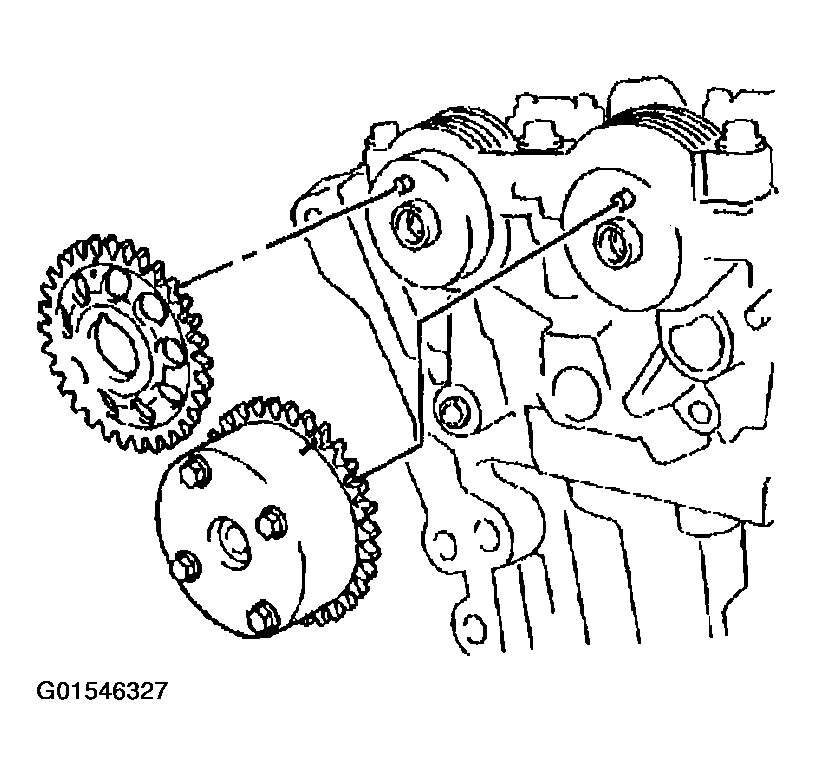

    Fig 1: Removing Camshaft Position Actuator
    G01546327Courtesy of GENERAL MOTORS CORP.
  3. Remove the intake camshaft bearing cap bolts in sequence. Starting at the ends and working toward the center of the camshaft.

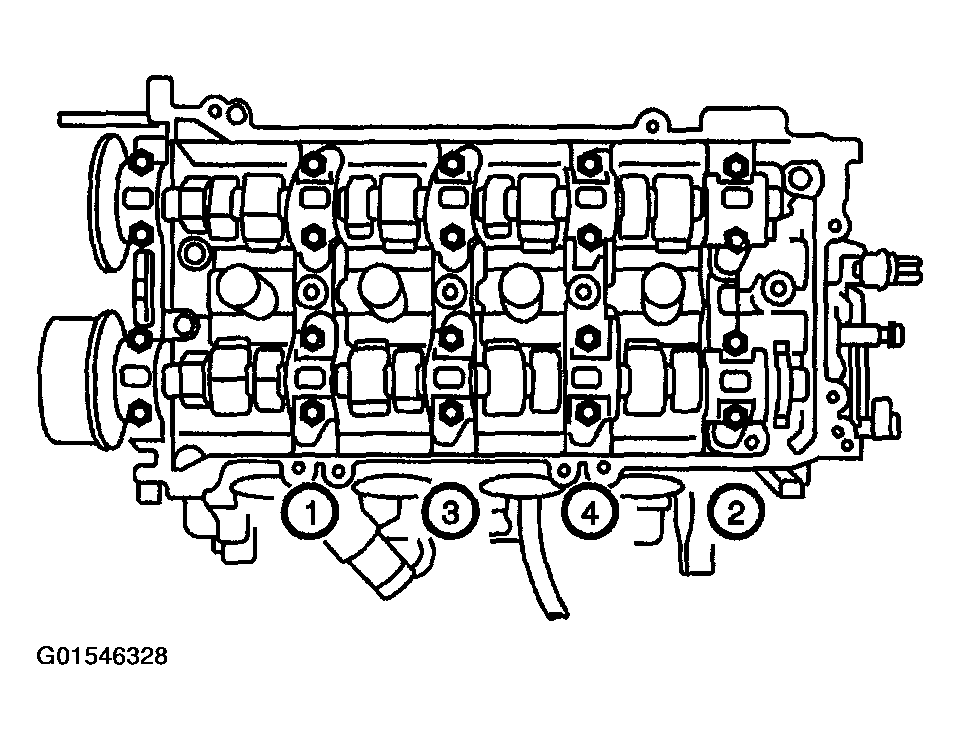

    Fig 2: Identifying Intake Camshaft Bearing Cap Bolts Tightening Sequence
    G01546328Courtesy of GENERAL MOTORS CORP.
  4. Remove the front camshaft bearing cap (5).
  5. Remove the intake camshaft from the cylinder head.
