Water Pump Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The drive belt tensioner must be unloaded and the drive belt removed before the water pump is removed.

  1. Remove the water pump assembly to the timing chain housing bolts (2).
  2. Remove the water pump.
  3. Remove the water pump O-ring.

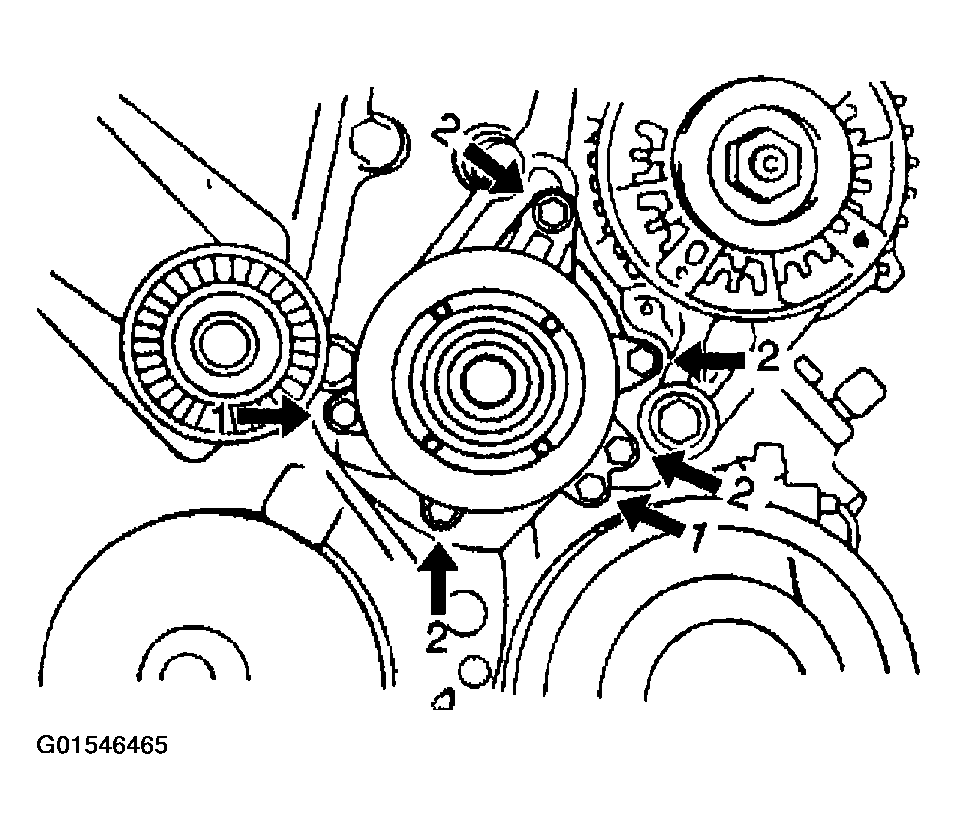

Fig 1: Removing Water Pump
G01546465Courtesy of GENERAL MOTORS CORP.
