Timing Chain Housing Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 12 timing chain housing bolts.
  2. Gently pry the timing chain cover away from the cylinder block and remove the timing chain cover and gasket.

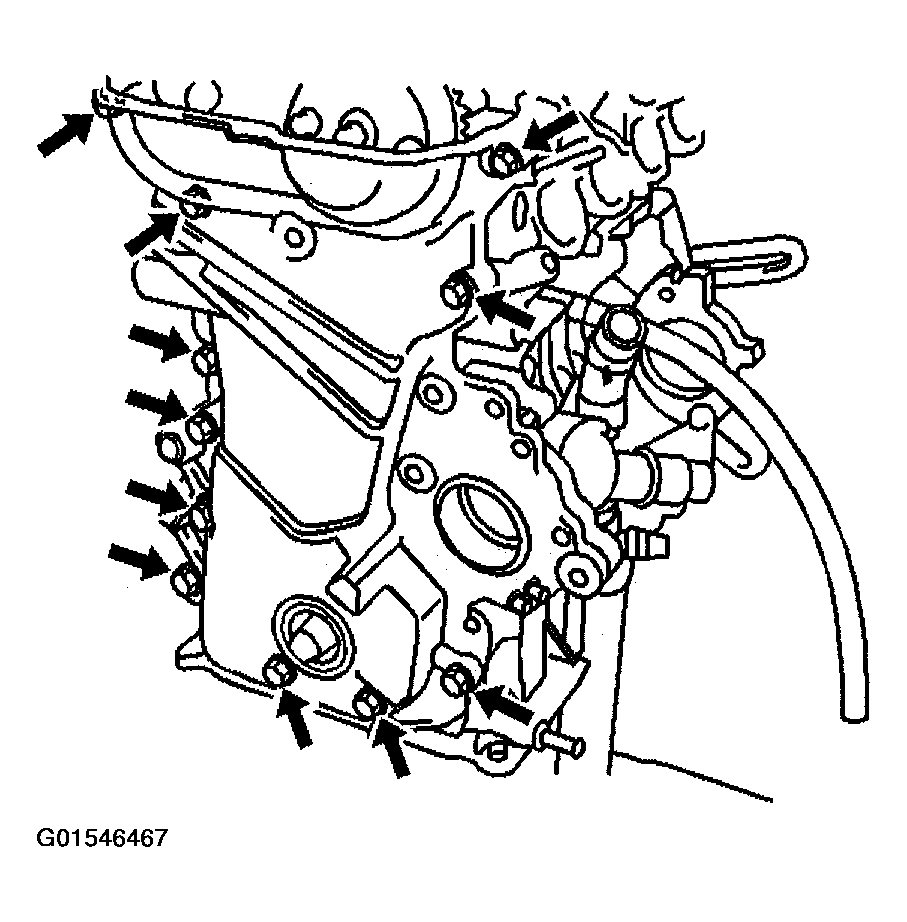

Fig 1: Removing Timing Chain Housing
G01546467Courtesy of GENERAL MOTORS CORP.
