Piston, Connecting Rod, and Bearing Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a ridge reamer, remove all the carbon from the top of the cylinder.

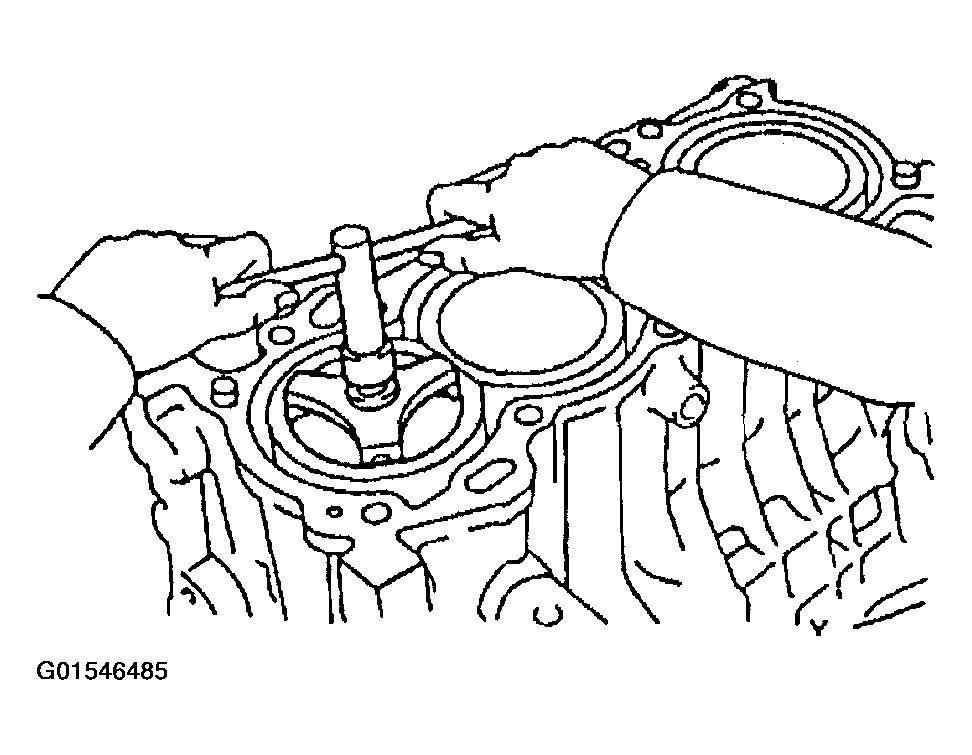

    Fig 1: Removing Carbon From Top Of Cylinder
    G01546485Courtesy of GENERAL MOTORS CORP.
  2. Rotate the crankshaft to a position where the connecting rod bolts are the most accessible.
  3. Mark the connecting rod and cap with the cylinder position. Also mark their orientation. This will ensure the caps and connecting rods are re-assembled properly.
  4. Remove the connecting rod bolts.
  5. Carefully remove the piston and connecting rod assembly.

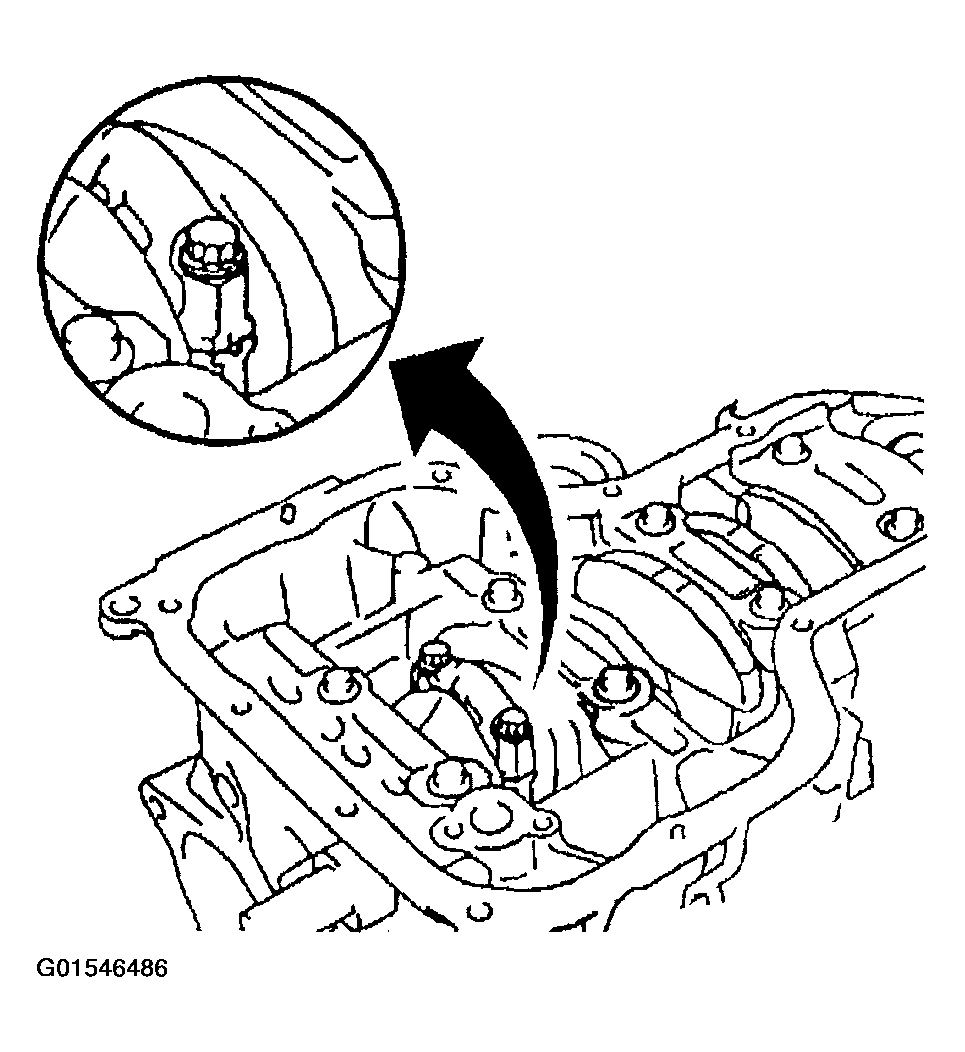

    Fig 2: Removing Connecting Rod Bolts
    G01546486Courtesy of GENERAL MOTORS CORP.
  6. Partially reinsert the connecting rod cap bolts into the connecting rod cap and remove the connecting rod cap with the bearing.

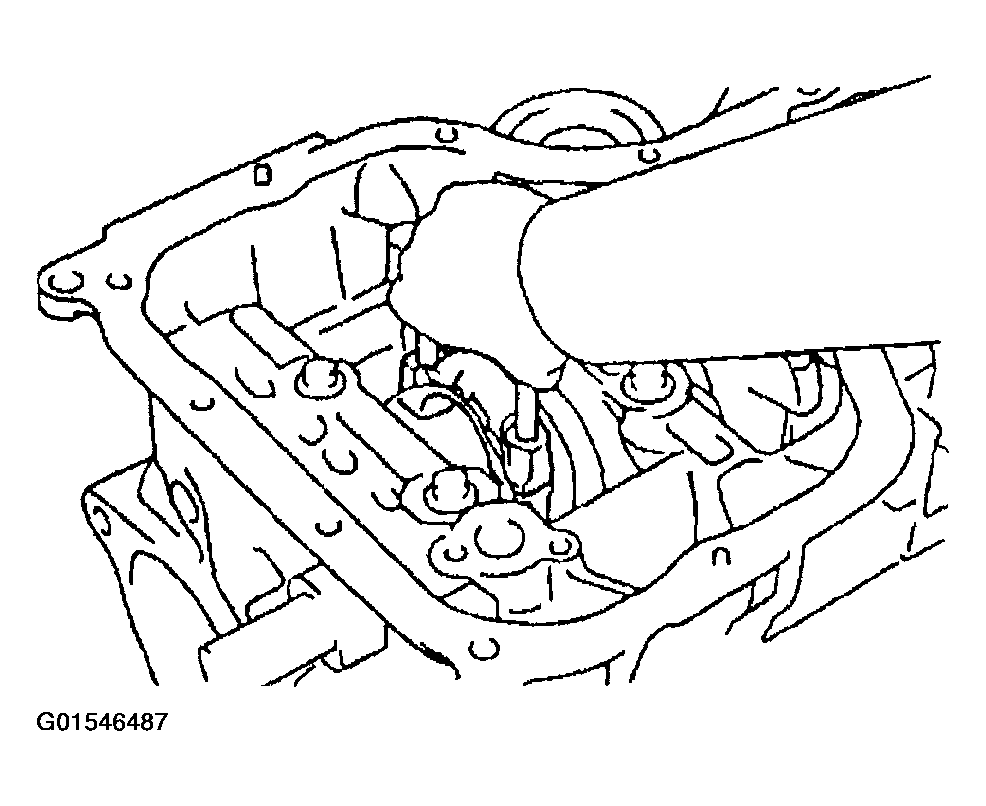

    Fig 3: Removing Connecting Rod Cap With Bearing
    G01546487Courtesy of GENERAL MOTORS CORP.
