Oil Pump Assemble

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the gears with clean engine oil.
    • The oil pump inner gear
    • The oil pump outer gear
    • The inside surface of the oil pump body
  2. Install the oil pump outer and inner gears to the oil pump body.
    NOTE: Fill oil pump cavities with petroleum jelly prior to installation. This will ensure that there is oil pressure immediately on start-up and will prevent engine damage.

    Important:  Place the drive gear and the driven gear into the oil pump body with the marks on the gears facing the oil pump cover side.

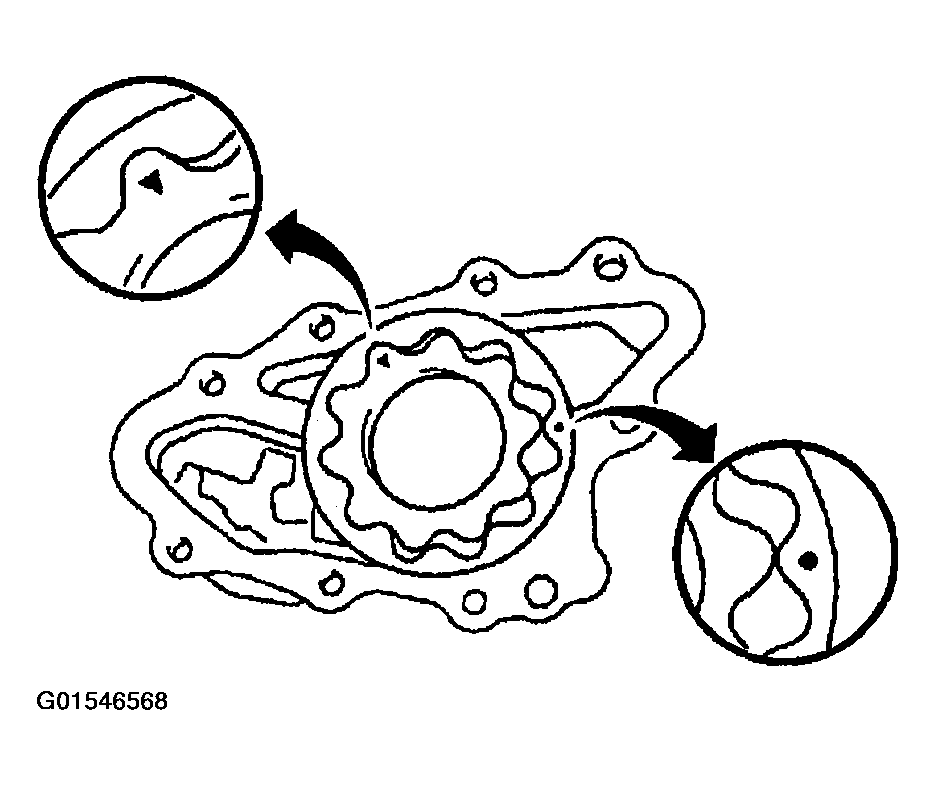

    Fig 1: Installing Oil Pump Outer & Inner Gears
    G01546568Courtesy of GENERAL MOTORS CORP.
  3. Fill the oil pump with petroleum jelly to prime the oil pump.
  4. Assemble the pressure relief valve.
    Fig 2: Assembling Pressure Relief Valve
    G01546569Courtesy of GENERAL MOTORS CORP.
  5. Install the oil pump cover to the oil pump body. Secure the cover with five screws.
