Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the guide tube.
  2. Unclip the crankshaft position sensor electrical connector from the guide tube.
  3. Remove the guide tube bolt (3) from the cylinder block.
  4. Remove the guide tube from the cylinder block.

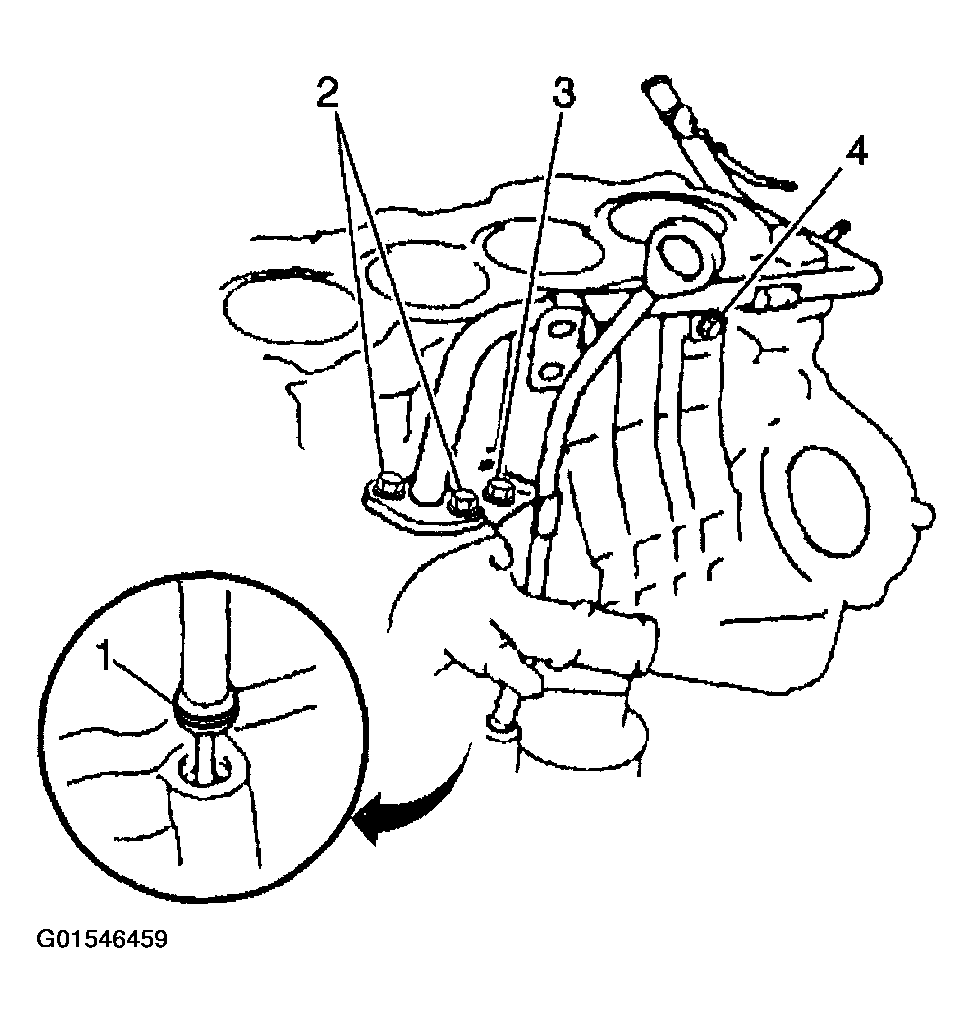

Fig 1: Removing Oil Level Indicator & Tube
G01546459Courtesy of GENERAL MOTORS CORP.
