Exhaust Manifold Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold brace to the manifold bolt.

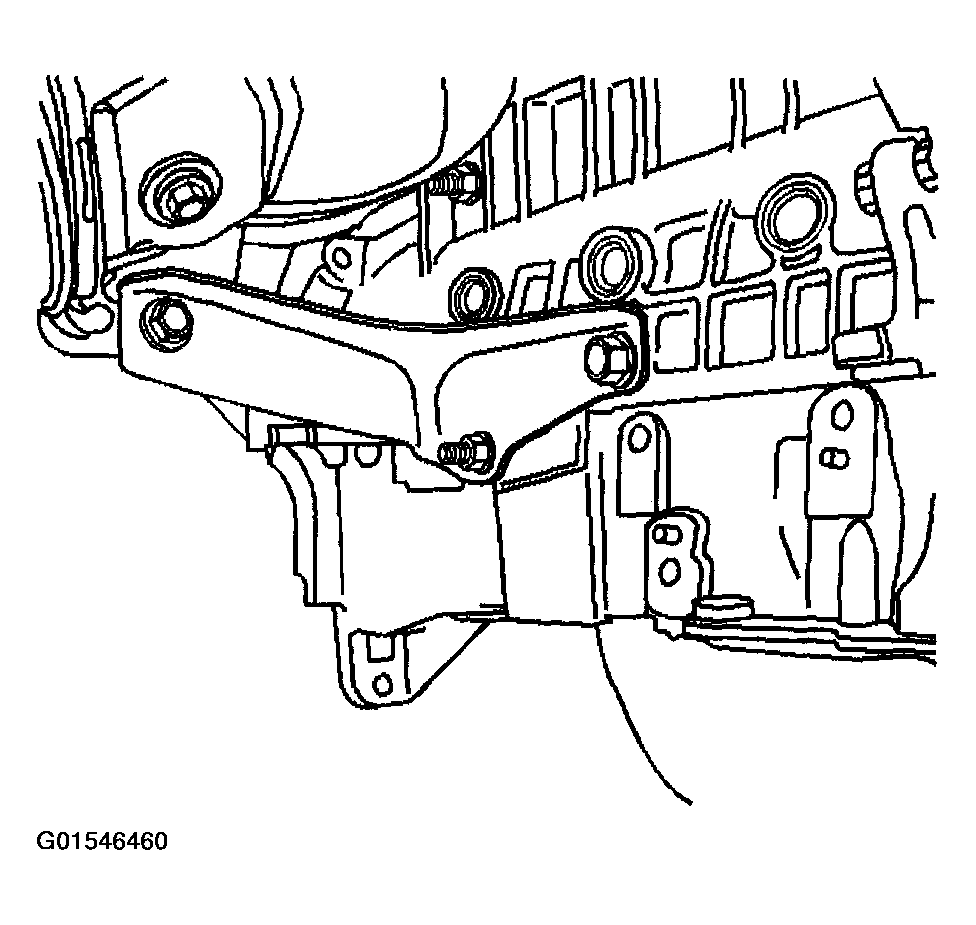

    Fig 1: Removing Exhaust Manifold Brace
    G01546460Courtesy of GENERAL MOTORS CORP.
  2. Remove the 5 upper heat insulator bolts.
  3. Remove the heat insulator.
  4. Remove the 3 exhaust manifold bolts (1-3) and 2 exhaust manifold nuts (4-5).
  5. Remove the exhaust manifold and gasket.

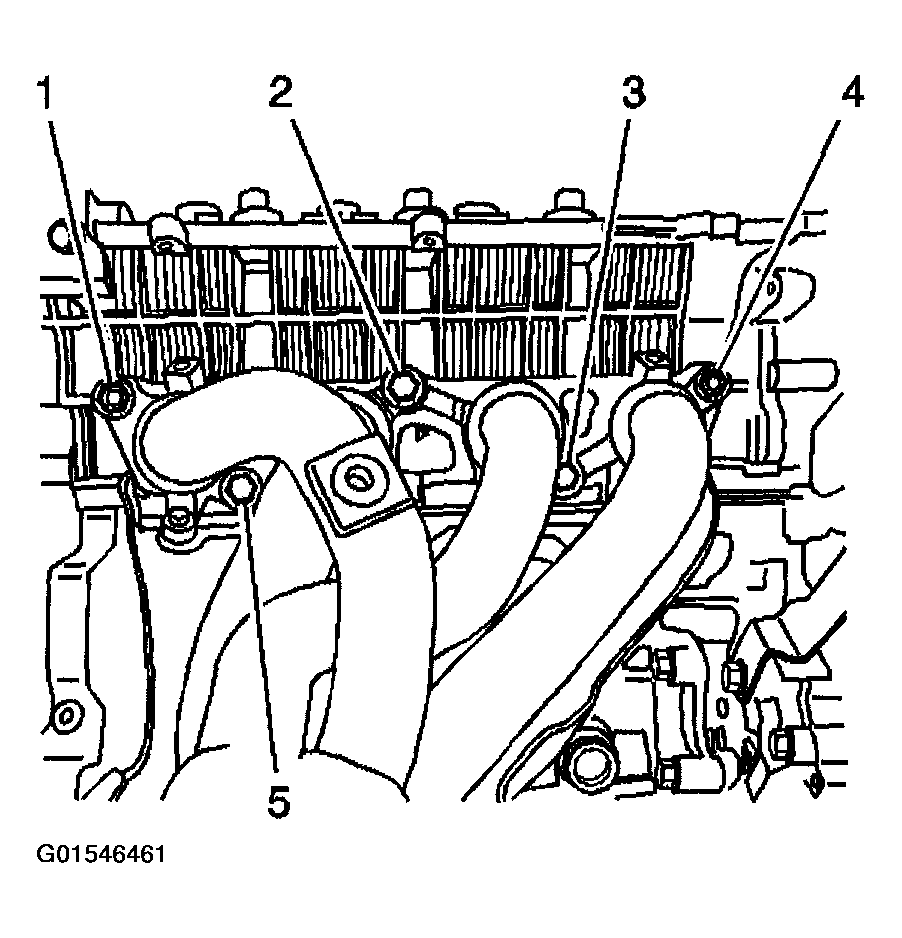

    Fig 2: Removing Exhaust Manifold
    G01546461Courtesy of GENERAL MOTORS CORP.
