Cylinder Head Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following items in sequence:
    • The cylinder head bolts
    • The cylinder head washers

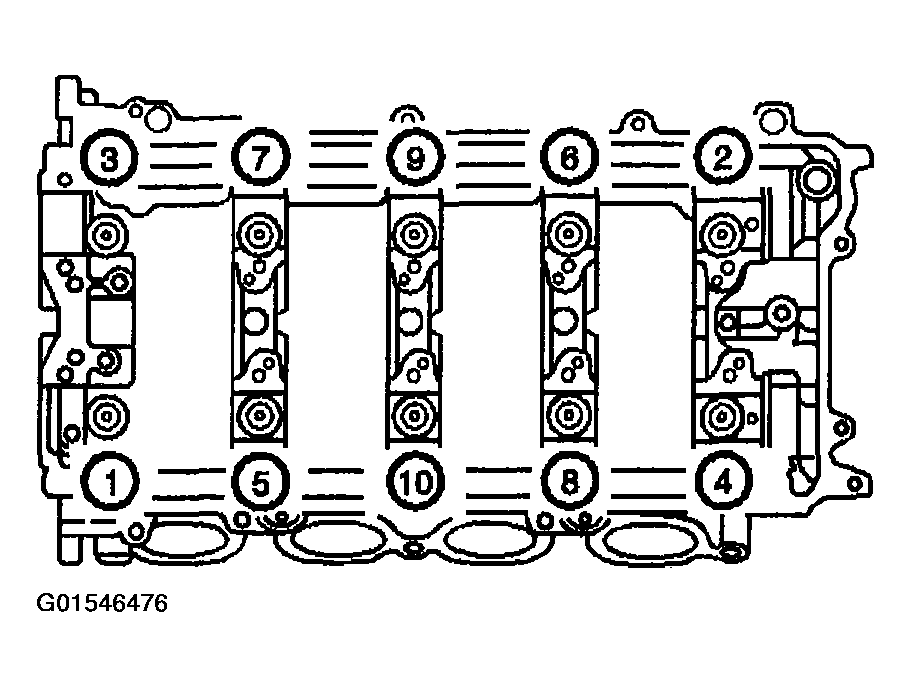

    Fig 1: Identifying Cylinder Head Bolt Removal Sequence
    G01546476Courtesy of GENERAL MOTORS CORP.
  2. Remove the cylinder head.

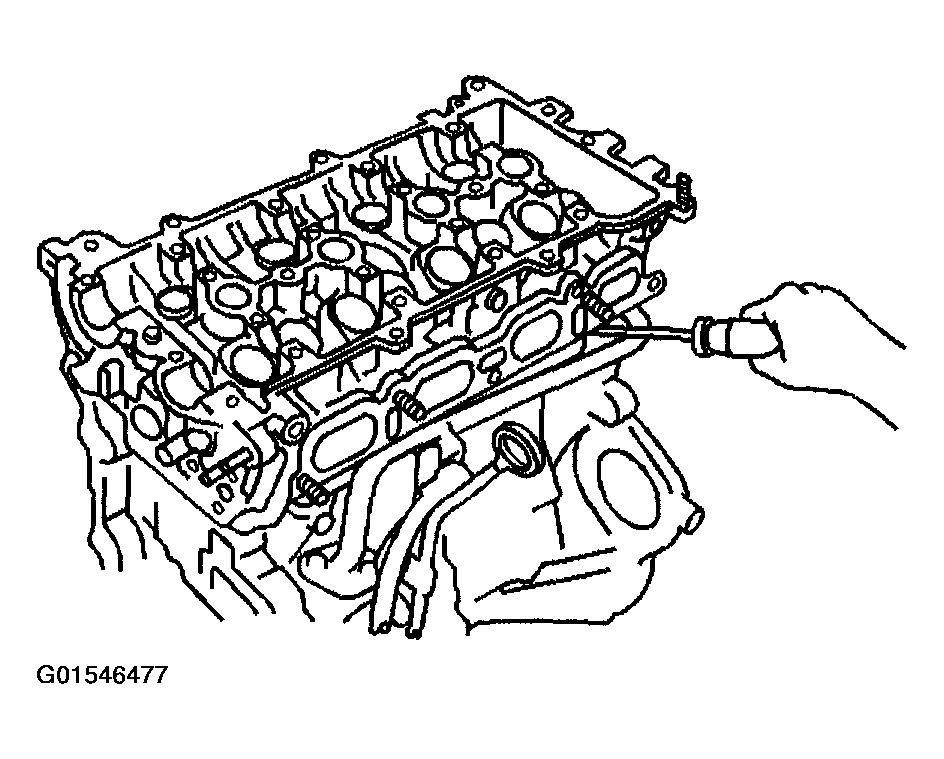

    Fig 2: Removing Cylinder Head
    G01546477Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head gasket (1).

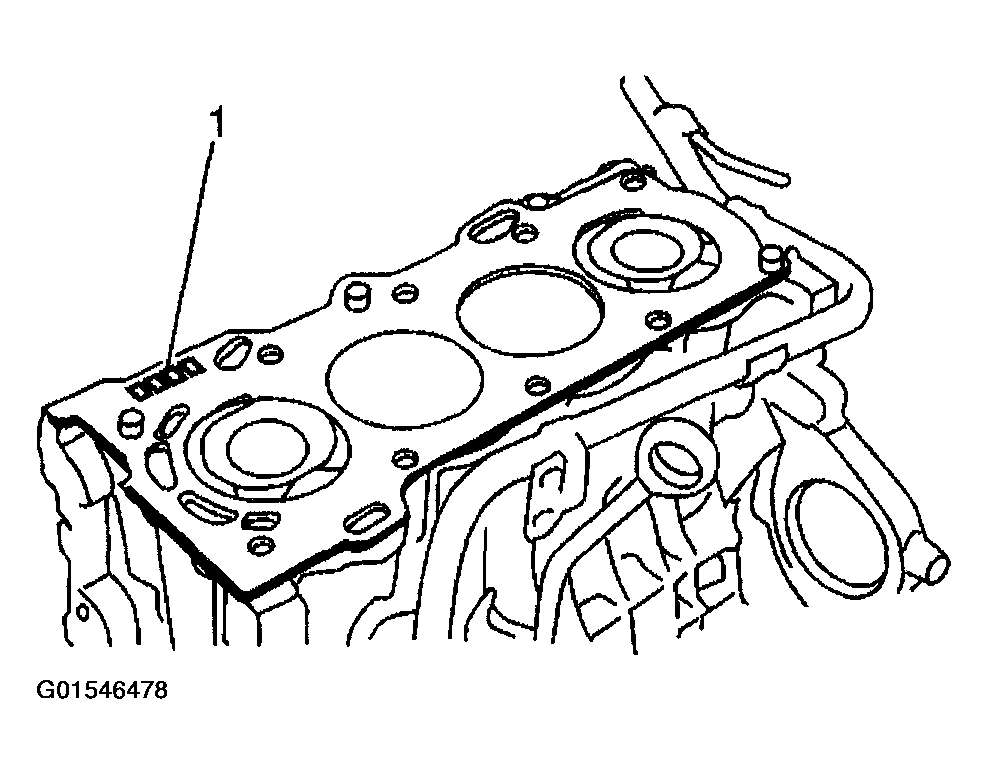

    Fig 3: Removing Cylinder Head Gasket
    G01546478Courtesy of GENERAL MOTORS CORP.
  4. Clean the cylinder block mating surfaces.

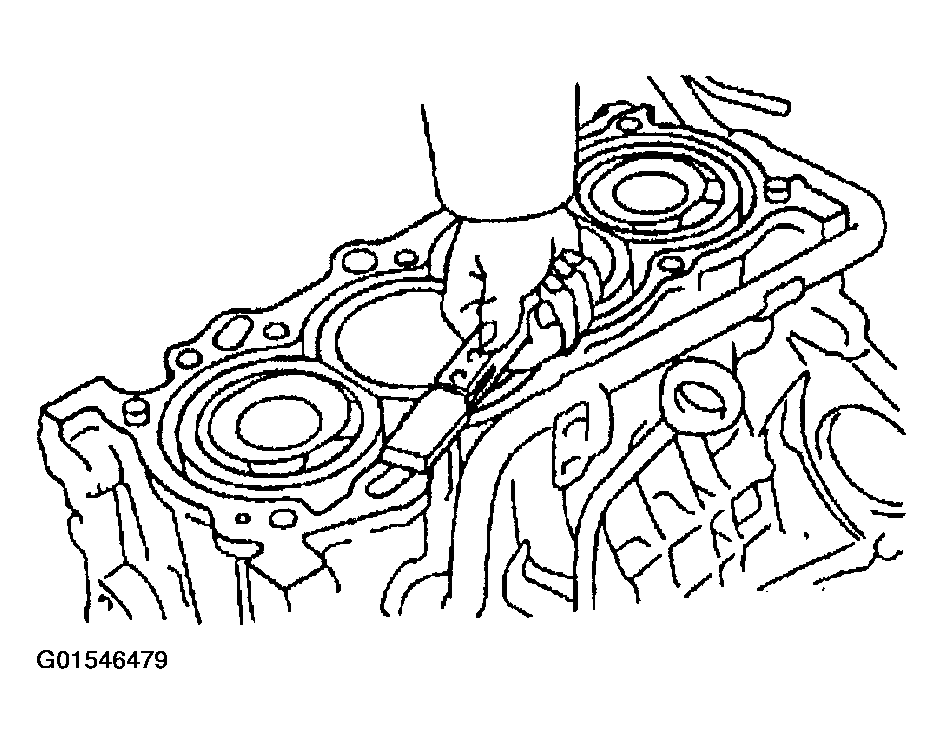

    Fig 4: Cleaning Cylinder Block Mating Surfaces
    G01546479Courtesy of GENERAL MOTORS CORP.
  5. Clean the cylinder head mating surface.

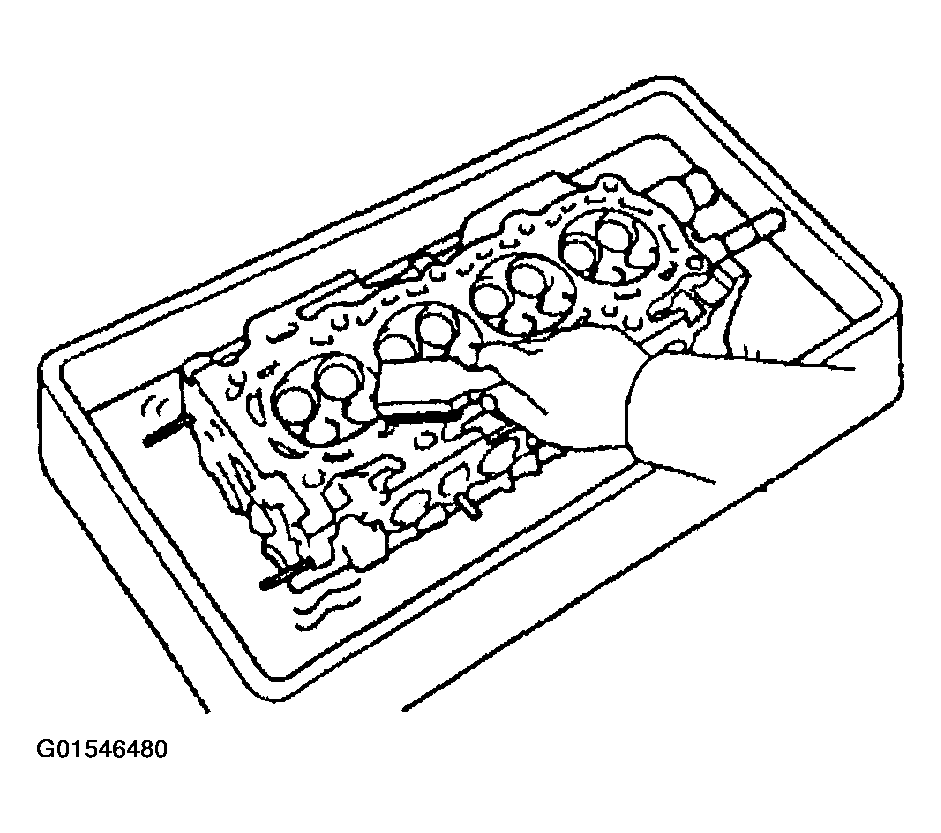

    Fig 5: Cleaning Cylinder Head Mating Surface
    G01546480Courtesy of GENERAL MOTORS CORP.
