Cylinder Head Cover Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 9 cylinder head cover bolts and wire harness protector.
  2. Remove the cylinder head cover and gasket.

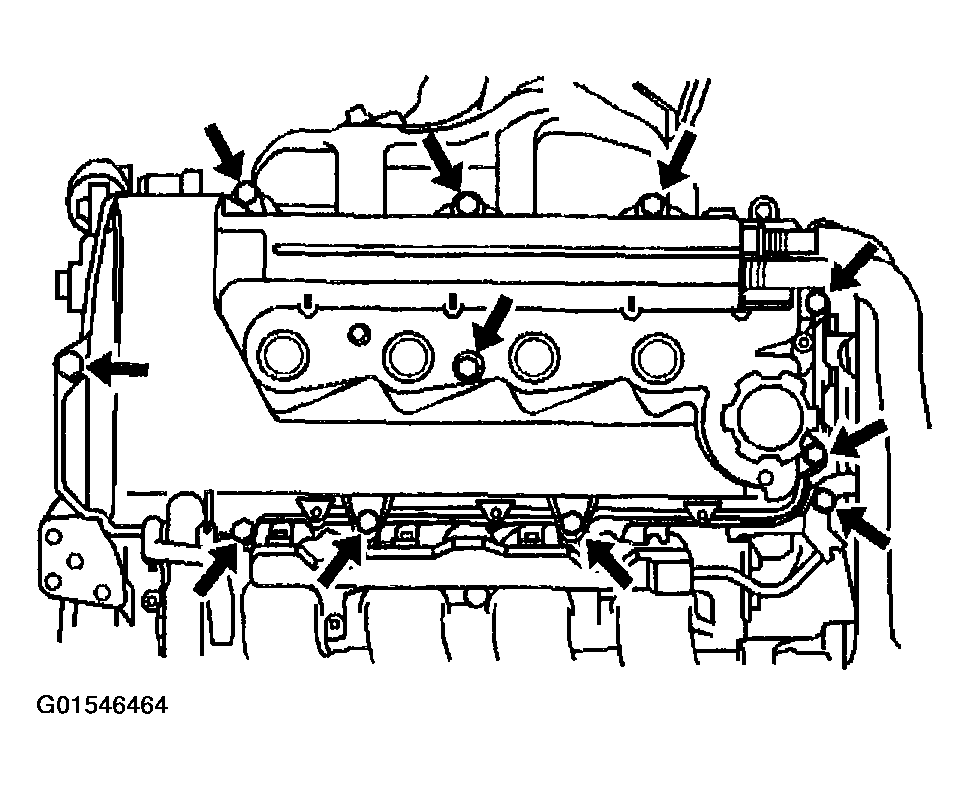

Fig 1: Removing Cylinder Head Cover
G01546464Courtesy of GENERAL MOTORS CORP.
