Crankshaft Rear Oil Seal Removal
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Important:
To protect the crankshaft from damage, wrap the tip of the screwdriver with tape.

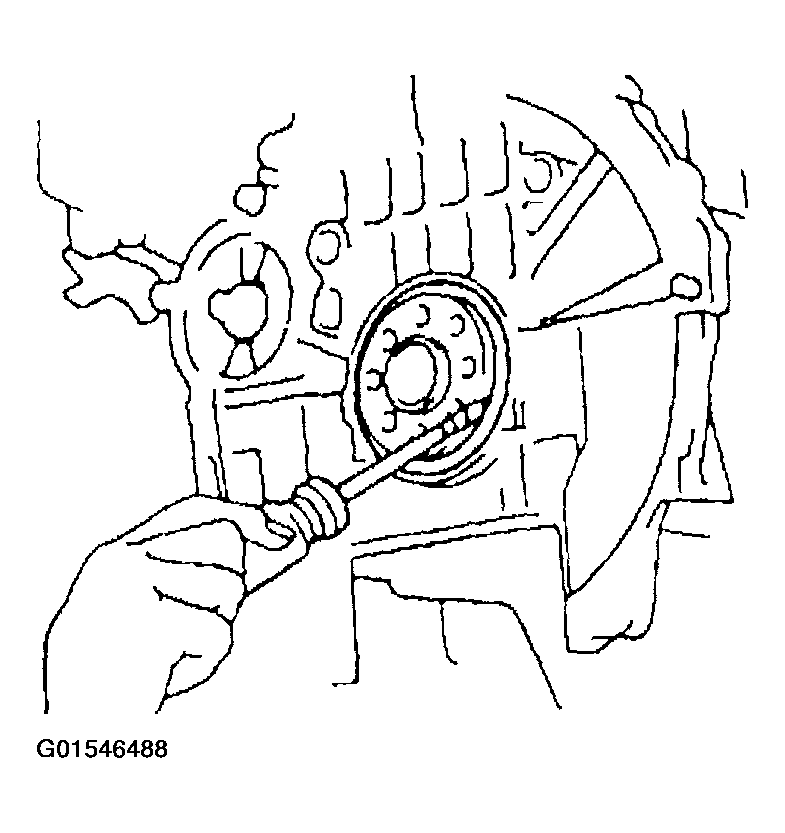

- Insert the screwdriver between the crankshaft and the rear oil seal.
- Use the screwdriver and pry out the crankshaft rear oil seal.
Courtesy of GENERAL MOTORS CORP.
