Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply multi-purpose grease GM P/N 1051344 (Canadian P/N 993037) or equivalent to the new crankshaft rear oil seal lip.

    Important:  Tap the oil seal in until its surface is flush with the crankshaft rear oil seal retainer edge.

  2. Using a hammer, lightly tap the crankshaft rear oil seal into place.

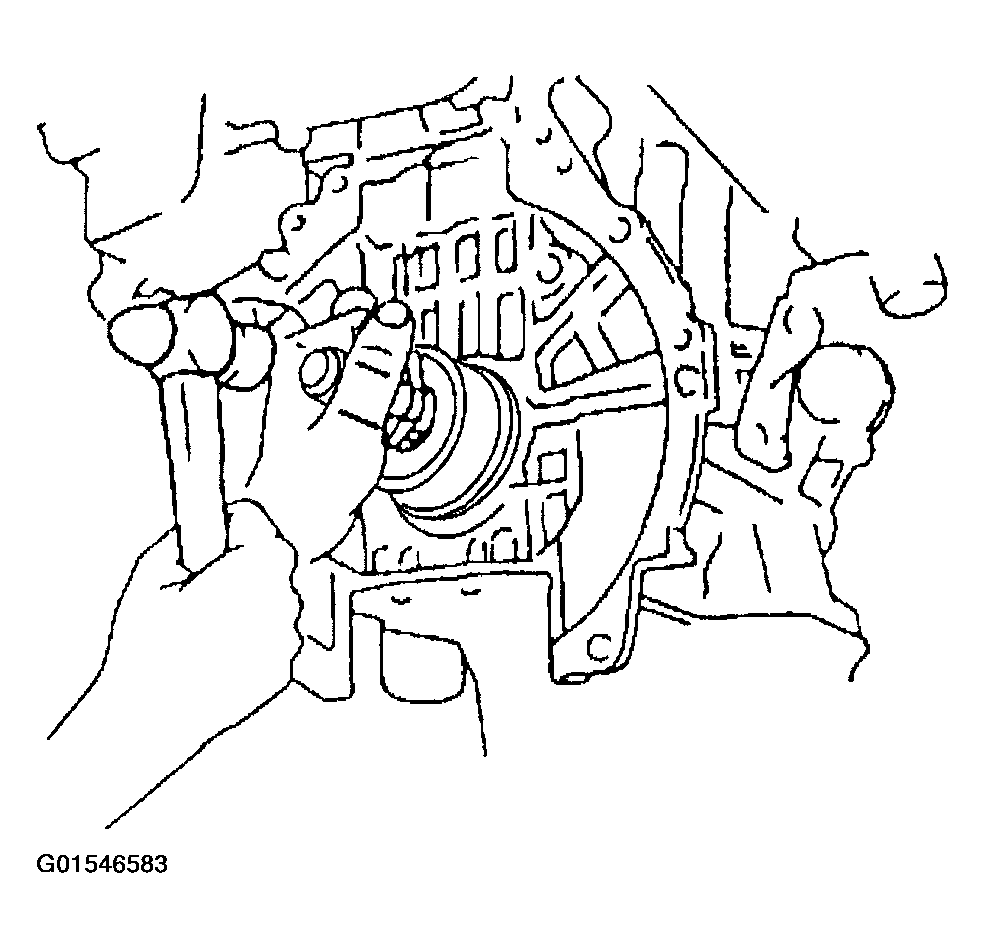

Fig 1: Installing Crankshaft Rear Oil Seal
G01546583Courtesy of GENERAL MOTORS CORP.
