Crankshaft Pulley Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
J 8614-01 Pinion Flange Holder
- Lubricate the front seal and the sealing surface of the crankshaft pulley with Chassis Grease GM P/N 1051344 (Canadian P/N 993037) or equivalent.
- Install the crankshaft pulley onto the crankshaft indexing keyway. Tap into place using a rubber or sand-filled mallet.NOTE: Refer to FASTENER NOTICE .

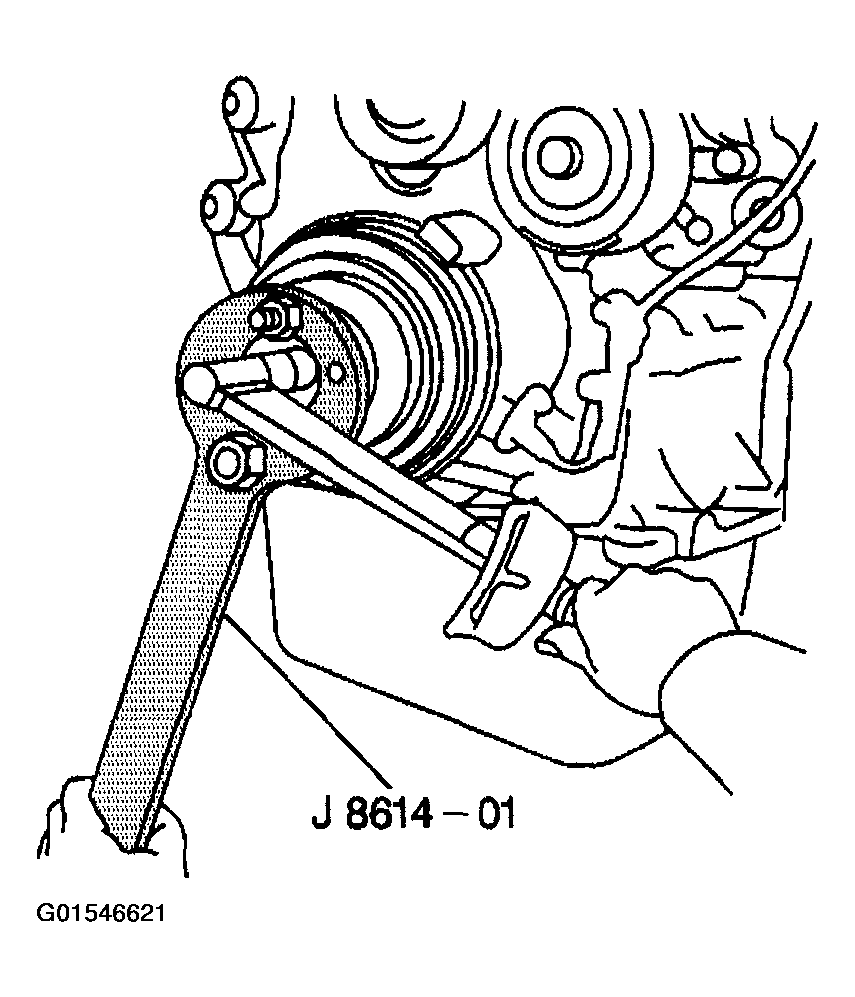

- Install the crankshaft pulley retaining bolt using J 8614-01
to prevent crankshaft rotation when tightening the bolt.
Tighten
Tighten the bolt to 118 N.m (87 lb ft).
