Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new crankshaft front oil seal with Chassis Grease GM P/N 1051344 (Canadian P/N 993037) or equivalent.

    Important:  Tap the oil seal in until its surface is flush with the crankshaft rear oil seal retainer edge.

  2. Using a hammer, lightly tap the crankshaft front oil seal into place.

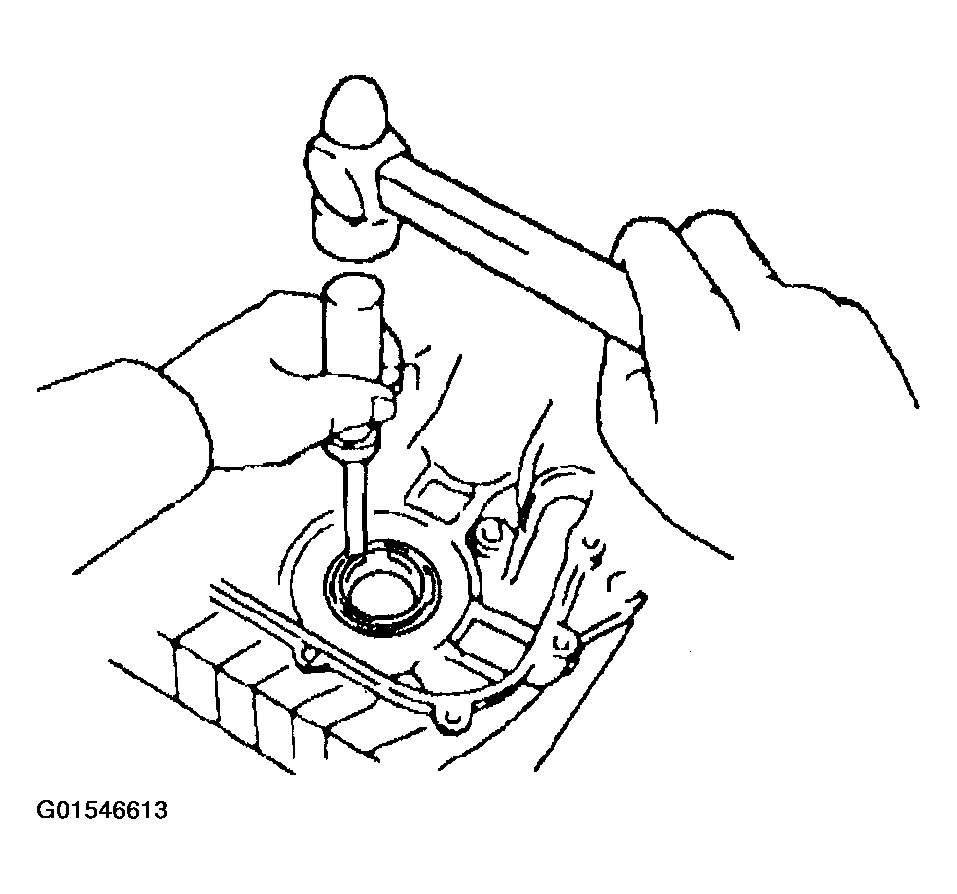

    Fig 1: Installing Crankshaft Front Oil Seal
    G01546613Courtesy of GENERAL MOTORS CORP.
