Camshaft Removal - Intake

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake camshaft sprocket bolt.

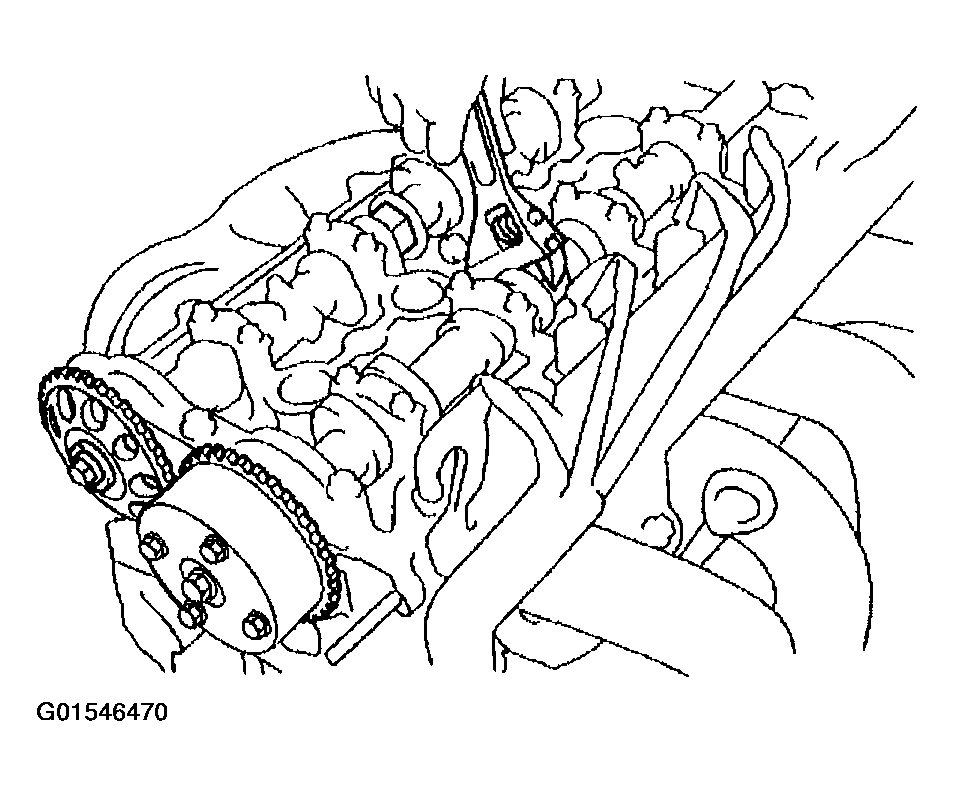

    Fig 1: Removing Intake Camshaft Sprocket Bolt
    G01546470Courtesy of GENERAL MOTORS CORP.
  2. Remove the cam shaft sprocket.

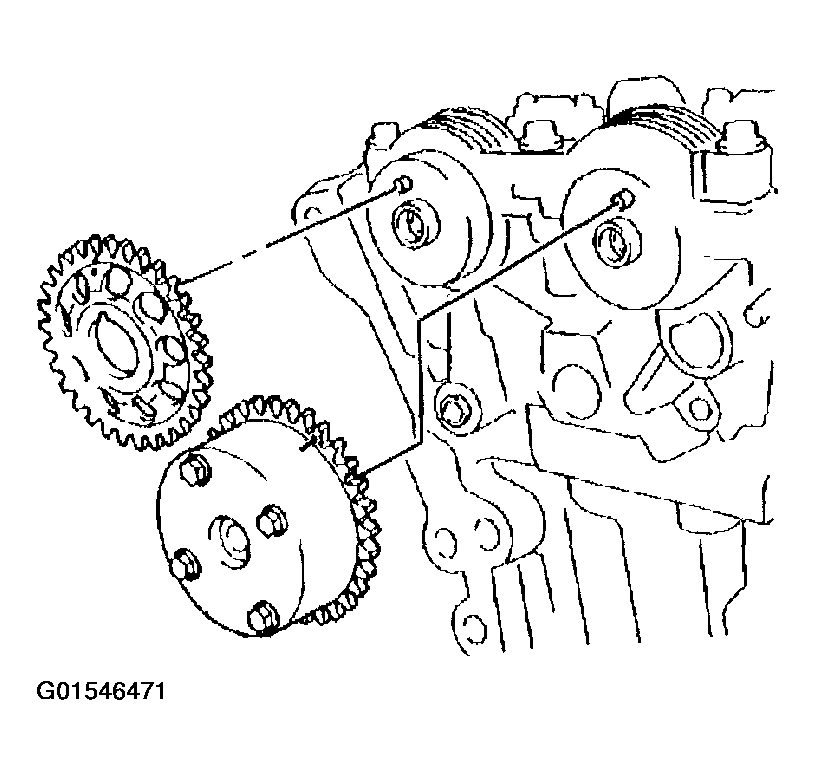

    Fig 2: Removing Camshaft Sprocket
    G01546471Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft timing gear and camshaft bearing cap.
  4. Remove the intake camshaft bearing cap bolts in sequence. Starting at the ends and working toward the center of the camshaft.
  5. Remove the front camshaft bearing cap (5).
  6. Remove the intake camshaft from the cylinder head.

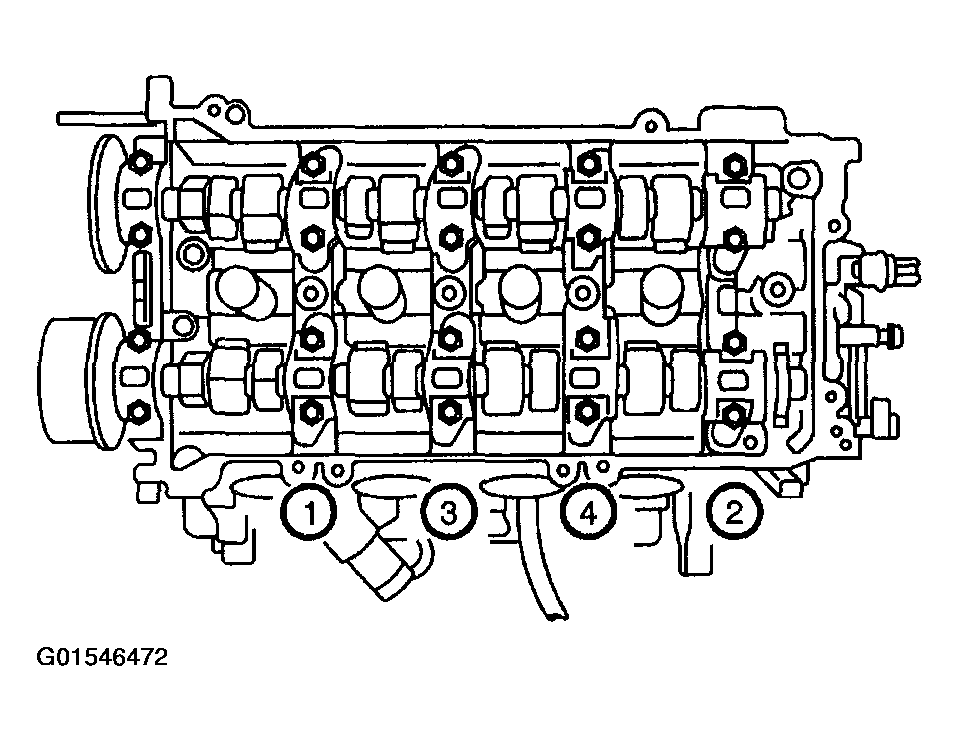

    Fig 3: Identifying Camshaft Bearing Cap Bolt Removal Sequence
    G01546472Courtesy of GENERAL MOTORS CORP.
