Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust camshaft sprocket bolt.

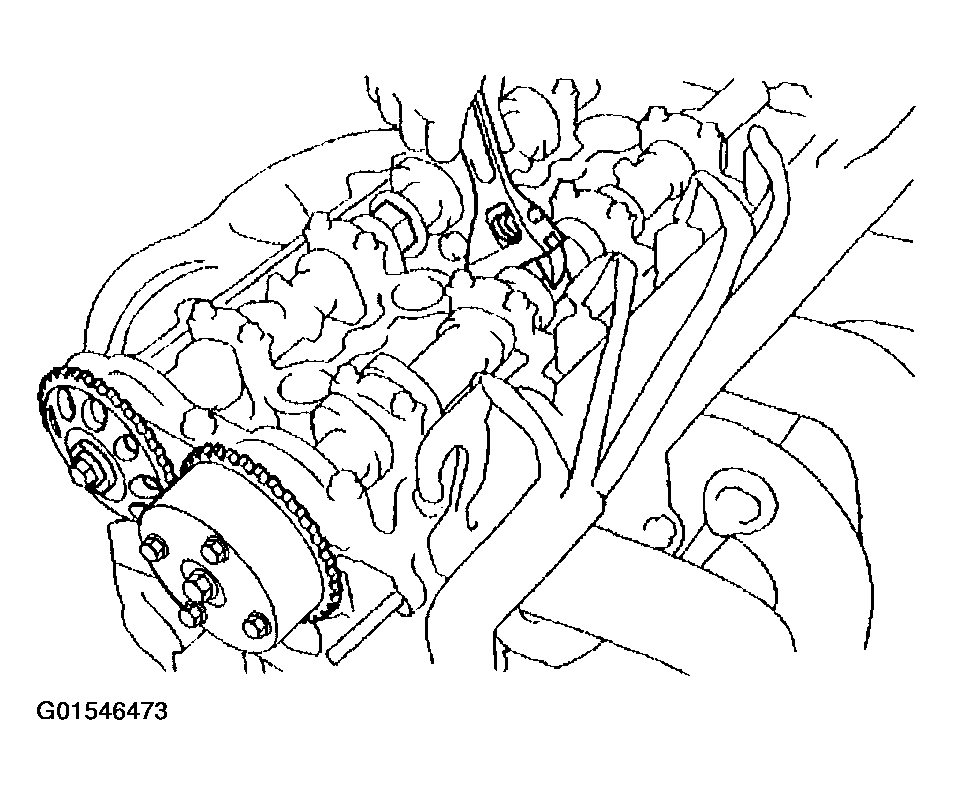

    Fig 1: Removing Exhaust Camshaft Sprocket Bolt
    G01546473Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft sprocket.

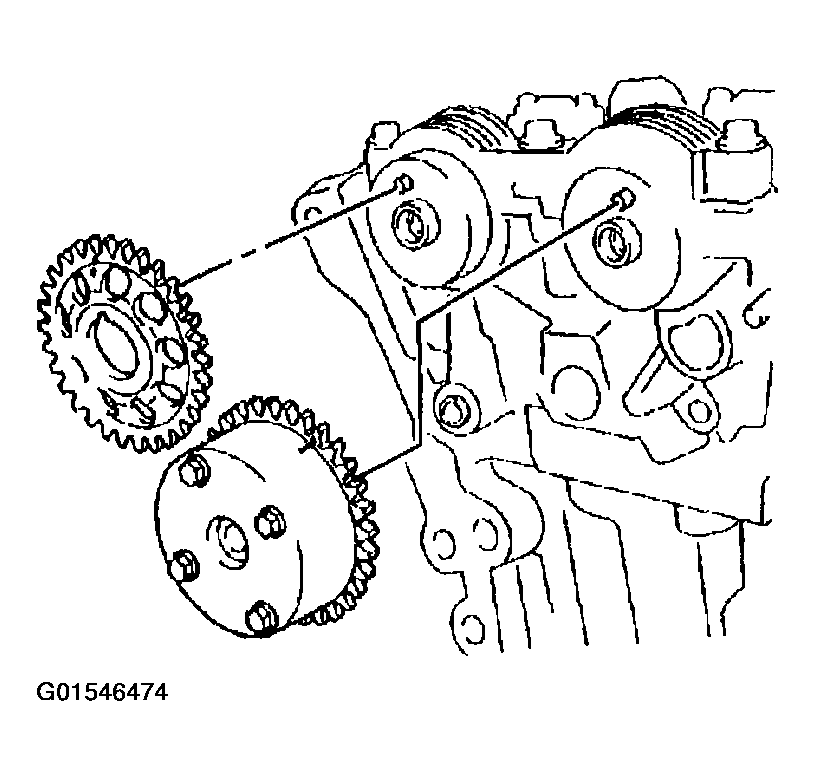

    Fig 2: Removing Camshaft Sprocket
    G01546474Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft timing gear and camshaft bearing cap No.1
  4. Remove the exhaust camshaft bearing cap bolts in sequence. Starting at the ends and working toward the center of the camshaft.
  5. Remove the front camshaft bearing cap (5).
  6. Remove the exhaust camshaft from the cylinder head.

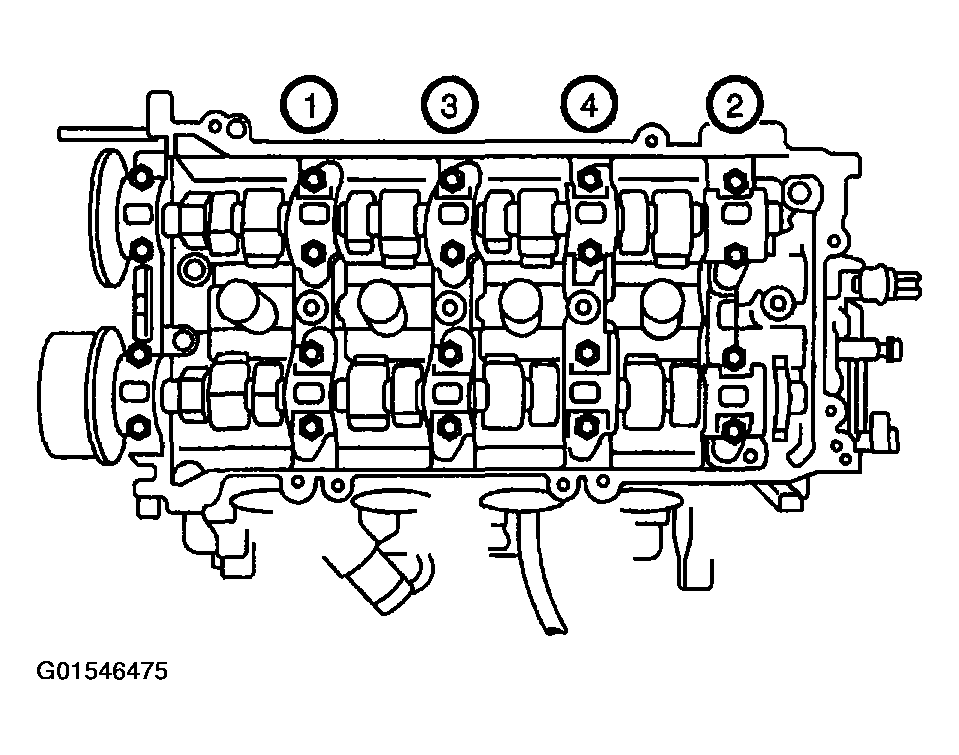

    Fig 3: Identifying Camshaft Bearing Cap Bolt Removal Sequence
    G01546475Courtesy of GENERAL MOTORS CORP.
