Camshaft Installation - Intake

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the intake camshaft onto the cylinder head with the number 1 cam lobes facing as shown.

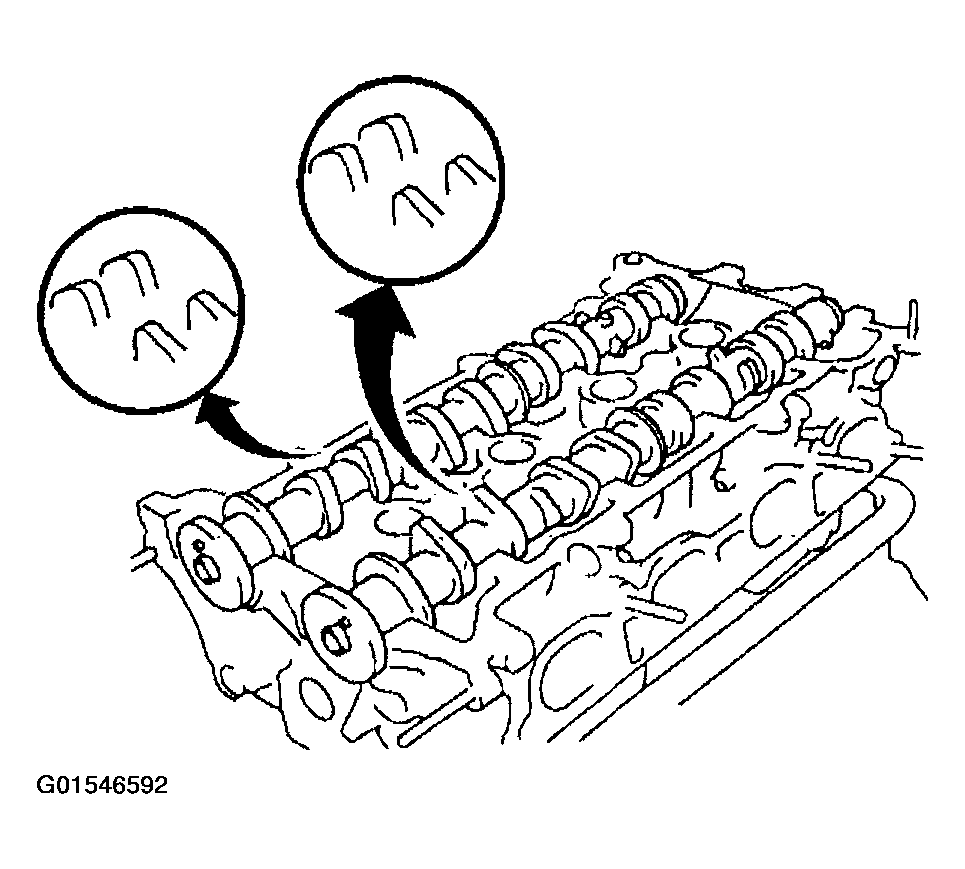

Fig 1: Installing Intake Camshaft
Courtesy of GENERAL MOTORS CORP.

Important: Each bearing cap has a number and a directional arrow marked on the bearing cap.
Install the camshaft bearing caps in their proper locations with the arrows facing forward.
NOTE: Refer to FASTENER NOTICE .
Install the camshaft bearing cap bolts.
Tighten

Tighten the camshaft bearing cap bolts in the sequence shown to 19 N.m (14 Ib. ft).

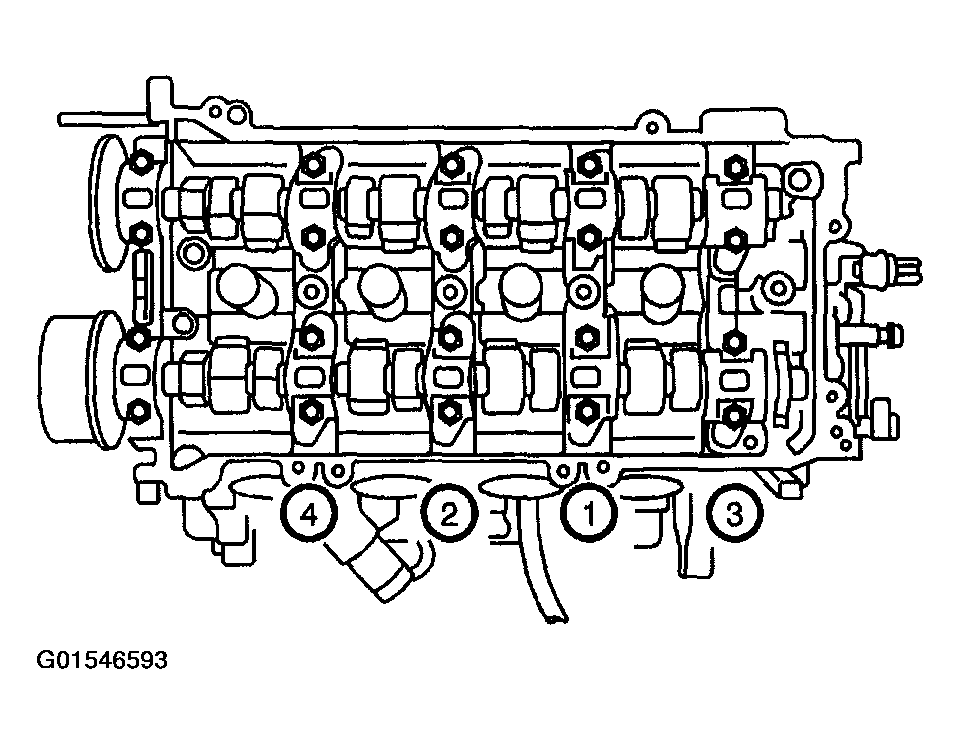

Fig 2: Identifying Camshaft Bearing Cap Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
Install the camshaft timing gear and camshaft bearing cap.
Tighten

Tighten the camshaft timing gear and bearing cap bolts to 19 N.m (14 Ib. ft).
Install the intake camshaft sprocket to the camshaft.
Install the intake camshaft sprocket bolt to the camshaft.
Tighten

Tighten the cam sprocket bolt to 54 N.m (40 Ib. ft).

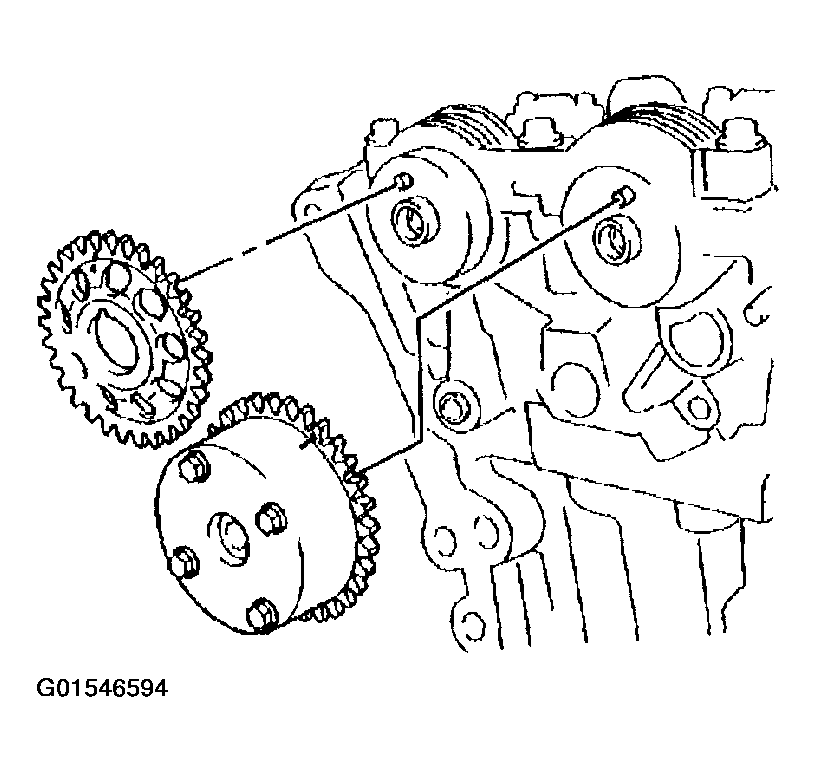

Fig 3: Installing Camshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
